Siemens sn26m230gb 21 dishwasher heating element error — home · e09

Use only checks that match the exact appliance or system and its official guide.

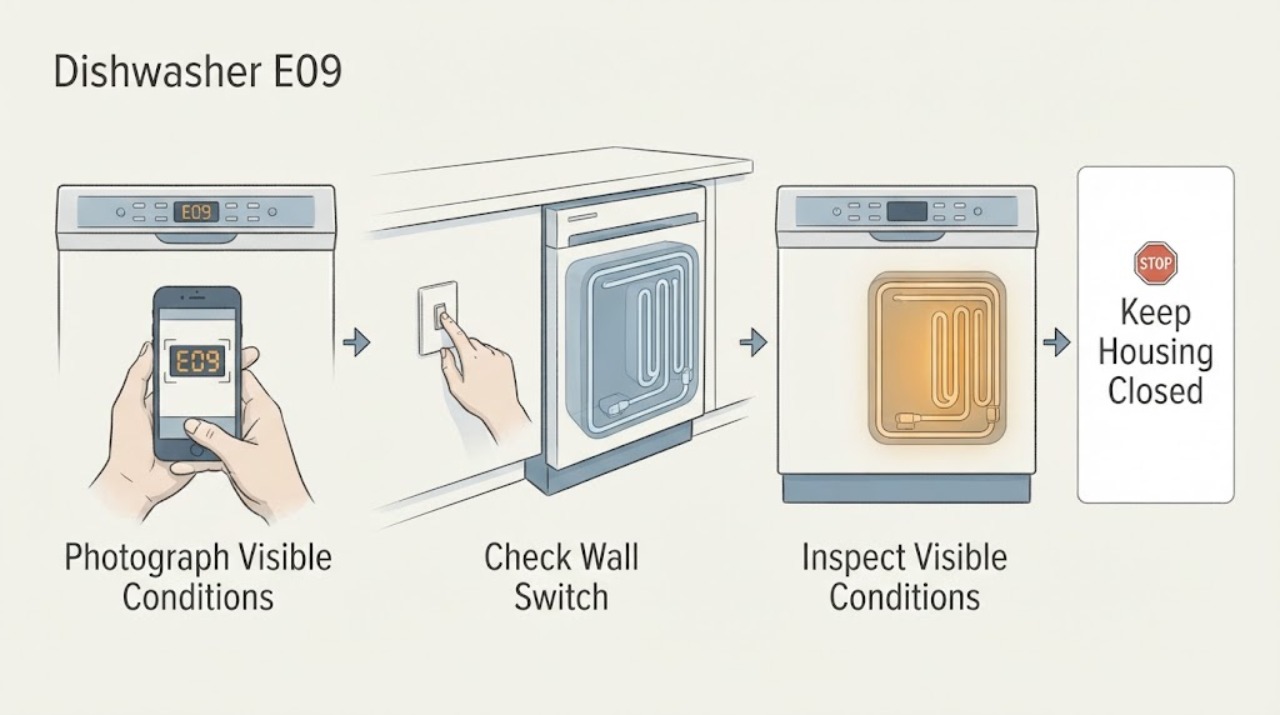

1. Check 1

   Photograph the display and write down the complete E-Nr from the rating plate, including /21. Record whether it is E09, F09, 09, or another code, and note the programme and stage when it appeared (for example, filling, washing, heating or draining).

   Expected result: The display is exactly E09 on SN26M230GB/21, has an extra character, or differs from E09; the stage and any preceding event such as an RCD trip can also be recorded.

   Next step: Keep the photograph and notes for service. If the model suffix or display cannot be confirmed, stop at identification and use the matching Siemens manual rather than guessing from a similar code.

   Stop if: Do not open panels or enter a diagnostic/service mode to obtain more information.

   Why this matters

   Why: The exact support record confirms E09 is a listed code for SN26M230GB/21, but code identity alone does not identify a heater, heat pump, sensor or control fault. A different display must not be mapped from another Siemens platform.

2. Check 2

   Stop the programme, close the dishwasher's water tap and switch the appliance off using its normal control. Disconnect the plug only if it is safely accessible and the local installation permits it; otherwise leave isolation to a qualified person.

   Expected result: The dishwasher is now off with the tap closed, or there is a leak, water at the base, a repeated RCD trip, burning smell, smoke, exposed wiring or unusual heat.

   Next step: Leave the dishwasher unused and arrange qualified appliance service. For smoke or fire, leave the area and use local emergency procedures; do not touch wet electrical equipment.

   Stop if: Do not reset the breaker to run another cycle, repeatedly power-cycle the dishwasher, or test live terminals.

   Why this matters

   Why: Siemens specifically advises closing the tap and switching off for E09/F09 because it is not a home-resolution fault. A leak or electrical warning raises the urgency and is not a reason to restart the machine.

3. Check 3

   With the dishwasher stopped, cool and isolated, make only the manual-approved external checks: confirm the visible water tap is open when service instructions require it, look for a kink in the visible inlet hose, and inspect the user-accessible filter system for obvious soiling without forcing covers or disconnecting hoses.

   Expected result: A tap is closed, a hose is visibly kinked, the accessible filters are soiled, or the visible supply and filter path is normal.

   Next step: Record what was found and give it to the service technician. Do not run a verification cycle for E09, remove the base or pump/heat-pump assembly, or handle an AquaStop housing.

   Stop if: Stop immediately if a hose connection leaks, the filter cannot be removed as described by the exact manual, or reaching the part would require moving or tilting the dishwasher.

   Why this matters

   Why: These observations can explain a separate filling or drainage symptom, but a clear supply or filter path does not clear E09 and does not prove that a heater is bad. The exact manual warns that the water-connection housing can contain an electric valve and that repairs belong to technicians.

4. Check 4

   Prepare the service handoff without selecting a replacement part: provide SN26M230GB/21, the full display and photograph, programme/stage, whether the unit had recently tripped an RCD or lost power, water or filter observations, and any leak, smell or noise.

   Expected result: The code is repeatable, the machine stopped during a heating-related stage, or the code appeared once after a power event and has not been safely retested.

   Next step: Request model-specific Siemens or qualified appliance service and ask the technician to verify the fault and fitment from the E-Nr before any part is ordered.

   Stop if: Do not order or install a heater, heat pump, sensor or control board from E09 alone.

   Why this matters

   Why: This history helps the technician distinguish a repeatable fault from a transient interruption without treating the user's label 'heating element error' as a confirmed component diagnosis.
