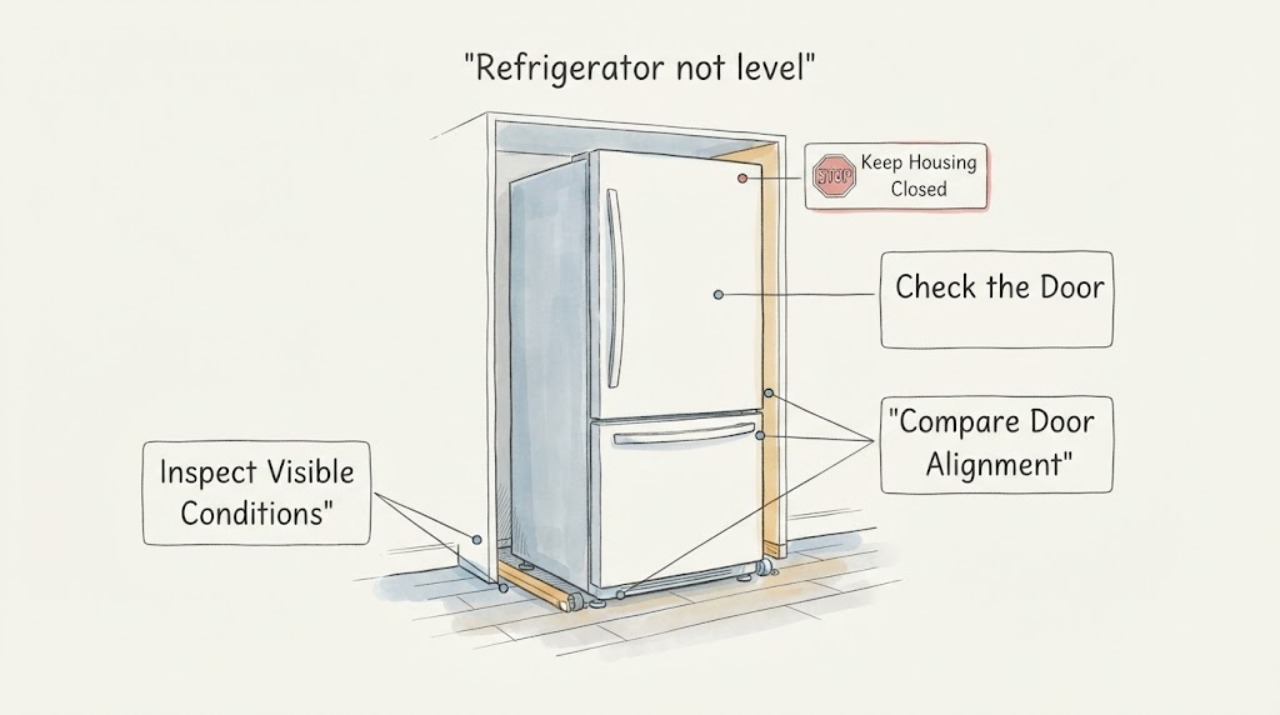

How to Level a Thermador Bottom-Freezer Refrigerator Safely

Use only checks that match the exact appliance or system and its official guide.

1. Check 1

   Stop and check stability before opening drawers or making an adjustment. Look for rocking, a cabinet leaning into the opening, a door or custom panel rubbing, a stressed water line, a damaged floor, or a gap that could let the appliance move.

   Expected result: The refrigerator is stable and accessible, or it rocks, binds in the enclosure, has a damaged support surface, or would need to be pulled out.

   Next step: If it is unstable or trapped by cabinetry or panels, stop and arrange a qualified installer or Thermador service visit. Do not lean the loaded refrigerator or pull a built-in unit forward to reach hidden hardware.

   Stop if: Do not place hands under the cabinet, remove custom panels, disconnect water tubing, or use temporary objects as a structural support while the refrigerator is loaded.

   Why this matters

   Why: A stable appliance permits a limited measurement. Movement, binding, or a compromised support can make a foot adjustment unsafe and can damage the cabinet, panels, floor, or water connection.

2. Check 2

   Place a spirit level on the accessible top frame or another location specified by the exact installation guide and check left to right. Keep doors and drawers supported normally while you read the level.

   Expected result: The bubble is centered side to side, or the cabinet is visibly tilted and the leveling hardware is not safely accessible.

   Next step: If it is not level and the model guide exposes the leveling bolts safely, follow that guide's adjustment sequence. Otherwise stop and use qualified installation service.

   Stop if: Do not use the door panel, handle, or a countertop as a lever, and do not loosen hinge or panel fasteners during this measurement.

   Why this matters

   Why: The reviewed Thermador installation instructions make left-to-right leveling a separate check. A side-to-side tilt can create an apparent door-height problem even when the door hinge itself is not the cause.

3. Check 3

   Check front-to-back level using the shelf or shelves shown in the exact installation instructions. Compare the measurement with the enclosure and floor condition rather than judging the door gap alone.

   Expected result: The refrigerator is level front to back, or it slopes and the floor or support cannot be confirmed as flat and rigid.

   Next step: If the support is sound and the model guide permits adjustment, correct the leveling legs in the documented sequence. If the support, cutout, or cabinetry is out of square, arrange an installer or building professional rather than shimming at random.

   Stop if: Do not drill, cut cabinetry, remove flooring, or insert loose shims under a loaded built-in refrigerator as a substitute for correcting the support.

   Why this matters

   Why: Thermador's planning guidance says the supporting substructure must be flat, level, and hard or rigid. A floor or cutout problem can make a foot adjustment temporary or place uneven load on the appliance.

4. Check 4

   If the exact model instructions identify accessible leveling legs, adjust only those legs as documented and confirm that the appliance weight is supported by the legs. On the reviewed Thermador installation, rollers are for moving and all four leveling legs must contact the floor for support and stability.

   Expected result: All four legs contact the floor and the rollers are no longer carrying the permanent load, or a leg cannot be reached, turns excessively, or the cabinet begins to bind.

   Next step: Stop if the legs cannot be adjusted without moving the unit, exceeding the model's documented limit, or risking panel, floor, or water-line damage. Arrange qualified service and provide the model and measurement results.

   Stop if: Do not exceed a torque or adjustment limit from the exact manual, lift the appliance with improvised equipment, or leave it supported only by rollers.

   Why this matters

   Why: Leg contact is a support and stability result, not merely a cosmetic alignment result. A blocked or damaged mechanism may indicate an installation problem or a part that needs professional assessment.

5. Check 5

   After the cabinet is level, inspect door and drawer operation without forcing them. Check whether the doors close and seal normally, whether the freezer drawer tracks remain clear, and whether the visible gap is even.

   Expected result: The doors close normally after leveling, or a door remains uneven, rubs, will not close, or the seal is not contacting evenly.

   Next step: Use the exact model guide for any permitted door-height adjustment. If the door, hinge, panel, or seal is damaged or the gap remains uneven, stop forcing it and arrange Thermador or qualified installation service.

   Stop if: Do not remove hinges, loosen multiple hinge screws, lift a loaded door, or alter custom panels without the exact model instructions and appropriate professional support.

   Why this matters

   Why: A remaining door issue after the cabinet is level may need the model's separate door-height or hinge procedure. It does not prove that the refrigerator cabinet should be tilted to compensate.

6. Check 6

   Record the complete E-Nr. or model, the level readings, door or drawer symptoms, floor or enclosure condition, and any recent move or installation before contacting service.

   Expected result: The issue is repeatable and safe to describe, or the refrigerator cannot be checked without moving a built-in unit or disturbing a water or electrical connection.

   Next step: Use Thermador owner support to locate the exact manual or servicer. Keep the refrigerator supported and avoid further adjustment when the installation is inaccessible or unstable.

   Stop if: Do not open the sealed system, access energized wiring, disconnect a water line, or continue using an unstable appliance.

   Why this matters

   Why: The record separates a leveling or installation problem from a cooling, door, water, or electrical fault and gives the technician the information needed to select the correct documents.
