Start here
Quick answer
If the Blomberg DWT56502 FBI fills and drains but both spray arms remain silent and dry, do not order a pump or open the dishwasher cabinet from the symptom alone. With power disconnected, check that the arms can move freely, filters are seated and clean, and dishes or racks are not blocking the arms. Blomberg’s official dishwasher guidance recommends those external checks and directs owners to the use-and-care manual for cleaning. If both arms still do not spray after those checks, the circulation fault is not identified by the symptom; stop repeated tests and arrange model-matched Blomberg service. Stop immediately for a leak, burning smell, damaged cord, or breaker trip.
Work through in order
Diagnostic checks
Use only checks that match the exact appliance or system and its official guide.
-
Check 1
Confirm the rating-label identity as Blomberg DWT56502 FBI and use Blomberg’s User Manuals page to open the matching regional use-and-care or service instructions before trying a control sequence.
Expected result: The exact model document is available, or the label/document does not match DWT56502 FBI.
Next step: Continue only with the matching DWT56502 FBI instructions. If the model or regional manual cannot be matched, stop at visible checks and arrange model-matched service.
Why this matters
Why: The manual establishes the correct arm, filter, rack, and safety instructions; a different model can use different circulation hardware and procedures.
-
Check 2
Switch the dishwasher off, disconnect power using the accessible plug or circuit isolation, and let the tub stop. Remove only the racks or visible components the exact manual identifies as user-removable; check that the lower and upper spray arms can rotate freely by hand without forcing them.
Expected result: An arm is blocked by a dish/rack, catches on debris, or rotates freely; do not reach into wiring or the sump.
Next step: Rearrange the load or remove only the visible obstruction as the manual permits. If both arms move freely, continue to the filter and seating check rather than replacing a pump.
Why this matters
Why: A blocked or seized visible arm can prevent spray distribution, while free movement does not prove that wash water is being pressurized.
-
Check 3
With power still disconnected, clean the visible spray-arm openings and filters exactly as the DWT56502 FBI manual directs, then verify every filter and arm is seated in its intended position and no rack or tall item blocks an arm.
Expected result: The filters or arm openings contain residue, a filter/arm is not seated, or the visible path is clean and correctly assembled.
Next step: Correct only the visible condition and reassemble per the manual. Do not enlarge jets, add lubricant, remove the sump, or replace a part from this observation alone.
Why this matters
Why: Residue, incorrect seating, or overload can reduce or redirect spray; a clean and correctly seated path makes a simple obstruction less likely but does not diagnose the circulation system.
-
Check 4
After the manual-approved visible checks are complete, run one short model-appropriate cycle while listening from outside the closed door; do not run the appliance with panels removed.
Expected result: The dishwasher fills and a normal circulation sound/spray pattern returns, one arm remains inactive, or both arms remain silent/dry before draining.
Next step: If both arms remain dry/silent, stop repeated cycles and book Blomberg-qualified service with the model, cycle, and observations. If a leak, burning smell, damaged cord, or breaker trip occurs, stop immediately and isolate power only if safe.
Why this matters
Why: A recovered spray pattern supports a resolved obstruction or seating issue; one-arm or both-arm failure after filling requires model-specific interpretation, and silence does not identify a particular pump or control part.
Use your observations
Decision map
Find the observation that best matches what you see, then follow the next safe action.
-
PATH 01Next step
What you see
An arm was blocked by cookware/rack position or visible debris, and it rotates freely after the load or obstruction is corrected.
Do this next
Run one short model-appropriate cycle. If both arms spray normally, keep the load below the arm path and follow the manual’s cleaning interval.
Why this path and its safety boundary
Why it matters: The no-spray symptom can be explained by a visible distribution obstruction; this does not prove the pump or motor was faulty.
-
PATH 02Next step
What you see
Filters or spray-arm openings were dirty or a filter/arm was not seated, but both arms remain silent and dry after correct cleaning and reassembly.
Do this next
Stop repeating cycles and arrange model-matched Blomberg service. Do not remove the base, test live wiring, or order a circulation pump from the symptom alone.
Why this path and its safety boundary
Why it matters: The visible care path did not restore circulation; a deeper circulation issue remains possible but no component is confirmed.
-
PATH 03Next step
What you see
One arm moves or sprays while the other remains inactive after the matching manual checks.
Do this next
Check only the visible arm seating, rack obstruction, and model-manual guidance; if the arm remains inactive, request service for the DWT56502 FBI.
Why this path and its safety boundary
Why it matters: The result indicates an arm-specific distribution or connection question, but it does not establish a failed valve, tube, pump, or control.
-
PATH 04Next step
What you see
A leak, burning odor, damaged cord, smoke, or repeated breaker trip occurs during or after the test.
Do this next
Stop using the dishwasher. Keep clear of water and electrical parts, isolate power only if it can be done safely, and arrange qualified service.
Why this path and its safety boundary
Why it matters: This is an electrical or water-safety stop condition, not a routine spray-arm adjustment.
Helpful context
Understand the symptom
Start with the two spray arms and the filters

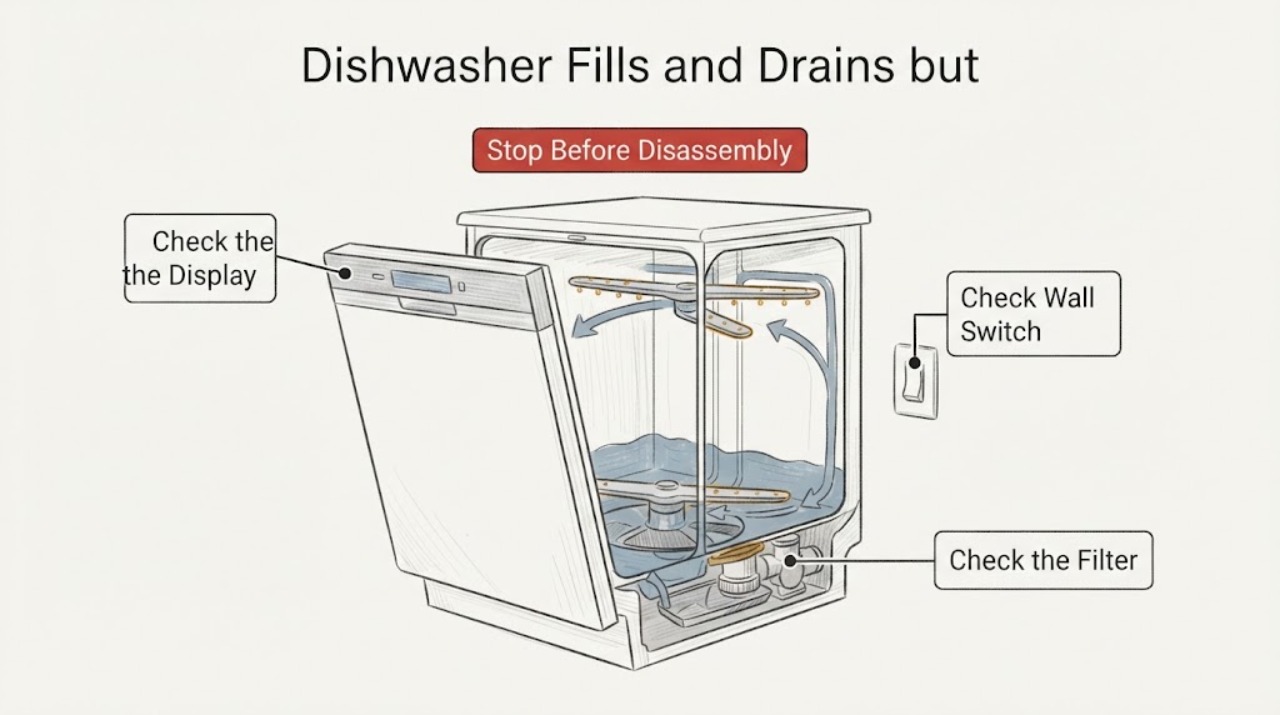

Blomberg’s official FAQ treats poor cleaning as an external setup and care question first: the spray arms should move freely, filters should be cleaned and seated correctly, racks should not be overloaded, and the arms should be cleaned as described in the manual. Because this report says both arms are not spraying, inspect the shared visible path with the dishwasher disconnected before assuming a pump, motor, or control failure.
Keep the check specific to the DWT56502 FBI manual
Blomberg’s official User Manuals page asks for the product name or model number and routes the owner to the matching document. Use DWT56502 FBI exactly, including the regional suffix if the label has one. Do not borrow a spray-arm, filter, diagnostic, or reset procedure from another Blomberg series or another dishwasher brand.
Both arms dry after filling points to service, not a confirmed part
If the dishwasher fills and later drains but neither arm moves or makes a circulation sound after the visible checks, that pattern narrows the problem to the wash-water circulation path without proving which component failed. A circulation pump, wiring, control, sump obstruction, or another model-specific condition would require inspection beyond the user checks supported here. Do not run repeated long cycles or dismantle the base to identify a part.
When checks do not resolve it
Need a professional?
Arrange Blomberg-qualified service when both arms remain silent or dry after the model-matched visible checks, when an arm remains inactive despite correct seating and a clear rack path, or when diagnosis would require removing the dishwasher base, accessing wiring, testing live voltage, opening the sump, or replacing a circulation component. Stop immediately for a leak, burning odor, smoke, damaged cord, or breaker trip.
Common questions
FAQ
If the dishwasher fills and drains, is the circulation pump definitely bad?
No. The symptom does not identify a pump, motor, wiring, control, or sump condition. First perform only the model-matched visible arm, filter, seating, and load checks. Persistent silence or dry arms should be assessed by service.
Can I run the dishwasher with the lower panel removed to watch the pump?
No. Do not run it with panels removed or test live wiring as a user repair. If the visible checks do not restore spray, arrange qualified service for the exact DWT56502 FBI.
What visible checks does Blomberg recommend for poor cleaning?
Blomberg says to check that spray arms move freely, clean the filters and spray arms as described in the manual, make sure filters are placed properly, and avoid overloading the racks.
Read the exact guide
Official sources
- FAQBlomberg Appliances · Official Blomberg FAQ used for visible dishwasher checks: free spray-arm movement, filter placement/cleaning, spray-arm cleaning, and rack loading. It does not define a DWT56502 FBI circulation-pump fault.
- User ManualsBlomberg Appliances · Official Blomberg manual lookup used to require matching the exact product name/model and regional manual before using model-specific controls, cleaning, or service steps; the dynamic page does not expose the DWT56502 FBI manual body in the opened view.
