Quick answer
Sub-Zero identifies model 685 as a 600 Series refrigerator. On that series, EC05 means repeatedly erratic refrigerator temperatures, EC24 means defrost underheat, and EC50 means excessive refrigerator compressor run. Because the refrigerator is not maintaining temperature, treat the displayed temperature as the priority: Sub-Zero says food storage above 45°F is unsafe. Keep the doors closed, move perishable food to a safe refrigerator or cooler if the temperature is unsafe, check only the door closure and accessible condenser airflow, and arrange Factory Certified Service for high temperatures or recurring codes. Do not infer a compressor, evaporator, fan, thermistor, heater, or sealed-system failure from the code combination or photos alone.
Work through in order
Diagnostic checks
Use only checks that match the exact appliance or system and its official guide.
-
Check 1
Measure and record the refrigerator temperature with a reliable appliance thermometer if available, then minimize door opening. If the compartment is above 45°F, move perishable food to a safe refrigerator or properly iced cooler and do not use questionable food based only on appearance.
Expected result: The measured temperature is above 45°F, near the 38°F target, or unknown while the display shows EC05/EC24/EC50.
Next step: For high or rising temperature, keep the doors closed and arrange Factory Certified Service. Give the technician the measured temperature, time, and codes.
Stop if: Do not leave perishable food in the unit while waiting for a reset or a 24-hour recovery period.
Why this matters
Why: Sub-Zero states that food storage above 45°F is unsafe. A warm reading makes the code combination an active cooling problem rather than a display-only issue; an unknown reading still requires conservative handling.
-
Check 2
Photograph the display and rating plate, and record the full model suffix, serial number, each code exactly as shown, compartment temperatures, and whether the refrigerator or freezer is affected. Do not substitute an EC code from a different Sub-Zero series.
Expected result: The rating plate confirms a 685 600 Series unit, or the suffix/serial and display format are unclear.
Next step: If the identity is unclear, resolve it with Sub-Zero Customer Care or service before using any other series' code instructions. If confirmed, use the 600 Series meanings in this article and retain the code record.
Stop if: Do not apply 700, PRO, wine-storage, Wolf, or unrelated EC24/EC50 guidance to the 685.
Why this matters
Why: Sub-Zero lists 685 within the 600 Series, but model suffix and serial details help service match the correct controls and history. Similar EC numbers have different meanings on other Sub-Zero product families.
-
Check 3

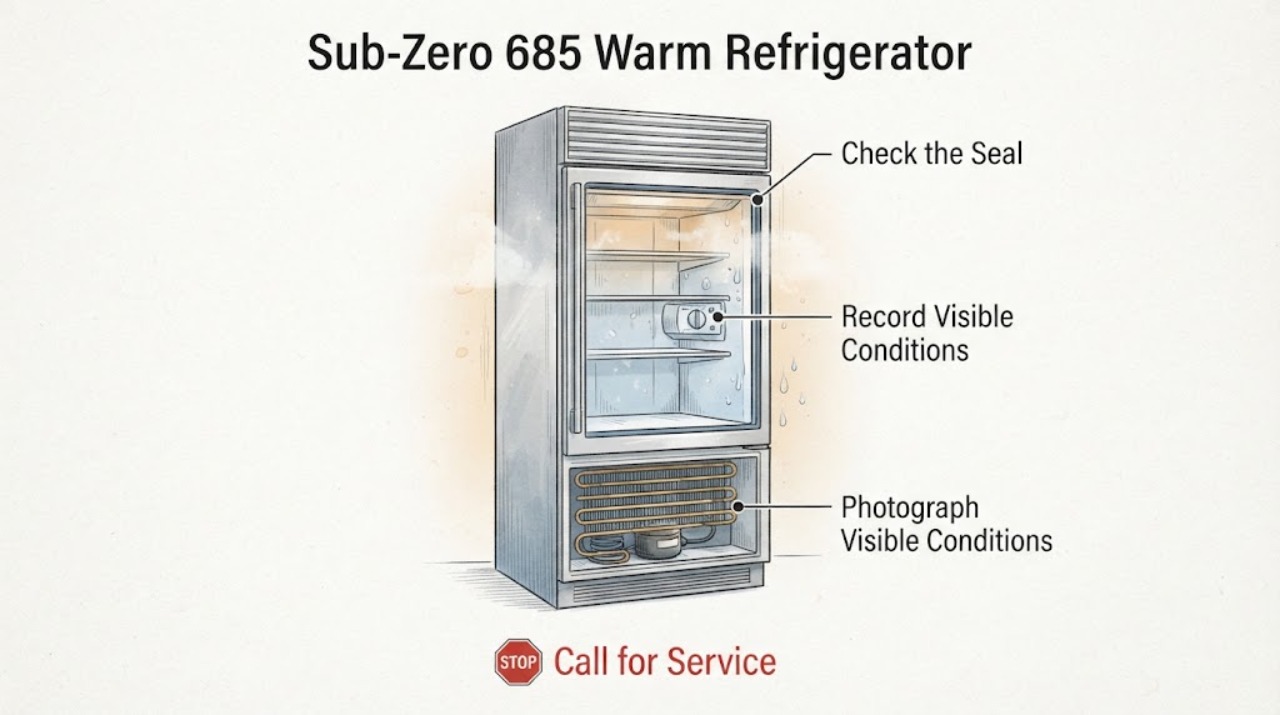

Without removing panels or entering the sealed system, verify that both doors close fully, no food or container blocks the gasket, the gasket has no obvious tear, and the accessible condenser area is not visibly clogged. Avoid repeated door opening while checking.
Expected result: A door was left ajar, the gasket is damaged, airflow is blocked, or no external issue is visible.
Next step: Correct only an obvious door/food obstruction or clean the accessible condenser according to the 600 Series guide. If temperatures are high, do not wait for cleaning to recover the unit; call Factory Certified Service.
Stop if: Do not pull out the built-in unit, open the cabinet, disconnect refrigerant lines, or remove electrical/refrigeration panels.
Why this matters
Why: Sub-Zero lists door closure, gasket condition, condenser cleanliness, food loading, and recent warm food as external contributors to warm temperatures. A clean exterior does not rule out a defrost, control, fan, compressor, or sealed-system problem.
-
Check 4
Use the code and temperature together: EC05 has no customer troubleshooting on Sub-Zero's 600/700 reference; EC24 permits the condenser check and a 15-second door-ajar-key clear only when temperatures are near normal; EC50 allows the same conditional 600 Series path.
Expected result: Temperatures are high/rising, or temperatures are near normal after the external checks.
Next step: For high/rising temperatures or EC05, contact Factory Certified Service with the code and current temperatures. For near-normal temperatures, follow only the 600 Series manual for condenser care and the applicable code-clear instruction, then stop if the code or Service light returns.
Stop if: Do not clear EC24 or EC50 while temperatures are high, and do not repeatedly reset to suppress a recurring code.
Why this matters
Why: High or rising temperatures require service and make a reset inappropriate. Near-normal temperatures permit the limited official conditional check, but a returning code still needs service; the code does not identify a replaceable part.
Use your observations
Decision map
Find the observation that best matches what you see, then follow the next safe action.
-
PATH 01Next step
What you see
The refrigerator compartment measures above 45°F or food has been warm for an uncertain period.
Do this next
Move perishables to safe cold storage, keep the refrigerator closed, and arrange service; do not use a reset as a food-safety decision.
Why this path and its safety boundary
Why it matters: Sub-Zero identifies above 45°F as unsafe for food storage, regardless of whether the display code later clears.
-
PATH 02Next step
What you see
EC05 is present, or EC24/EC50 is present while temperatures are high or rising.
Do this next
Contact Factory Certified Service and provide the exact code(s), current temperatures, model 685 suffix, serial number, and timing.
Why this path and its safety boundary
Why it matters: The 600 Series guidance directs service for EC05 and for EC24/EC50 when temperatures are high; the codes are not a user-level component diagnosis.
-
PATH 03Next step
What you see
EC24 or EC50 is displayed while temperatures are near normal and the condenser or door closure has an obvious external issue.
Do this next
Correct the obvious external condition using the 600 Series instructions, allow the unit to stabilize, and call service if the code/Service light returns or temperature rises.
Why this path and its safety boundary
Why it matters: The official 600 Series path allows the limited external correction and conditional code clear in this temperature state, but it does not prove the original condition is resolved.
-
PATH 04Next step
What you see
The refrigerator has been opened frequently or exposed to warm weather, but doors close, the condenser is clean, and temperatures do not recover.
Do this next
Keep the doors closed and schedule Factory Certified Service; do not infer a leak, compressor, evaporator, fan, or defrost-part failure.
Why this path and its safety boundary
Why it matters: Door opening and ambient heat can affect temperatures, but persistent warm conditions after external checks need expert diagnosis.
Helpful context
Understand the symptom
The code combination is a service clue, not a component diagnosis. EC05 reports erratic temperature readings; EC24 reports defrost underheat; EC50 reports excessive compressor run. Several conditions can lead to poor cooling, and the official 600 Series guidance routes high temperatures or unresolved codes to Factory Certified Service.
Frequent door opening and warm room conditions can temporarily raise cabinet temperature, but they do not prove that the codes are harmless. Sub-Zero advises checking door closure, gasket condition, condenser cleanliness, and whether the unit is overloaded or recently loaded, then seeking service when temperatures remain high.
Do not diagnose a sealed-system leak, compressor failure, defrost heater, evaporator fan, or thermistor from the code names or an ice pattern. Those parts require model-specific service diagnosis, and food safety takes priority over trying repeated resets.
When checks do not resolve it
Need a professional?
Arrange Factory Certified Service with the model 685 suffix, serial number, exact codes, current compartment temperatures, and door/ambient conditions. High temperatures and a recurring code should be treated as service-required.
Common questions
FAQ
What does EC05 mean on a Sub-Zero 685?
Sub-Zero's 600/700 Series reference defines EC05 as repeatedly erratic refrigerator temperatures and provides no customer troubleshooting. Record the code and current temperatures and contact Factory Certified Service.
What do EC24 and EC50 mean on a 600 Series Sub-Zero?
The 600 Series pages define EC24 as defrost underheat and EC50 as excessive refrigerator compressor run. If temperatures are high, the official guidance is service; the limited condenser and code-clear path is conditional on near-normal temperatures.
Can frequent door opening or warm weather explain the codes?
Frequent opening, warm food, humidity, and room temperature can raise temperatures temporarily. They do not prove the codes are harmless; if the temperature remains high or the code returns, arrange Factory Certified Service.
Can I clear EC24 or EC50 and keep using the refrigerator?
Only the 600 Series instructions allow their limited code-clear step when temperatures are near normal. Do not clear a code while temperatures are high or rising, and do not use a cleared display as proof that food is safe or a sealed-system fault is fixed.
Read the exact guide
Official sources
- Sub-Zero 600 Series Refrigeration Model TimelineSub-Zero · Opened official timeline explicitly listing 685/F, 685/O, and 685/S as 600 Series models produced from 2004 to 2008.
- Sub-Zero 600 Series Use and Care GuideSub-Zero · Opened official guide page listing models 601, 611, 650, 661, 632, 680, 690, 685, and 695; used to establish family scope, not to infer an unlisted repair component.
- Sub-Zero 600 Series Error Code 50Sub-Zero · Opened official 600 Series page defining EC50 as excessive refrigerator compressor run and distinguishing high from near-normal temperatures.
- Sub-Zero Built-In Refrigeration Use & Care InformationSub-Zero · Opened official 600 Series owner PDF showing model 685, its electronic control panel, and the built-in family controls; used to bind the assigned model to the separately opened 600 Series EC05, EC24, and EC50 pages, not to invent a code definition from the manual.
- Sub-Zero 600 Or 700 Series Error Code EC 05 Or EC 06Sub-Zero · Opened official 600/700 Series code page; EC05 meaning and no-customer-troubleshooting boundary are applicable to assigned 685 through its 600 Series identity.
- Sub-Zero Model Number KeySub-Zero · Opened official model-number guide explaining that the model number is on the serial tag and that identifiers distinguish product lines/features; used to require exact suffix/serial confirmation.
- Sub-Zero Temperature FluctuationsSub-Zero · Opened official page identifying door opening, humidity, room temperature, condenser, and food load as possible temperature influences, with service escalation for persistent extreme fluctuation.
- Sub Zero Warm Refrigerator TroubleshootingSub-Zero · Opened official warm-refrigerator guide; checks door closure, gasket, condenser, loading, ambient effects, and service escalation without authorizing sealed-system repair.
- Sub-Zero Refrigerator and Freezer Temperature SettingsSub-Zero · Opened official temperature guidance stating 38°F refrigerator target and that storing food above 45°F is unsafe; used for food-safety handling, not error-code diagnosis.
- Sub-Zero 600 Series Error Code 24Sub-Zero · Opened official 600 Series page defining EC24 as defrost underheat and limiting cleaning/code-clear guidance to near-normal temperatures.
