Start here
Quick answer

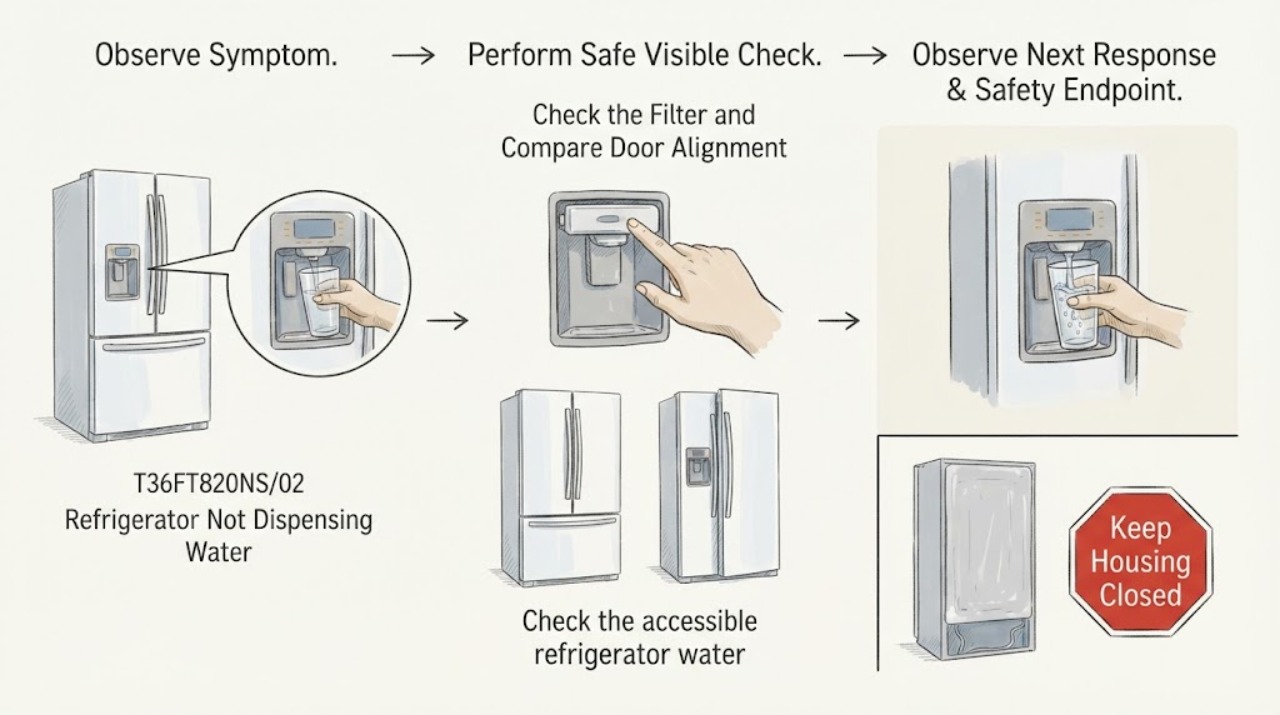

For the Thermador T36FT820NS/02, start with the user-level water path: confirm the control is responding and the dispenser is selected, verify the filter is fully installed and aligned, check that the external shut-off valve is fully open, and inspect the accessible supply line for kinks. Thermador lists an old or clogged filter, incomplete filter installation, a closed valve and a kinked line as water-dispenser causes. Do not infer a failed valve or remove panels; if the external checks do not restore flow, keep the refrigerator in service only for safe food storage and arrange Thermador service.
Before you begin
Safety first
- Do not remove panels or doors, disconnect internal water tubing, probe a valve, bypass controls or order a part by appearance. Shut off the water before any external line correction.
Work through in order
Diagnostic checks
Use only checks that match the exact appliance or system and its official guide.
-
Check 1
Confirm the rating-label model reads T36FT820NS/02 and use the exact owner manual linked from Thermador. With the refrigerator powered normally, check that the dispenser controls respond, the water function is selected and no lock or filter alert is preventing a dispense request; do not borrow a reset sequence from another model.
Expected result: The model differs, the controls do not respond, a lock/alert remains, or the controls respond but no water flows.
Next step: Correct the model/manual match or clear only the state covered by the exact manual. If the controls respond and water is still absent, continue to filter and supply checks.
Why this matters
Why: A different model or unresolved control state changes which manual and user steps apply. If the controls respond but no water flows, continue with the water path rather than diagnosing an internal valve.
-
Check 2
Inspect the installed water filter from its normal user access. Confirm it is the filter selected for this refrigerator, fully inserted/rotated and seated with the cap alignment marks matching the compartment. Do not force a filter that will not fit and do not order one by appearance.
Expected result: The filter is loose, not fully rotated, misaligned, overdue/clogged, or correctly seated and the dispenser remains dry.
Next step: If the filter is due or clogged, replace it only with the exact model-compatible filter identified by Thermador and follow the official installation instructions. If it is correctly seated but flow remains absent, check the external valve and line.
Why this matters
Why: Thermador lists incomplete filter installation and an old or clogged filter as possible causes of little or no dispenser water. Correct seating is a user-level observation; it does not identify a failed internal component.
-
Check 3
Check the accessible refrigerator water shut-off valve and connection line. Confirm the valve is fully open; if the line is visibly kinked, shut off the water supply before carefully restoring its routing. Do not disconnect tubing, open the cabinet or test an internal valve.
Expected result: The shut-off valve was partly closed, the line is kinked/damaged, or the external supply path is open and undamaged.
Next step: Open the valve fully or have a damaged line replaced through qualified service. If the external path is clear and water still does not dispense, stop external troubleshooting and contact Thermador service.
Why this matters
Why: Thermador identifies an incompletely open valve and a kinked connection line as water-dispenser causes. A damaged line needs original manufacturer service/parts; a clear external line does not rule in a dispenser valve fault.
-
Check 4
If the filter is correctly installed, the valve is open and the line is not kinked, record whether the refrigerator makes ice, whether the dispenser is completely dry or only slow, the filter-change date and any display alert. Do not remove panels, disconnect internal tubing or substitute a valve/part.
Expected result: No water flows after the verified external checks, flow is only weak/intermittent, or there is a leak, damaged tubing or an alert that the manual does not resolve.
Next step: Keep the refrigerator connected only if it is safe and not leaking, protect food according to safe temperature practice, and arrange Thermador or qualified appliance service with the exact model and observations.
Why this matters
Why: The remaining possibilities require model-specific pressure, tubing, dispenser or control diagnosis. The official symptom list does not justify naming a failed valve or prescribing an internal repair from this observation alone.
Use your observations
Decision map
Find the observation that best matches what you see, then follow the next safe action.
-
PATH 01Next step
What you see
The filter is not fully seated/aligned, or the filter is old or clogged.
Do this next
Use Thermador's exact filter instructions and model filter finder; if flow remains absent after correct installation, continue only to the external valve/line check.
Why this path and its safety boundary
Why it matters: The filter installation or restriction remains a supported external cause of no water.
-
PATH 02Next step
What you see
The shut-off valve is partly closed or the accessible connection line is kinked.
Do this next
Open the valve or have a damaged line corrected after shutting off the water; do not disconnect internal tubing.
Why this path and its safety boundary
Why it matters: The external supply path can limit or stop dispenser flow without proving an internal component failure.
-
PATH 03Next step
What you see
The filter is seated, the valve is open and the line is clear, but no water dispenses or a leak/damage/ unresolved alert remains.
Do this next
Stop troubleshooting and arrange Thermador service with the exact model, filter history and observed flow condition.
Why this path and its safety boundary
Why it matters: The remaining diagnosis is model-specific and outside safe external checks.
Helpful context
Understand the symptom
Start with the exact model and the external water path
The official Thermador support page identifies T36FT820NS/02 and links its manuals and owner-support resources. Keep the check within that exact model: confirm the panel responds, the water dispenser is the selected function, and any lock indication is cleared only by the exact owner manual. Do not copy a button sequence from another Thermador series.
Filter seating and supply restrictions are the first user checks
Thermador says the filter should be fully rotated and seated with the cap lines aligned, and that an old or clogged filter can restrict water. The same troubleshooting page calls out a closed shut-off valve and kinked connection line. These observations narrow the external water path; they do not prove a valve, board or dispenser assembly failure.
Stop at the service boundary
If the filter is correctly installed, the valve is open and the accessible line is not kinked but the dispenser still produces no water, stop at the external checks. Do not remove the door or cabinet, disconnect internal tubing, or order a valve from a generic parts listing. Give Thermador the exact model, filter history and observations so the next diagnostic step stays model-specific.
When checks do not resolve it
Need a professional?
Arrange Thermador or qualified appliance service if the filter is correctly seated, the shut-off valve is open and the external line is clear but water still does not dispense, or immediately for leaks, damaged tubing, electrical damage or an unresolved alert. Do not open the cabinet or guess at a valve or control part.
Safety scope: Do not remove panels or doors, disconnect internal water tubing, probe a valve, bypass controls or order a part by appearance. Shut off the water before any external line correction.
Have this ready
- Provide T36FT820NS/02, filter part/installation date if known, whether ice production works, whether flow is absent or weak, valve/line observations and any displayed alert.
Common questions
FAQ
Should I replace the water valve first?
No. Thermador lists filter seating, filter condition, the shut-off valve and a kinked connection line before any internal diagnosis. No-water flow alone does not prove that the valve has failed or identify a compatible replacement.
Can I use any Thermador filter that looks the same?
No. Use the full T36FT820NS/02 model in Thermador's filter finder and follow the exact installation guide. The filter must be fully rotated and seated with the alignment marks matching.
What if the filter and supply line look normal?
Stop at the external checks and arrange model-specific service. Do not disconnect internal tubing or test a valve from the symptom alone.
Read the exact guide
Official sources
- Thermador | Water Filter FinderThermador · Opened Thermador filter finder. It requires the complete E-Nr including the slash and two digits, so it supports using T36FT820NS/02 for the exact filter lookup rather than choosing a filter by appearance.
- Refrigeration - Troubleshooting GuideThermador · Opened Thermador official refrigeration troubleshooting. Its water-dispenser section supports filter seating/alignment, fully open shut-off valve, kinked connection line and old/clogged filter as external branches; it does not establish an internal valve fault or universal repair sequence.
- Appliance Information - Freestanding French Door Bottom Mount Refrigerator | T36FT820NS/02Thermador · Opened Thermador's exact product-service page. It identifies T36FT820NS/02 as a Freestanding French Door Bottom Mount Refrigerator and links the user manual, installation instructions and owner-support resources. It does not by itself diagnose a water-dispenser component.
- How to Replace Your Water FilterThermador · Opened Thermador official filter instructions. It explains that the owner manual controls filter location and that the filter must be inserted/rotated and aligned for the applicable refrigerator type; it is used only for the user-level filter check, not for internal repair or unverified compatibility.
