Quick answer

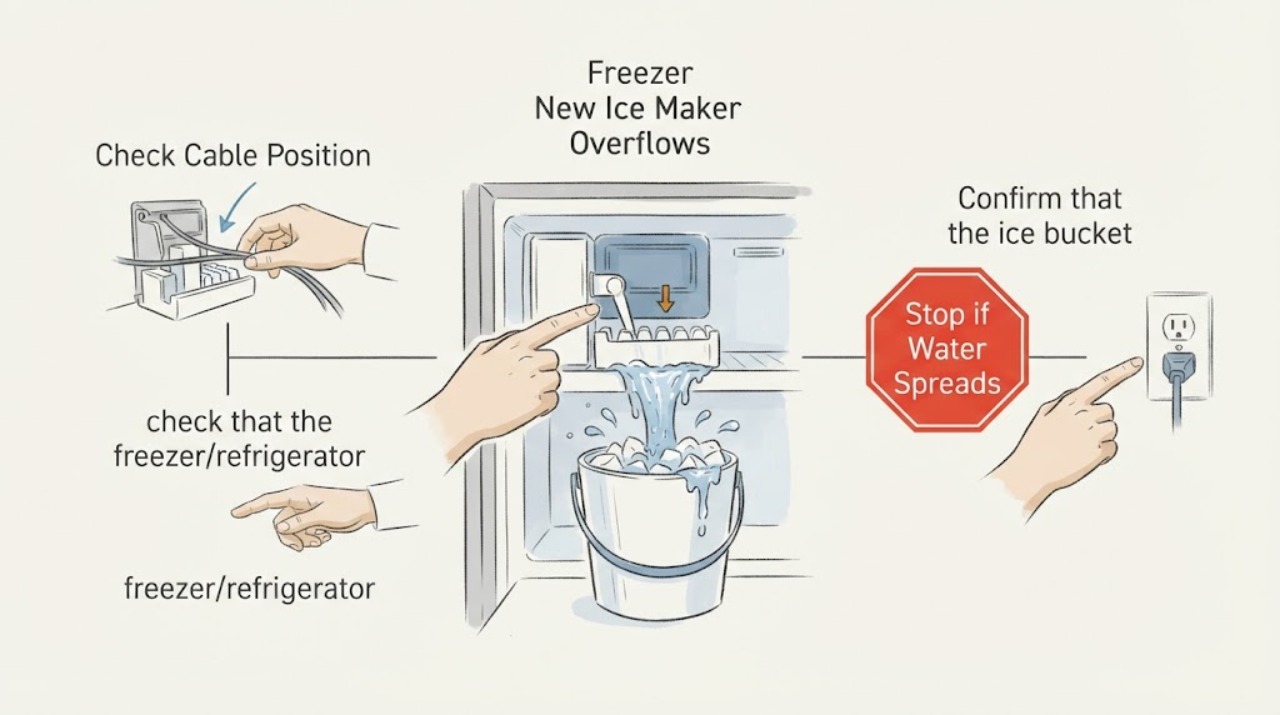

If a newly installed Amana freezer ice maker keeps filling and overflows, stop the fill first: use the ice maker’s documented off position or raise its shutoff arm only if that is the control style shown in the model manual, and close the ice-maker water shutoff valve if water continues. Amana’s opened ice-maker instruction sheet lists an unlevel refrigerator or ice maker as an overflow cause and directs service if overflow remains after leveling. Check only the bin position, visible level, and external water-line kinks; do not force the arm, open the water valve, test a sensor, or assume a generic replacement ice maker fits.
Before you begin
Safety first
- Do not open the water valve, disassemble the inlet valve or maker, test live wiring, bypass the shutoff arm, force the arm, or select a replacement valve/sensor/maker without exact model documentation.
Work through in order
Diagnostic checks
Use only checks that match the exact appliance or system and its official guide.
-
Check 1
Stop the ice maker without reaching into the mechanism: use the exact model’s off switch or lift the wire/plastic shutoff arm only when that is the documented control style. If water continues entering, close the external water shutoff valve feeding the ice maker.
Expected result: Water stops when the maker is switched off/arm is raised, or water continues despite the off control.
Next step: Keep the maker and water supply off and arrange service if filling continues. If the flow stops, leave it off while checking the level, bin, and external line below.
Why this matters
Why: Amana documents automatic shutoff styles that vary by model and instructs users to isolate the water and raise the bail arm when overflow remains after leveling. Continued filling after the correct off control is not a reason to force the arm or open the valve.
-
Check 2
With the maker off and the water isolated, check that the freezer/refrigerator and the newly installed ice maker sit level and that the maker is not visibly tilted in its mounting position. Do not loosen mounting screws or reposition the assembly without the exact installation instructions.
Expected result: The appliance or maker is visibly tilted, or both appear level from the outside.
Next step: Correct only an external leveling issue covered by the model instructions. If the maker is level and overflow occurred again, keep the water off and contact service rather than adjusting an internal fill setting.
Why this matters
Why: Amana’s ice-maker troubleshooting chart identifies an unlevel refrigerator or ice maker as a cause of water overflowing the maker. Leveling does not prove that a valve, fill control, or sensor is healthy.
-
Check 3
Confirm that the ice bucket or bin is directly under the maker and that the shutoff arm can move in its normal path without ice, packaging, or the bin blocking it. Do not force the arm up or down and do not remove the bin while the maker is enabled.
Expected result: The bin is displaced or the arm path is blocked, or the bin and arm are correctly positioned.
Next step: Restore the bin only as the exact manual shows and keep the maker off until the spill is cleaned. If the bin and arm are already correct, continue to service rather than replacing the new maker by appearance.
Why this matters
Why: Amana says a bin that is not directly below the maker can prevent the shutoff arm from working properly, and warns that forcing the arm can damage the mechanism. The opened owner manual shows that switch/arm arrangements differ by model.
-
Check 4
Inspect the external water supply line from the shutoff valve to the freezer for a kink or pinched section, and confirm that the maker is connected to the cold-water supply specified by the model instructions. Do not disconnect fittings or alter tubing while water is live.
Expected result: The line is kinked/pinched or the cold-water connection is uncertain, or the external line is open and correctly routed.
Next step: If the model instructions clearly permit it, restore the line’s external routing with the water isolated. If the connection is uncertain or overflow persists, leave the supply off and use service; do not substitute tubing or a generic ice-maker kit.
Why this matters
Why: Amana’s upright-freezer new-installation guidance identifies a cold-water connection and kink-free supply line as external installation checks. It does not say that a line check identifies a defective valve or fill sensor.
-
Check 5
Give the service provider the freezer rating-plate model, the replacement ice-maker identity if known, whether water continued after the off control, the level/bin observations, and the exact point where water escaped. Do not open the new ice maker, test the inlet valve, bypass the shutoff, or replace a sensor or valve based on the symptom alone.
Expected result: Overflow returns after level/bin/line checks, the off control does not stop filling, the model/control style is unknown, or the installation requires internal access.
Next step: Keep the ice maker and water supply off until qualified service confirms the installation and the correct model-specific parts or repair.
Why this matters
Why: Amana routes persistent overflow and unresolved new-installation problems to a service center. Its installation sheet treats valve-strainer work as service-center work, and its public guidance does not establish compatibility or internal diagnosis for an unspecified replacement maker.
Use your observations
Decision map
Find the observation that best matches what you see, then follow the next safe action.
-
PATH 01Next step
What you see
Water keeps entering after the documented off control is used, or water is pooling near the freezer’s electrical components.
Do this next
Close the external water shutoff, keep the maker off, dry only accessible spills without touching electrical parts, and arrange service.
Why this path and its safety boundary
Why it matters: The fill has not been safely isolated; Amana’s overflow procedure calls for closing the ice-maker water shutoff and raising the bail arm before service.
-
PATH 02Next step
What you see
The maker or appliance is visibly unlevel, or the bin is not directly below the maker and the shutoff arm cannot move normally.
Do this next
Correct only the external position covered by the exact manual, keep the water isolated during the correction, and seek service if overflow recurs.
Why this path and its safety boundary
Why it matters: Amana identifies level and bin/arm position as external conditions that can defeat normal shutoff; neither condition proves an internal component failure.
-
PATH 03Next step
What you see
The maker was just installed and the external cold-water line is kinked, pinched, or not confirmed, while no water continues after shutoff.
Do this next
Follow the exact freezer installation instructions to restore the external cold-water route; if fittings or internal access are needed, use service.
Why this path and its safety boundary
Why it matters: The new-installation water connection has not been established as correct, so the ice maker should not be cycled again until the line is safely addressed.
-
PATH 04Next step
What you see
The maker is level, the bin and arm are correctly positioned, the external line is correct, and the new maker still overfills or the cause cannot be observed safely.
Do this next
Leave the water and maker off and arrange qualified Amana service with the rating-plate and replacement-part information.
Why this path and its safety boundary
Why it matters: The remaining fault is beyond the published external checks; the official evidence does not identify whether a valve, fill control, sensor, or replacement-maker compatibility issue is responsible.
Helpful context
Understand the symptom
Stop the water before diagnosing
Overflowing water can reach the freezer floor and electrical areas. Amana’s modular ice-maker sheet says that if overflow remains after leveling, the water supply should be shut off, the bail arm raised to the off position, and a service center contacted. The exact shutoff control varies by ice-maker style, so use the task freezer’s manual rather than forcing a switch or arm.
A new installation changes the first checks
Amana’s upright-freezer guidance calls for a cold-water connection, an un-kinked supply line, and time after installation before normal ice production. Those checks can explain missing or delayed ice, but they do not explain water that keeps entering after the maker is turned off; persistent filling needs service rather than a guessed valve or sensor diagnosis.
When checks do not resolve it
Need a professional?
Arrange service when overflow continues after the external level/bin/line checks, when water cannot be stopped with the documented shutoff controls, or when the new ice maker’s model and installation compatibility are uncertain.
Safety scope: Do not open the water valve, disassemble the inlet valve or maker, test live wiring, bypass the shutoff arm, force the arm, or select a replacement valve/sensor/maker without exact model documentation.
Common questions
FAQ
What should I do first when a new Amana ice maker overflows?
Turn the maker off using its documented control and close the ice-maker water shutoff if water continues. Amana’s instruction sheet says to raise the bail arm and contact service if overflow remains after leveling.
Could an unlevel freezer cause the overflow?
Yes. Amana’s modular ice-maker troubleshooting chart lists an unlevel refrigerator or ice maker as an overflow cause. Check the external level, but do not infer that leveling alone proves the internal mechanism is good.
Can I install a generic replacement ice maker?
Do not assume compatibility from appearance. Keep the maker and water supply off and give the freezer model and replacement identity to service so the installation and control style can be verified.
Read the exact guide
Official sources
- Water and Ice Dispensers Owner ManualAmana · Opened official Amana owner manual and used only to show that shutoff controls vary by model and that automatic overfill protection depends on the bin/arm or switch arrangement. It is not treated as the task unit manual.
- Ice Maker Installation and Troubleshooting Instruction SheetAmana · Opened official Amana PDF. Its troubleshooting chart applies to the modular ice-maker kit covered by the sheet, so it supports external overflow isolation and level checks, not a universal diagnosis for every Amana freezer or replacement ice maker.
- Making too Much Ice - Ice Maker is in Freezer - RefrigeratorAmana · Opened official Amana Product Help page. It supports the external shutoff-arm and bin-position checks when the task freezer has the corresponding arrangement; exact control style remains model-dependent.
- Not Making Ice - New Installation - Upright FreezerAmana · Opened official Amana Product Help page for upright freezers. It supports external water-line and new-installation checks; it does not authorize internal valve, sensor, or replacement-part diagnosis for an unspecified freezer.
