Thermador dwhd640jfp dishwasher not completing cycle — after replacing soap dispenser

Use only checks that match the exact appliance or system and its official guide.

1. Check 1

   Read the model label at the dishwasher door edge and record the full identifier, including any suffix after DWHD640JFP; write down the selected cycle, the elapsed point where it stops, the display text, and the exact beep pattern.

   Expected result: The label shows a suffix such as /48, /50, /51, /52, /55, /63, /72, /73, /74, /80, /82, /85, /86, /87, or /93, or the suffix is still unknown; the unit either reaches the end or stops early.

   Next step: Use the complete suffix to select the matching manual and keep the code or beep cadence for service; do not assign an error-code meaning from the base model alone.

   Why this matters

   Why: Thermador lists multiple DWHD640JFP revisions, and the manual identifies a DWHD640Jxx family rather than proving every suffix has identical documentation. A beep at the actual end can be normal, while a stop after a few minutes is a different observation.

2. Check 2

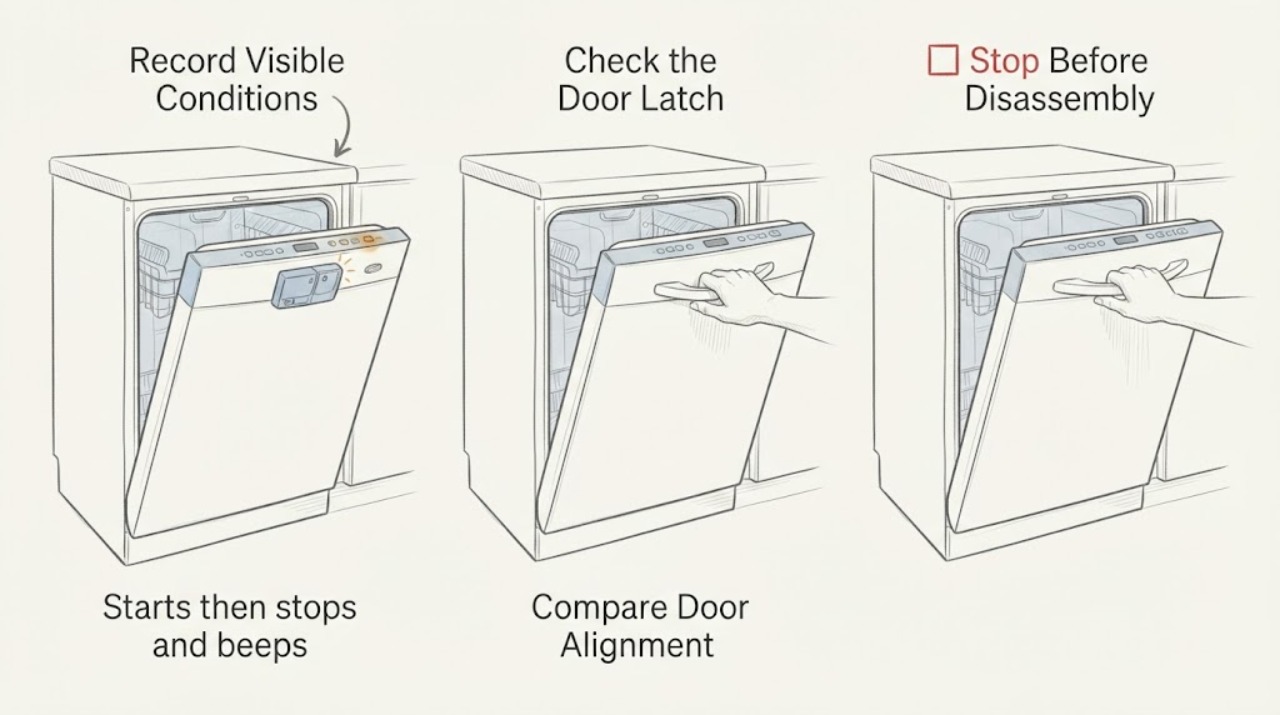

   With the cycle stopped and the door handled cautiously for possible hot water or steam, note whether the tub is dry, partly full, or still filling; also note whether the control responds and whether the door closes with its normal latch action.

   Expected result: The tub is dry, water remains, the unit never filled, the controls show a delay or previous-cycle state, or the door no longer latches as it did before the dispenser work.

   Next step: Follow the matching branch below. If opening the door reveals hot water or steam, wait for it to subside; do not force the door or open the inner door assembly.

   Why this matters

   Why: A dry stop with no fill points toward program state, door recognition, or water entry; water remaining makes the drain path more relevant. A new latch or inner-door fit change immediately after the repair raises an installation-related hypothesis, but it is not proof of a failed component.

3. Check 3

   Check only the visible dispenser and door fit: with the appliance not running, confirm the replacement cover is seated and shut, no detergent residue is preventing closure, the seal is in its track, and the door is not rubbing or sitting out of alignment. Do not remove the inner door or inspect hidden connectors.

   Expected result: The cover will not close, the door needs unusual pressure, the seal is displaced, visible residue or damage is present, or the visible fit is normal.

   Next step: If the fit changed after replacement, stop repeated test cycles and have the installer or qualified Thermador service verify the exact part and door assembly. If the fit is normal, continue with one documented program-state check rather than guessing at the control board.

   Why this matters

   Why: The manual gives a specific dispenser-cover check and identifies door latching as a start/resume condition; a new visible fit problem makes the repair installation the first service question. A normal visible fit does not clear hidden wiring, an interlock, or another subsystem.

4. Check 4

   Cancel the cycle once using the exact DWHD640Jxx-family manual procedure: open only far enough to reach the controls, hold START/RESUME for about 3–4 seconds until the display shows 0:01, close the door, allow the drain period, then turn the unit off before selecting a new cycle.

   Expected result: The unit drains and accepts a new selection, remains in the same state, beeps again without completing, or leaves water behind.

   Next step: Do not repeat undocumented button combinations. If it leaves water, use the drain branch; if it stops again soon after the replacement, preserve the exact time and display state for service.

   Why this matters

   Why: Thermador documents an interrupted previous cycle and the cancel/drain sequence as a program-state check. Failure of that single documented sequence is not evidence that the dispenser caused a control-board failure; it means the symptom needs a more specific service diagnosis.

5. Check 5

   If the machine is not filling, inspect the household side of the inlet path without opening the appliance: verify the under-sink valve is open, the visible supply line is not kinked, and delay start is not active.

   Expected result: The valve is closed, the line is visibly kinked, household water is off, delay start is active, or all visible inlet conditions are normal.

   Next step: Correct only an obvious household-side condition described by the manual, then allow one controlled test. If the unit still will not fill, stop and arrange service rather than opening the inlet assembly.

   Why this matters

   Why: Thermador lists a restricted water supply, an off household valve, and delay start as reasons a dishwasher may not fill; these can look like a cycle that stopped. Normal visible conditions make an internal inlet or control diagnosis more likely, not a confirmed dispenser fault.

6. Check 6

   If water remains after the stop, check the accessible filter and visible drain path for food debris, including the garbage-disposal connection or air gap where fitted; use the manual's safe access and power-isolation instructions and do not reach into a hidden pump or disconnect plumbing.

   Expected result: The filter or visible drain path is blocked, or the visible path is clear but water remains after the documented CANCEL/DRAIN step.

   Next step: Clear only accessible debris, reinstall the filter correctly, and run the documented drain step once. If water remains, there is a leak, or the cycle repeatedly stops, stop using the dishwasher and call qualified service.

   Why this matters

   Why: Thermador separates blocked drain lines, a blocked pump, and a dirty filter from a normal cycle-completion beep. Persistent water with clear accessible points moves the diagnosis beyond a user check.
