Start here
Quick answer
On the LG DLEX3700W, nP does not mean that the entire dryer has no power. LG defines nP as no current being detected at the heater, usually associated with the home's electrical wiring. The drum and display may still work while the dryer cannot heat. First record the complete display and confirm the DLEX3700W.ABWEEUS identity on LG's support page. From a dry, safe position, check that the cord is seated and that the dryer breaker is fully off and back on once as LG documents; an electric dryer normally uses a two-pole circuit, so one tripped leg can leave controls operating while heat is unavailable. Do not open the terminal block, measure the outlet, move wires, or replace a heater or control board by guesswork. If nP returns, the dryer still tumbles without heat, the breaker trips, or the unit is completely dead, stop and use a licensed electrician or qualified LG appliance service.
Before you begin
Safety first
- Do not measure a live outlet, open the terminal block or cabinet, remove covers, move cord conductors, reverse wires, jumper protection, or replace a heater, thermal fuse, motor, or control board solely from nP. Do not repeatedly reset a breaker that trips or will not latch.
Work through in order
Diagnostic checks
Use only checks that match the exact appliance or system and its official guide.
-

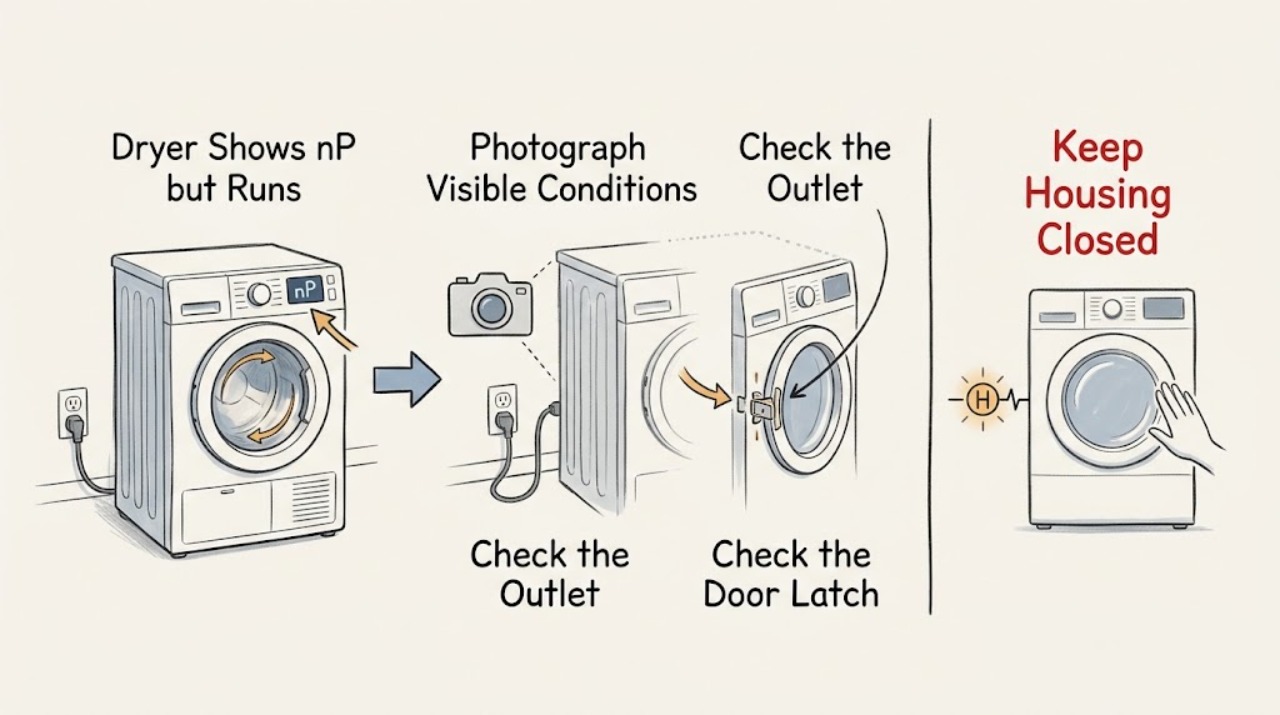

Check 1
Before clearing anything, photograph the full display and record the exact model suffix, whether the display and drum light are on, whether the drum turns, whether heat is absent, and whether the code is nP rather than PS, PF, or a different message.
Expected result: The display shows nP while the dryer otherwise powers or tumbles, or the display and drum light are both dark, or another code is shown.
Next step: Use the nP power path only when the complete code is nP. For a dark unit or different code, use the exact LG entry and do not substitute nP instructions.
Stop if: Do not repeatedly start cycles to force a code, open the cabinet, or test wiring while energized.
Why this matters
Why: nP narrows the problem to heater-current detection and home power/heater service; a completely dark dryer is a broader no-power branch, and PS/PF have different meanings.
-
Check 2
From a dry, safe position, inspect the accessible plug and cord for looseness, scorching, melting, damage, moisture, or a hot connection. Confirm the cord is fully seated in the grounded wall outlet and that no extension lead or power strip is being used. Do not remove an access cover or touch terminals.
Expected result: The cord and plug are cool and undamaged, or there is heat, charring, looseness, moisture, or visible electrical damage.
Next step: If damaged, leave the dryer off and obtain qualified electrical/appliance service. If intact, continue to the breaker check once.
Stop if: Do not plug in a damaged cord, use an adapter or extension, open the terminal block, or touch exposed wiring.
Why this matters
Why: An intact external connection permits the one documented breaker check. Damage or heat is an electrical stop condition and cannot be corrected by reseating wires.
-
Check 3
Identify the dryer circuit breaker from the panel label without opening the panel or touching conductors. Turn the dryer breaker fully OFF, wait at least 10 seconds as LG documents for nP, then turn it fully ON once. Do not keep cycling the breaker if it will not latch or trips again.
Expected result: The breaker resets and stays on, the nP code clears, the dryer becomes completely dead, or the breaker trips or will not stay on.
Next step: Run at most one normal observation only if there is no damage or hazard. If nP returns, the breaker trips, or power is absent, stop and call a licensed electrician or qualified LG service.
Stop if: Do not reset a hot, wet, smoking, sparking, or repeatedly tripping circuit and do not replace a breaker yourself.
Why this matters
Why: A reset that restores normal heat points to a transient supply state. A returning nP still means the heater current is not detected; a persistent trip or dead unit indicates a supply or appliance fault requiring qualified diagnosis.
-
Check 4
Observe the result without measuring voltage: after the breaker check, note whether the display, drum light, and drum motion are present and whether the load receives heat during one normal cycle. Keep the door and lint filter in their normal operating positions and do not reach inside a moving drum.
Expected result: The dryer is completely dark, the display and drum run but the load stays cold, or the dryer heats normally and nP does not return.
Next step: For a dark unit, use electrical/appliance service. For a running but cold unit or returning nP, request service and have the supply and heater circuit diagnosed in that order. For normal heat, monitor without changing wiring.
Stop if: Do not feel for heat by reaching into a moving drum, run an empty dryer repeatedly, or open the machine to inspect the heater.
Why this matters
Why: A dark dryer is not the same as nP. A running but cold dryer fits LG's heater-current or supply path; normal heat after reset supports a transient condition but does not prove a component is healthy.
-
Check 5
Check only external installation context: confirm the dryer is the electric DLEX3700W, is connected directly to the outlet specified by its rating plate, and was not recently rewired, moved, or installed with a different cord. If installation is recent, give the installer the nP result instead of modifying the cord yourself.
Expected result: The dryer was recently installed or rewired, the cord/outlet arrangement does not match the rating plate, or the installation has been unchanged and nP persists.
Next step: Have the installer or licensed electrician verify the installation and supply. If installation is correct, request LG appliance service to diagnose the heater circuit; do not open the terminal block.
Stop if: Do not reverse wires, change a 3-wire/4-wire arrangement, install a new receptacle, or use a jumper without a qualified person and applicable local requirements.
Why this matters
Why: A recent installation makes cord configuration, outlet supply, or one missing supply leg a higher-priority external check. An unchanged installation with recurring nP still needs measured electrical and appliance diagnosis, not a code-based part decision.
-
Check 6
Prepare a service report with the exact model suffix, complete nP display, breaker behavior, whether the drum light and drum turn, whether the dryer heats at all, cord/plug condition, installation history, and any smell, smoke, sparking, or repeated trip. Do not name a heater, thermal fuse, motor, or board as the diagnosis.
Expected result: nP returns after the single external breaker check, the dryer runs without heat, the breaker or outlet is abnormal, or the appliance is fully dead.
Next step: Stop using the dryer and arrange the appropriate electrical or LG appliance service. Ask the provider to verify supply and the heater-current path before recommending any component.
Stop if: Stop immediately for burning smell, smoke, sparks, a hot outlet or cord, exposed wiring, water near electrics, or repeated protection trips.
Why this matters
Why: These observations identify the next professional route but do not identify a replaceable part. LG's nP guidance sends a returning no-heat condition to repair service, while outlet or wiring questions belong with a licensed electrician.
Use your observations
Decision map
Find the observation that best matches what you see, then follow the next safe action.
-
PATH 01Next step
What you see
The display and drum operate, nP appears, the external cord is intact, and one documented breaker reset restores normal heat without a return of the code.
Do this next
Monitor one normal load and keep the service record. If nP or no-heat returns, stop repeated resets and request electrical/appliance diagnosis.
Why this path and its safety boundary
Why it matters: The result is consistent with a transient supply or breaker state; it does not prove that the heater or wiring cannot fail later.
-
PATH 02Next step
What you see
The controls or drum run but the load remains cold and nP returns after the external cord and one breaker check.
Do this next
Leave the dryer off and have a licensed electrician verify the outlet/supply and qualified LG appliance service assess the appliance. Do not replace the heater, board, fuse, or wiring by inference.
Why this path and its safety boundary
Why it matters: The heater is not receiving detected current; LG directs the next step to outlet/supply verification and repair service. The code alone does not distinguish a missing supply leg from an internal heater-circuit fault.
-
PATH 03Next step
What you see
The display and drum light are dark, or the breaker will not latch, trips again, or the outlet/cord is hot or damaged.
Do this next
Stop use. From a dry, safe position isolate only when safe and obtain licensed electrical or qualified appliance service; do not repeatedly reset the breaker.
Why this path and its safety boundary
Why it matters: This is a broader power or electrical-safety problem, not proof that nP is the whole explanation.
-
PATH 04Next step
What you see
The unit was recently installed or rewired, and nP began immediately or the cord/outlet arrangement does not match the rating plate.
Do this next
Have the installer or licensed electrician verify the complete installation and supply. Do not open the terminal block or alter wire positions yourself.
Why this path and its safety boundary
Why it matters: Installation configuration or supply is a priority hypothesis, especially because an electric dryer can retain control power while lacking heater current.
-
PATH 05Next step
What you see
There is burning smell, smoke, sparking, severe heat, water near electrical parts, exposed wiring, or repeated breaker/RCD trips.
Do this next
Stop using the dryer, keep clear, isolate power only if safe without touching exposed wiring or water, and obtain emergency or qualified electrical/appliance help. Do not restore power to test it.
Why this path and its safety boundary
Why it matters: This is an immediate fire or electrical boundary and cannot be safely investigated as an ordinary nP/no-heat fault.
Helpful context
Understand the symptom
nP is a heater-current message, not a whole-machine power-off message. LG separates the nP path from a completely dark dryer: nP means the dryer is not detecting current at the heater, whereas a dark display or drum light is a broader supply or service question. The most useful distinction is whether the drum and controls run while heat is absent, whether the breaker will stay on, and whether the entire dryer is dead.
DLEX3700W is an electric dryer in the opened LG USA support record. Keep the check external. LG directs owners to confirm the grounded 240 V-rated connection, reset the dryer breaker once, and have the outlet checked by a licensed electrician if nP remains. Those instructions do not authorize live outlet testing, terminal-block rewiring, bypassing protection, or choosing a heater or board from the code alone.
When checks do not resolve it
Need a professional?
Call a licensed electrician for the wall outlet, breaker, cord installation, or supply-leg verification. Call qualified LG appliance service for a returning nP after supply is checked, a running-but-cold dryer, or any internal diagnosis. Stop and use emergency guidance for smoke, sparking, burning smell, severe heat, or unsafe electrical damage.
Safety scope: Do not measure a live outlet, open the terminal block or cabinet, remove covers, move cord conductors, reverse wires, jumper protection, or replace a heater, thermal fuse, motor, or control board solely from nP. Do not repeatedly reset a breaker that trips or will not latch.
Have this ready
- Provide DLEX3700W and full rating-label suffix, complete display, whether the display/light/drum work, heat result, breaker behavior, plug and cord condition, recent installation or rewiring history, rating-plate information, and any smoke, smell, heat, sparking, or trip observations.
Common questions
FAQ
Does nP mean my LG DLEX3700W has no power at all?
No. LG defines nP as no current being detected at the heater, usually associated with home electrical wiring. The controls and drum can still operate while heat is unavailable. A completely dark display or drum light is a separate broader no-power branch.
Can I fix nP by replacing the heating element?
Not from the code alone. LG's nP path starts with the grounded connection, one external breaker reset, and licensed outlet verification, then directs service if the dryer still does not heat. A heater, wiring, fuse, or board should be named only after the supply and appliance are diagnosed.
Why can the dryer tumble if one part of the power supply is missing?
An electric dryer can show control power or run the drum while the heater-current path is unavailable. That is why nP should be treated as a heater-current/supply message rather than proof that the entire machine is dead. Do not measure or rewire the supply yourself.
How many times should I reset the breaker for nP?
LG documents turning the dryer breaker off for at least 10 seconds and turning it back on. Perform that external check once when there is no heat, damage, moisture, or repeated trip. If nP returns or the breaker trips, stop testing and arrange service.
When is nP an electrical emergency?
Stop immediately for a burning smell, smoke, sparks, a hot or damaged plug/outlet, exposed wiring, water near electrical parts, or repeated breaker/RCD trips. Do not restore power or open the dryer; use the appropriate local emergency or qualified electrical/appliance service.
