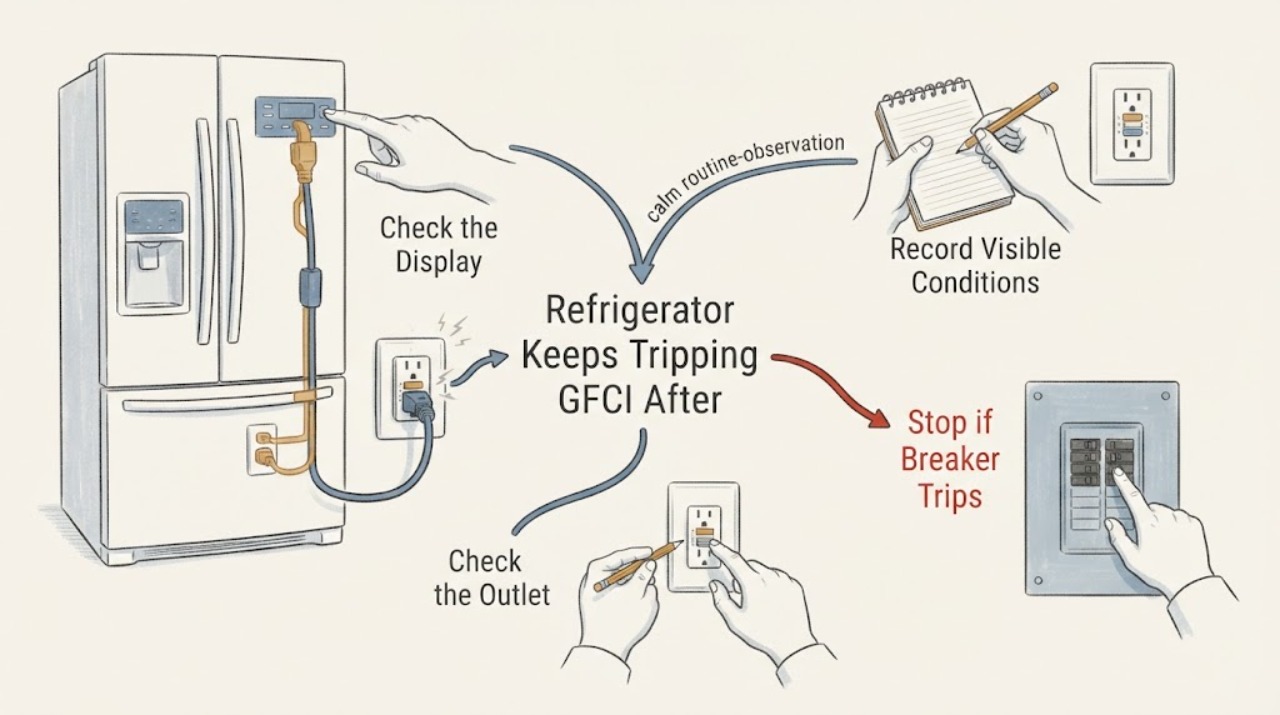

Lg lfc22770st refrigerator tripping gfci — plugged into gfci outlet

Use only checks that match the exact appliance or system and its official guide.

1. Check 1

   Stop using the refrigerator and do not reconnect it after a GFCI trip or control-board failure. From a dry position, keep hands off the plug, receptacle, and appliance if there is water, smoke, a burning odor, heat, crackling, visible arcing, melted material, or a damaged cord; if there is an immediate fire or shock hazard, leave the area and use emergency help.

   Expected result: The refrigerator or connection is dry and intact from the outside, or there is any sign of heat, water, scorching, arcing, smoke, odor, melted insulation, or a damaged power cord or outlet.

   Next step: Leave the refrigerator disconnected and arrange qualified electrical and LG appliance service. Do not reset or reconnect it to reproduce the trip.

   Stop if: Do not touch wet electrical equipment, pull a plug through water, remove a receptacle cover, open the refrigerator cabinet, or perform a live test.

   Why this matters

   Why: A visible hazard or a previous burned board raises the event above a normal nuisance trip. Repeated energization could recreate an electrical fault or cause shock or fire; the GFCI is acting as a safety device, not an obstacle to remove.

2. Check 2

   Record the exact label, including LG LFC22770ST and the full suffix, the region, the date and sequence of the prior control-board failure, when the GFCI trips, who replaced or inspected the board, and whether the trip happens when the door is opened, when the compressor or fan would start, or immediately at connection. Do this from observation and service records; do not reconnect the refrigerator to obtain timing.

   Expected result: The model and suffix are known, the prior board damage is documented or only reported, and the trip timing is known from an earlier event or cannot be safely reproduced.

   Next step: Give the model, photographs, board history, GFCI type/location, trip timing, and any odor, heat, moisture, or breaker history to both service providers.

   Stop if: Do not install another board, substitute a board from a related LG model, or power the refrigerator merely to collect a more specific symptom.

   Why this matters

   Why: The exact model routes the technician to the correct manual and parts information, while the event history helps separate a repeat appliance fault from a circuit or receptacle issue. Unreproduced timing is still useful; it is not a reason to cycle power.

3. Check 3

   With the refrigerator still unplugged and without opening anything, inspect the visible plug, cord, GFCI face, and outlet area for discoloration, looseness, moisture, crushed insulation, a hot-plastic smell, or signs that the plug has been sitting partly out of the receptacle. Do not insert probes or a test appliance into the suspect outlet.

   Expected result: The receptacle or plug is damaged, loose, wet, scorched, hot, or smells burned, or it appears externally intact.

   Next step: Keep the circuit and appliance out of use and have a qualified electrician inspect the GFCI, receptacle, branch wiring, grounding, and protection device with the refrigerator disconnected. Tell the electrician that a refrigerator control board has already burned.

   Stop if: Do not tighten terminals, replace the GFCI, change the receptacle type, bypass the device, or move the refrigerator to an unprotected outlet yourself.

   Why this matters

   Why: A building-side connection can trip protection independently of the refrigerator, while a normal-looking exterior does not clear hidden wiring, GFCI, or appliance faults. The prior board damage means an intact-looking connection is not permission to reconnect.

4. Check 4

   Only a qualified electrician should determine the protective-device state with the refrigerator isolated. The safe information to capture is whether the GFCI or breaker remains tripped with the refrigerator unplugged, or whether it holds while isolated but trips when the refrigerator is later connected under a controlled service procedure.

   Expected result: Protection will not hold with the refrigerator disconnected, or it holds disconnected and trips when the LFC22770ST is connected or turned on; the result is not available because reconnection would be unsafe.

   Next step: For an isolated-circuit trip, use a licensed electrician. For an appliance-specific trip, keep the refrigerator disconnected and request LG appliance service as well; require the underlying fault to be identified before any board replacement or reconnection.

   Stop if: Do not perform the isolation test yourself if it requires touching the panel, wet equipment, exposed wiring, or reconnecting the refrigerator after the prior board failure.

   Why this matters

   Why: A trip with the appliance isolated points toward the GFCI, branch circuit, receptacle, wiring, or building-side fault. A trip tied to this refrigerator makes the appliance power or leakage path suspect. Neither pattern identifies a board, compressor, cord, or other part without de-energized professional diagnosis.

5. Check 5

   Verify the installation history without changing it: determine whether the refrigerator was on an extension cord, power strip, generator, shared circuit, or non-dedicated receptacle, and whether anyone proposed replacing the GFCI with an ordinary outlet. Do not make any of those changes.

   Expected result: An extension cord, power strip, shared high-load circuit, generator, altered grounding, ordinary replacement outlet, or other non-manufacturer arrangement is present, or the refrigerator was directly connected to the existing protected installation.

   Next step: Leave the arrangement de-energized and ask an electrician to restore and verify a code-compliant, grounded installation. Ask LG service to inspect the LFC22770ST separately; do not authorize a board swap based only on the trip.

   Stop if: Do not use an ordinary outlet, adapter, extension cord, power strip, defeated ground, or improvised bypass as a workaround.

   Why this matters

   Why: LG specifies a grounded 120 V, 20 A dedicated circuit and says extension cords and power strips are not recommended. An altered installation can add a supply-side problem, but removing GFCI protection would mask a safety signal rather than repair the refrigerator.
