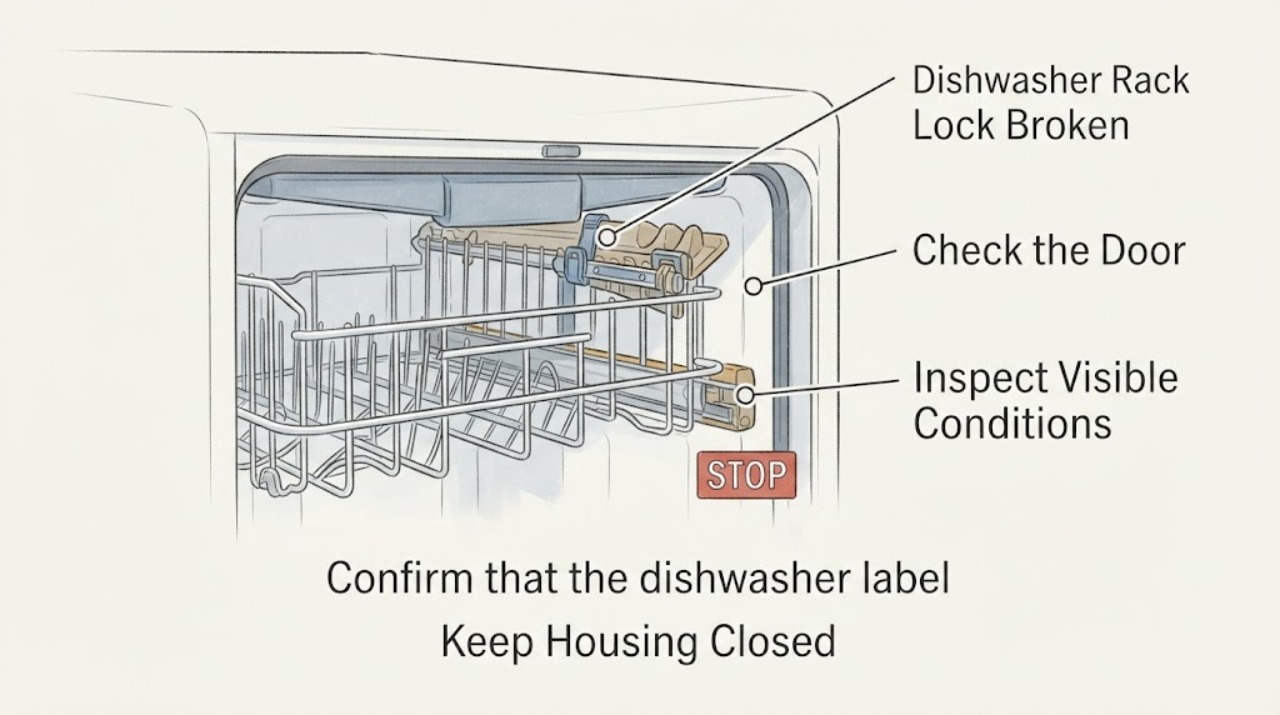

Maytag MDB8989SHZ0 Dishwasher Rack Lock Broken: Verify the Upper Rack Adjuster

Use only checks that match the exact appliance or system and its official guide.

1. Check 1

   Cancel or stop the dishwasher and remove every dish from the upper rack before inspecting the broken piece. Do not push down on an open dishwasher door, run a cycle with a loose rack, or put hands near a moving spray arm.

   Expected result: The rack is empty and stable, or it is tilted, partly out of its track, scraping the tub, or obstructing a spray arm.

   Next step: Keep the dishwasher out of service until the rack is correctly retained on both sides. If the rack or track is bent, do not force it back into position; document the damage for service.

   Why this matters

   Why: An empty stable rack can be inspected without the load adding weight or shifting the mechanism. A tilted or obstructing rack can damage dishes, the track or the spray system if the dishwasher runs.

2. Check 2

   Pull the empty upper rack only as far as it moves normally and compare the left and right adjuster areas. Look for a missing lever, a cracked adjuster housing, a loose cover or clip, a missing track stop, a detached wheel, or a rack side that will not remain level. Do not pry a stuck stop or force a side into the rail.

   Expected result: The failure is in the side adjuster mechanism, only its clip or cover is missing, or the issue is at the rail, wheel or track stop instead.

   Next step: Photograph the intact opposite side and the damaged side, retain any loose fragment, and use the exact model parts list to compare the shape and location before selecting a component.

   Why this matters

   Why: Those are different positions in Maytag's parts breakdown. A broken side adjuster is not interchangeable with a track stop or a wheel, and the visible symptom does not justify substituting one category for another.

3. Check 3

   Confirm that the dishwasher label reads MDB8989SHZ0, then use the Maytag parts list W11253129 for that exact model. In the upper rack and track section, compare the failed area with the listed adjuster assembly, adjuster clip, adjuster cover, rack housing and track parts.

   Expected result: The label matches MDB8989SHZ0 and the broken location matches the upper-rack adjuster, or the label or location differs.

   Next step: For the confirmed model, use the component description and the intact side to distinguish a complete adjuster assembly from a clip or cover. If the model or location cannot be confirmed, stop before ordering or disassembling.

   Why this matters

   Why: The Maytag document explicitly covers MDB8989SHZ0 and names its upper-rack components. A different model, a different rack level or a track-stop failure would require the applicable document rather than this part mapping.

4. Check 4

   With the rack empty, check that both side adjusters are in the same height position and that the rack rolls evenly in both tracks. If the model's manual calls for adjusting the rack, use both adjusters together and then check that the spray arms turn freely by hand with the dishwasher stopped.

   Expected result: Both sides latch and the rack is level with clear spray-arm movement, or one side will not latch, the rack sits unevenly, or a spray arm contacts the rack.

   Next step: Do not run a cycle while the rack is uneven or the spray arm contacts it. Match the damaged component to the parts list or arrange Maytag-qualified appliance service.

   Why this matters

   Why: A level rack with free spray-arm movement supports correct external alignment; a failed latch or contact means the broken retention mechanism has not been resolved. It does not identify whether the assembly, clip, cover or track is the failed part.

5. Check 5

   After any model-matched rack component is installed by an owner-safe procedure or technician, slide the empty rack through its full normal travel and verify that both sides remain in the tracks and that each stop or adjuster cannot release during ordinary movement. Do not test by loading dishes or starting a cycle first.

   Expected result: The rack stays level and retained with no binding, or it jumps the track, releases a side, binds, or contacts the spray arm.

   Next step: Keep the dishwasher off and stop adjusting if the rack releases or binds. Have the rack, track and listed component inspected together rather than forcing a replacement part to fit.

   Why this matters

   Why: A controlled empty-rack check can reveal a remaining retention or alignment problem before dishes and water pressure add risk. A release or binding condition means the repair or part match is not established.
