Start here
Quick answer
Miele identifies the G 6365 SCVi as a Dimension fully integrated dishwasher, and its G 1xxx–G 6xxx drainage guidance covers the impeller inspection used here. Turn the dishwasher off and unplug it before removing standing water, the filter combination, or the non-return valve. Carefully remove only visible foreign objects and check the drain-pump impeller by hand; Miele says a little resistance is expected. If a blade is visibly broken, missing, loose, or the impeller does not turn as described, do not run the dishwasher, glue or bend the blade, or guess a replacement pump. Refit any cover or valve only if it engages correctly and arrange Miele service with the full model and serial information.
Work through in order
Diagnostic checks
Use only checks that match the exact appliance or system and its official guide.
-
Check 1
Read the full rating-label identity and record the model as G 6365 SCVi only if the label matches; also record the serial number before ordering or dismantling anything.
Expected result: The label matches G 6365 SCVi, identifies the SCVi SF variant, or does not match either documented variant.
Next step: Use the exact model and serial number for the operating manual and Miele Service. Do not order a drain pump or blade from a different model based only on appearance.
Why this matters
Why: Miele's specification sheet lists G 6365 SCVi and G 6365 SCVi SF as separate Dimension models, so a close-looking model name is not enough to establish pump compatibility.
-
Check 2
Turn off the dishwasher and unplug it before opening the wash cabinet area. Scoop standing water out with a small container, then remove the filter combination as described by Miele.
Expected result: The appliance is fully disconnected and the wash cabinet is accessible without reaching into energized parts, or power cannot be safely isolated.
Next step: If power cannot be isolated safely, stop and arrange service. Do not continue with the filter, valve, or pump inspection while connected to power.
Why this matters
Why: Miele makes power disconnection and water removal the first steps before drain-pump cleaning; unsafe isolation is a stop condition.
-
Check 3
With power disconnected, inspect the filter area and non-return valve for a visible foreign object, and remove only an object that can be reached without forcing or placing fingers near unseen glass. Leave the valve and cover accessible for correct refitting.
Expected result: A removable object is present, or the area is clear but the impeller or cover shows damage.
Next step: Remove only the visible obstruction. If the cover, valve, or impeller is damaged or cannot be handled safely, stop and contact Miele Service.
Why this matters
Why: Miele identifies foreign objects as a cause of drain-pump blockage but warns that glass splinters are difficult to see and the components are delicate.
-
Check 4

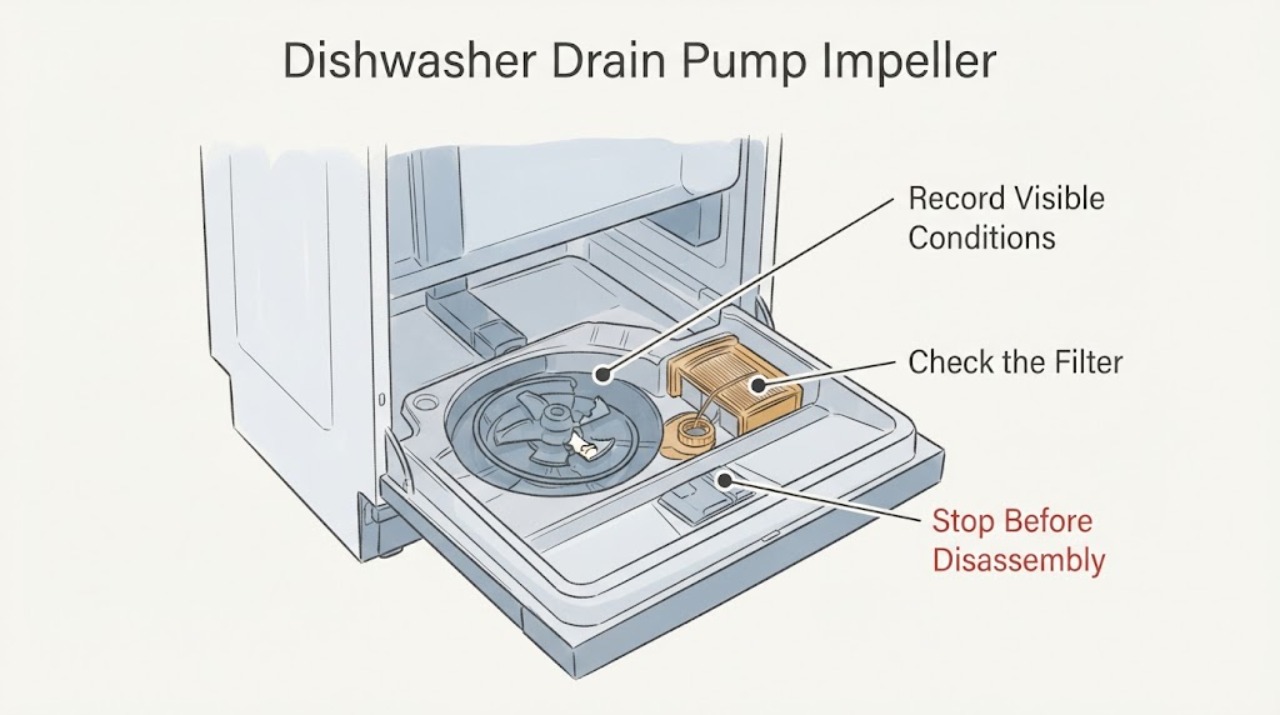

Check the drain-pump impeller by gently turning it by hand, without tools, bending the blades, or trying to reshape a damaged piece.
Expected result: The impeller turns with the little resistance Miele describes, or a blade is chipped, broken, missing, loose, or the impeller binds.
Next step: If any blade is damaged or the impeller binds, do not run the dishwasher or apply adhesive. Refit the cover or valve only if its catch engages correctly, then arrange model-matched service.
Why this matters
Why: A little resistance is the official expected check; visible blade damage or binding is not established as a removable blockage and cannot be safely converted into a blade repair from the available model evidence.
-
Check 5
Only if no blade damage is visible, the foreign object is removed, and the non-return valve, drain-pump cover, and filter combination can be reinstalled flush and fully engaged, restore power and run one normal program to check drainage.
Expected result: The water is pumped away normally, or water remains and the machine produces grinding or drainage symptoms.
Next step: If drainage is still abnormal, stop testing and contact Miele Service with the model, serial number, observed blade condition, and any foreign object found. Do not run the appliance with a broken blade or an improperly engaged cover.
Why this matters
Why: Miele says to verify whether the water is pumped away after the cleaning steps; a persistent fault may involve the drain path, pump, valve, or another model-specific condition.
Use your observations
Decision map
Find the observation that best matches what you see, then follow the next safe action.
-
PATH 01Next step
What you see
The impeller has a visibly broken, missing, loose, or sharply damaged blade, or it binds instead of turning with the small resistance described by Miele.
Do this next
Leave the dishwasher unplugged, avoid further probing, and arrange Miele Service with the G 6365 SCVi identity and serial number.
Why this path and its safety boundary
Why it matters: This is mechanical damage or an unresolved pump obstruction, not a confirmed cleaning-only condition. The opened Miele pages do not support gluing, reshaping, or selecting a replacement part for this exact model without service confirmation.
-
PATH 02Next step
What you see
A reachable foreign object is removed, the impeller turns with the expected little resistance, and the cover, valve, and filter can be reinstalled correctly.
Do this next
Reinstall each part so its catch engages and the filter lies flat, then make one normal drainage check. Stop and call service if the fault returns.
Why this path and its safety boundary
Why it matters: A foreign-object blockage is more plausible than a confirmed broken impeller, but the check does not prove the pump is undamaged.
-
PATH 03Next step
What you see
Water remains after the normal drainage check, or grinding continues after visible debris is removed.
Do this next
Check only accessible hose kinks or an accessible drain connection without opening the appliance. If the hose is damaged or the fault persists, contact Miele Service.
Why this path and its safety boundary
Why it matters: Miele's drainage guidance keeps the drain pump, non-return valve, drain hose, and on-site drain in the diagnostic path; the public evidence does not identify which internal part has failed.
-
PATH 04Next step
What you see
The rating label is not G 6365 SCVi or G 6365 SCVi SF, or the serial/model identity cannot be read.
Do this next
Stop part selection and use Miele's manual finder or service channel with the readable serial information. Do not apply this page's component fit to another model.
Why this path and its safety boundary
Why it matters: The exact model scope is unresolved; Miele states that model-specific drain-pump information is in the operating instructions.
Helpful context
Understand the symptom
Confirm the assigned model before ordering a pump
Miele's official specification sheet places G 6365 SCVi in the Dimension fully integrated dishwasher series. The title identifies the model but does not establish a pump part number or confirm whether only an impeller blade is replaceable. Record the complete rating-label model and serial information before requesting a part or service, and do not substitute a pump from another Miele dishwasher family.
Inspect the drain path only with power disconnected
Miele's G 1xxx–G 6xxx drainage procedure starts with switching off and unplugging the dishwasher, removing the filter combination, and scooping out remaining water. Its guidance warns about glass splinters in the drain pump and says the components can be damaged by incorrect cleaning. Treat a suspected broken blade as a mechanical damage report: remove only visible debris, do not reach blindly or force the impeller, and stop when the damage is not clearly limited to a removable obstruction.
A visibly broken impeller is a service boundary
Miele's official pages support clearing foreign objects and checking that the impeller turns with a little resistance; they do not provide a G 6365 SCVi blade-replacement procedure or authorize gluing, reshaping, or fitting an unverified pump. If a blade is chipped, missing, loose, or the impeller binds, refit the drain-pump cover or non-return valve only if it engages correctly and leave the dishwasher unused until Miele confirms the model-matched repair.
When checks do not resolve it
Need a professional?
Stop and contact Miele Service if the impeller blade is broken, missing, loose, or binding; glass or sharp fragments may be present; the drain-pump cover or non-return valve will not engage correctly; water remains after the documented external cleaning; the drain hose is damaged; or the exact model and serial cannot be confirmed. Do not run the dishwasher with a damaged blade, glue or bend the impeller, open energized panels, or install an unverified pump assembly.
Common questions
FAQ
Can I glue a broken drain-pump impeller blade on a Miele G 6365 SCVi?
No. Miele warns that the drain-pump components are delicate, and the opened guidance does not provide an adhesive repair or confirm that an individual blade is replaceable. Leave the dishwasher unused and ask Miele Service to confirm the model-matched repair.
What should the Miele dishwasher drain-pump impeller feel like?
Miele says to check the impeller by manually turning it and that a little resistance is expected. A binding impeller or visible broken, missing, or loose blade is a stop condition for service rather than a reason to force it.
Does the Miele G 6365 SCVi use the same drain pump as every Miele dishwasher?
Do not assume that. Miele identifies G 6365 SCVi as a Dimension model and says model-specific pump and cleaning information belongs in the operating instructions. Confirm the full model and serial number before ordering any part.
Read the exact guide
Official sources
- Water not pumped away (G 1xxx–G 6xxx)Miele USA · Official Miele support for the G 1xxx–G 6xxx dishwasher family; G 6365 SCVi is independently identified in Miele's Dimension specification sheet. Used for power isolation, water removal, filter/non-return-valve handling, impeller inspection, and service escalation.
- Futura Series Fully Integrated DishwashersMiele USA · Official Miele USA specification sheet; page 1 lists G 6365 SCVi under the Dimension fully integrated dishwasher series. It establishes model identity and does not establish a drain-pump part number.
- Grinding noises in wash cabinetMiele USA · Official Miele dishwasher support used for the foreign-object, glass-splinter, delicate-component, manual-specific, and service boundaries. It does not authorize a G 6365 SCVi impeller-blade repair or part substitution.
