On this page
Start here
Quick answer
Stop loading or running the dishwasher if the upper rack track is cracked, detached, bent, or allowing the rack to drop. Remove the dishes carefully, keep hands clear of sharp broken pieces, and inspect only the accessible rack, wheels, rail and track stops with the appliance cool and controls off. Whirlpool says the upper rack rides on side rails through wheels or rollers, and that movement problems can also come from an open stop, debris, shipping material or a large item interfering with the rack. If the rail or rack hardware is visibly broken, do not force the rack, tape or glue it, or keep running cycles; record the complete model number and use Whirlpool's model-specific manual/parts and service path.
Work through in order
Diagnostic checks
Use only checks that match the exact appliance or system and its official guide.
-
Check 1
Stop the dishwasher and remove dishes from the upper rack only if the rack is stable enough to handle without forcing it. Keep fingers away from cracked plastic, sharp wire or a detached rail, and do not start another cycle to see whether the rack settles.
Expected result: The rack stays in both rails, or it sags, drops, binds, tilts or has loose/broken pieces.
Next step: If the rack is unstable or pieces are sharp/loose, leave it empty and out of normal use. Do not tape, glue, bend or force the track; move to model identification and service.
Why this matters
Why: A stable rack may have a loading or seating issue; sagging, dropping or visible breakage indicates that the support path is not reliable and the rack should not carry dishes.
-
Check 2
With the appliance cool and controls off, look along both upper-rack rails and the rack wheels/rollers. Check whether a wheel is outside the rail, a front stop is open, debris or shipping material is caught, or a large pan or utensil is blocking movement. Do not remove a rail or cover to inspect it.
Expected result: The wheels and stops are intact but mis-seated or obstructed, or the rail, wheel mount, adjuster or stop is cracked, bent, missing or detached.
Next step: Clear only a loose external obstruction. If any support component is damaged or the rack still binds, stop and use the exact model for parts/service matching.
Why this matters
Why: Whirlpool identifies wheel engagement, stop position, debris, shipping material and oversized items as accessible causes of movement trouble. A cracked, bent or missing support component is evidence of damage, not a simple obstruction.
-
Check 3
Only when the rack and both rails appear intact, remove all dishes and follow Whirlpool's model-appropriate removal/reinstallation method: pull the rack to its stop, open the track stops as the guide shows, align the back and front rollers with the track slots, then close both stops.
Expected result: The rack rolls smoothly and remains captured in both rails, or it will not align, a stop will not close, or a wheel immediately leaves the rail.
Next step: If it reseats and remains stable, leave the rack empty for a careful manual check of clearance before normal loading. If it will not reseat or a stop/wheel is damaged, do not run the dishwasher and arrange service.
Why this matters
Why: Smooth travel and closed stops support a seating problem that may have been corrected. Failure to align or retain the rack points to a damaged or model-specific assembly that has not been identified.
-
Check 4
With the rack empty and fully seated, gently slide it through its travel by hand. Confirm it does not contact the door, tub sides, water-feed tube or spray arm, and that no item projects into the rail path. Do not run a cycle if clearance is uncertain.
Expected result: The rack travels evenly with clearance, or it catches, twists, rubs or interferes with a spray component.
Next step: Remove only a movable loading obstruction. If rubbing or twisting remains, keep the rack out of service and have the exact assembly evaluated; do not force the door or spray arm.
Why this matters
Why: Even travel is consistent with a correctly seated rack; catching or interference means the rack may be bent, the rail may be misaligned, or loading/installation is still unsafe.
-
Check 5
Record the complete Whirlpool model and serial information, which side of the top rack is affected, whether the rail, wheel, adjuster or stop is visibly damaged, and whether the problem began after rack removal, loading or an impact. Send those details and safe exterior photos to Whirlpool support or a qualified appliance servicer.
Expected result: The model number is readable and the damaged area is identifiable, or the model is missing and only a generic Whirlpool dishwasher is known.
Next step: Use the exact model for the parts diagram and manual. If damage is confirmed or the rack cannot stay captured, arrange service instead of ordering a generic track or continuing to use the rack.
Why this matters
Why: Whirlpool uses the model number to provide the correct manuals and support information; without it, the compatible rail/roller/adjuster design and removal method cannot be verified.
Use your observations
Decision map
Find the observation that best matches what you see, then follow the next safe action.
-
PATH 01Next step
What you see
If both wheels are in the rails, the stops are closed, no support piece is cracked, and the rack moves smoothly after a recent removal
Do this next
Keep the rack empty for a final clearance check, then load it lightly only if the exact model instructions allow normal operation; stop if it slips or binds again.
Why this path and its safety boundary
Why it matters: The rack may have been mis-seated or obstructed rather than having a confirmed broken track.
-
PATH 02Next step
What you see
If a track stop is open, a wheel is outside the rail, or debris/packing material blocks the path
Do this next
Remove only the loose obstruction and reseat the rack using the Whirlpool guide for the model; do not force a stop or wheel into place.
Why this path and its safety boundary
Why it matters: Whirlpool identifies these as accessible causes of a rack that pulls out or has movement trouble.
-
PATH 03Next step
What you see
If the track, wheel mount, adjuster or stop is cracked, bent, missing, or detached
Do this next
Leave the rack unloaded and do not run the dishwasher. Use the complete model number for the correct parts diagram or arrange qualified service.
Why this path and its safety boundary
Why it matters: The upper rack has a structural support fault, and the available evidence does not identify a universal replacement part.
-
PATH 04Next step
What you see
If the rack rubs the door, tub or spray arm, or cannot remain captured in both rails
Do this next
Stop normal use and have the rack/rail assembly checked; do not bend, glue or shim the track or continue testing with dishes.
Why this path and its safety boundary
Why it matters: The rack is not safely aligned even if the break is small or not yet visible.
Helpful context
Understand the symptom

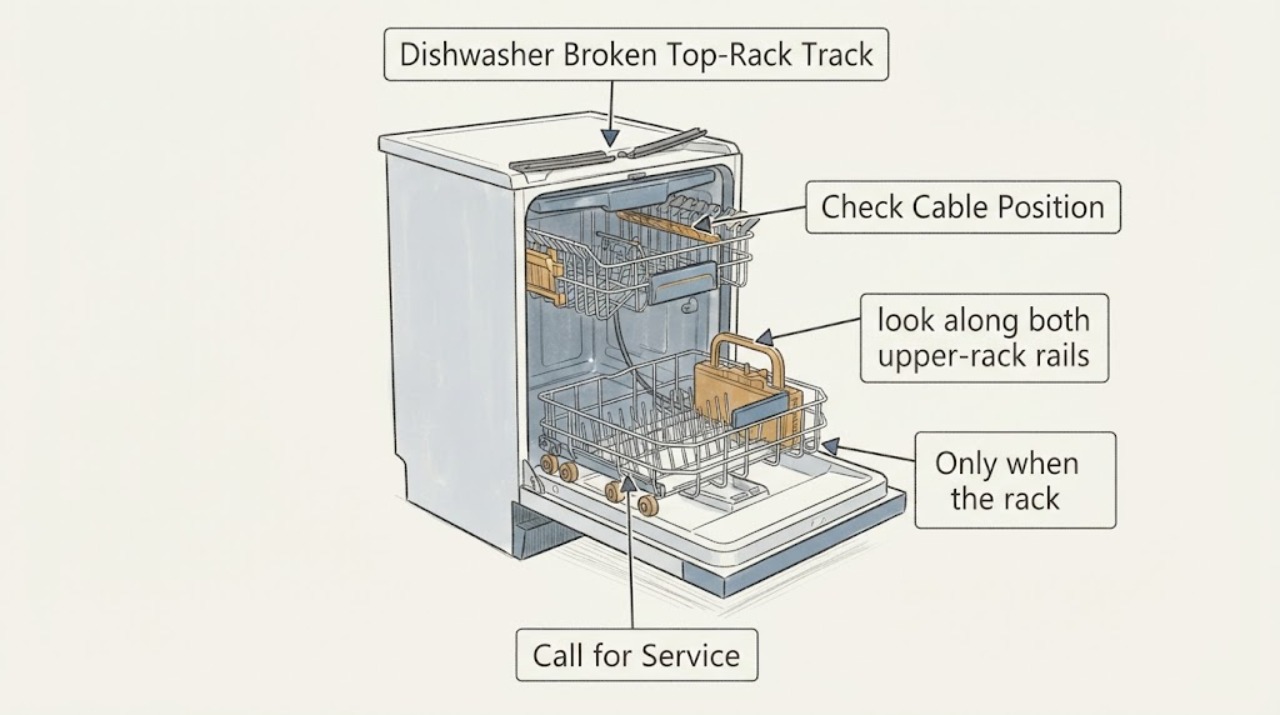

A broken upper-rack track is a load and movement hazard
The upper rack is supported by side rails, wheels or rollers, stops and sometimes adjusters. A rack that drops, binds, or pulls away from a rail can let dishes fall and may interfere with the spray arm or door. Treat a visibly cracked or detached piece as damage; do not make the rack carry a load while you are trying to identify the part. Whirlpool's official guide uses model-specific instructions and says the rack hardware should be handled gently.
Separate a mis-seated rack from a broken rail
If the rack was recently removed or pulled out, the wheels may simply be outside the rail or a track stop may still be open. Whirlpool says the rack can pull out when a stopper is open and recommends checking wheel engagement, stop position, debris, shipping material and oversized objects that interfere with movement. Those checks can explain a loose rack, but they do not repair a cracked rail, broken wheel mount or bent track.
Use the exact model before ordering a rack part
Whirlpool's manuals page requires the model number to retrieve the correct appliance literature, and its Owner's Center says model and serial information are needed for support. Track, roller, adjuster and stop designs vary, so the brand name and the phrase “top rack track” do not establish a compatible part. Photograph the visible damage without removing the rail or forcing the rack.
When the rack should stay out of service
Keep the dishwasher out of normal use when the rack cannot stay in both rails, a wheel or track stop is missing, a rail is cracked or bent, the rack rubs the door or spray arm, or broken pieces can fall into the tub. Whirlpool directs owners to service when the rack still has movement problems after the accessible installation and obstruction checks.
Only after diagnosis
Potential parts
- upper rack track or rail assembly
Consider only after the complete model number and the damaged rail are confirmed in Whirlpool's model-specific literature or parts lookup.
Whirlpool rack designs vary; verify the exact model and side before ordering. - upper rack wheel, adjuster or track stop
Consider only when inspection identifies a broken wheel, adjuster or stop and the model-specific diagram confirms that component.
Do not substitute a generic wheel or stop based on appearance alone.
When checks do not resolve it
Need a professional?
Arrange Whirlpool or qualified appliance service when the upper rack cannot remain in both rails, a rail/wheel/adjuster/stop is cracked or missing, the rack rubs the door or spray arm, or model-specific removal is needed.
Have this ready
- Provide the complete model and serial information, affected side, visible component damage, whether the rack was recently removed or overloaded, and safe photos taken with the rack unloaded.
Common questions
FAQ
Can I keep using the Whirlpool dishwasher if the top-rack track is broken?
Do not run a loaded dishwasher when the rack is cracked, detached, dropping, rubbing the door or spray arm, or unable to stay in both rails. A small visible break can still let dishes fall or damage the tub; identify the model and arrange the correct repair first.
Could the rack simply have come out of the track?
Yes, if the rack was recently removed or pulled out, a wheel can be outside the rail or a track stop can be open. Whirlpool says to check wheel engagement and stop position, plus debris or oversized objects. If a part is cracked or will not stay captured, treat it as damage instead of forcing it.
Do I need the model number to buy a Whirlpool upper-rack track?
Yes. Whirlpool directs owners to enter the model number for the correct manuals and literature, and support uses model and serial information. Track, wheel, adjuster and stop designs can differ, so do not match a part by brand name or photo alone.
Can I glue or tape a broken rack piece temporarily?
No. Adhesive or tape does not restore a rack rail or stop’s load-bearing alignment and can leave loose material in the dishwasher. Keep the rack unloaded and use the exact model parts/service route.
Read the exact guide
Official sources
- Top Rack Falls Down - DishwasherWhirlpool Product Help · Opened Whirlpool Product Help guidance for dishwashers whose top rack falls or has movement issues. It covers closed rack stops, wheels engaged in the rail, debris, shipping material and large-object interference.
- Welcome to Whirlpool Customer CareWhirlpool · Opened Whirlpool Owner's Center. It says model and serial information are needed for support and identifies dishwasher model-number locations on the frame or beneath the control panel.
- Kitchen And Laundry Appliance Manuals | WhirlpoolWhirlpool · Opened Whirlpool's manuals page. It requires a model number to retrieve the correct manuals and explains that manuals contain appliance-specific information about parts and accessories.
- Removing the Top Rack from the DishwasherWhirlpool Product Help · Opened Whirlpool's official upper-rack guide. It describes the rail-and-wheel structure, instructs removing dishes, opening stops, lifting wheels out, aligning back/front rollers and closing both stops; it directs owners to the exact Owner's Manual for model variations.
