Whirlpool wdf520padm9 dishwasher circulation pump failure — home use · 4 3 7 1

Use only checks that match the exact appliance or system and its official guide.

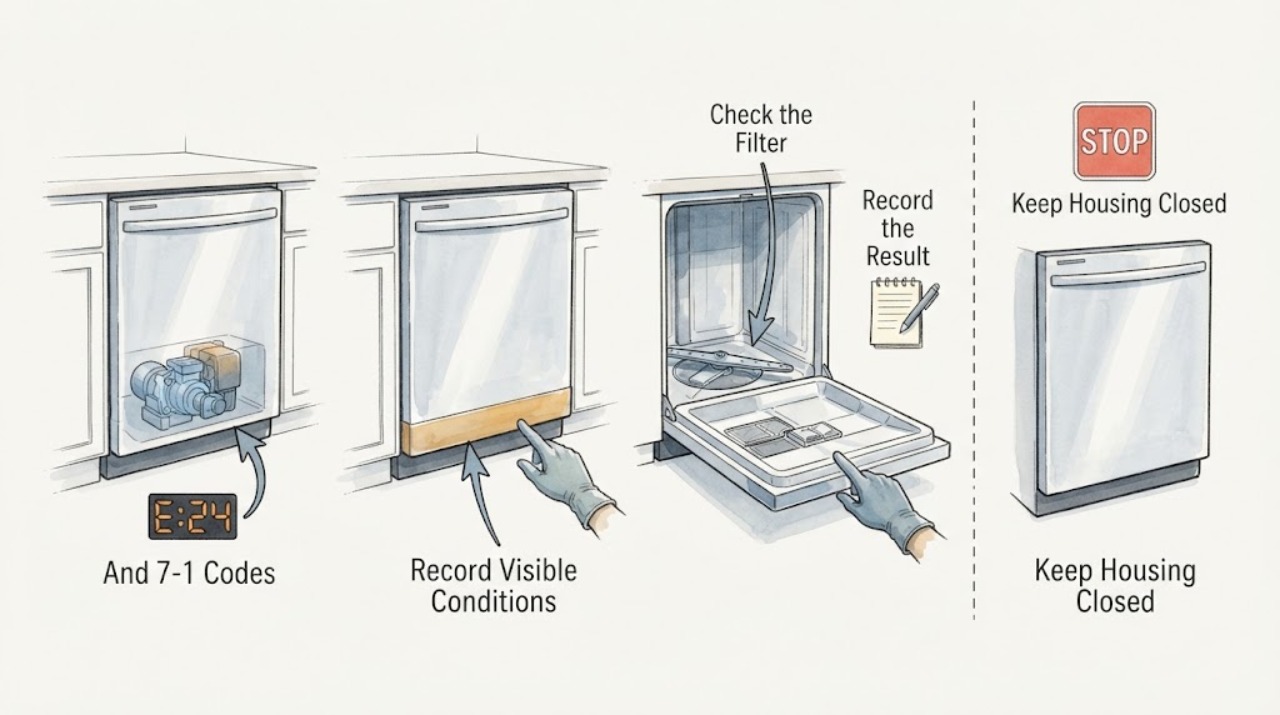

1. Check 1

   Record the code exactly as it appears. On a flashing-clean-light panel, count the first flashes, pause, count the second flashes, and note whether the pattern repeats; do not rewrite 4-3 and 7-1 as a single generic pump code.

   Expected result: The sequence is confirmed as 4-3, 7-1, both, or a different pattern.

   Next step: Give the full sequence and model WDF520PADM9 to service. Do not select a pump solely because the title or code pair contains “circulation pump.”

   Why this matters

   Why: Whirlpool describes the first number as the function and the second as the problem; the exact W11266092 sheet assigns 4-3 to wash motor/motor not running and 7-1 to heating/no heat. A different pattern may indicate a different subsystem.

2. Check 2

   If no water is leaking, no breaker has tripped, and the dishwasher is not overheating, press Cancel/Drain and let the drain operation finish. Then visually check the tub floor for standing water and the visible filter/spray-arm area for obvious food debris or a blocked arm, with power disconnected before touching removable user parts.

   Expected result: The tub drains normally, water remains, the filter/arm is visibly obstructed, or there is a leak/odor/electrical warning.

   Next step: For a visible user-cleanable obstruction, clean and reseat only as the exact owner manual permits. For standing water, a leak, odor, or electrical warning, keep the dishwasher off and arrange service; do not reach under the unit.

   Why this matters

   Why: A drain result or visible obstruction can change the immediate next step, but neither confirms a failed wash motor. A leak, odor, or electrical warning is a safety condition rather than a pump diagnosis.

3. Check 3

   Use Whirlpool's control reset only after recording the codes and only when the appliance has no leak or electrical hazard: disconnect power at the accessible plug or dedicated breaker, wait at least one minute, restore power, close the door firmly, and select a cycle.

   Expected result: The codes clear and the cycle completes, or 4-3/7-1 return or the cycle stalls again.

   Next step: If the code returns or the dishwasher still does not wash, stop repeated resets and provide the code history and visible symptoms to service. Do not run repeated diagnostic cycles to force a conclusion.

   Why this matters

   Why: Whirlpool says a power cycle can clear a transient control error, but a returning concern requires Customer Care or an authorized technician. A reset does not prove that the wash motor or pump is healthy.

4. Check 4

   Do not remove the toe panel, control, wiring, pump, or heater, and do not perform live voltage or resistance checks. If service is arranged, provide the exact model/serial, the code sequence, whether water remains, whether spray arms moved, and whether heating or cleaning performance changed.

   Expected result: The issue is limited to recorded codes/poor washing, or there is smoke, melted wiring, a tripped breaker, flooding, or overheating.

   Next step: For ordinary recurring codes, book Whirlpool/qualified service. For smoke, burning odor, flooding, or electrical damage, disconnect power and water only when safely accessible and obtain urgent professional help.

   Why this matters

   Why: The exact technician sheet lists multiple possible wash-motor and heating causes and reserves voltage/component tests for authorized technicians. Hazard symptoms require isolation rather than more diagnosis.
