Amana abb2224brm refrigerator damaged crisper bin — home kitchen

Use only checks that match the exact appliance or system and its official guide.

1. Check 1

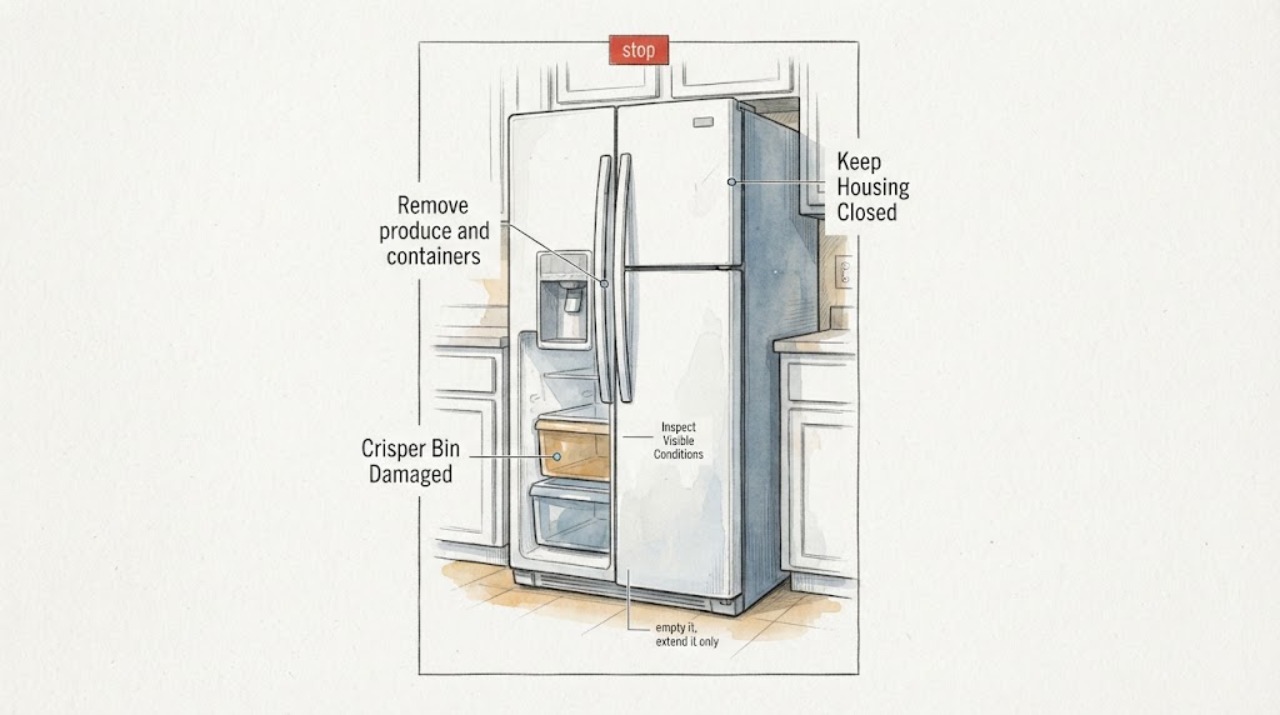

   Remove produce and containers from the affected crisper, and keep the cracked or unstable bin out of use while you inspect it. If you need to clean around it, disconnect refrigerator power at the accessible plug first, as Amana's cleaning guidance directs, and handle any glass cover with both hands.

   Expected result: The bin has a sharp crack, loose fragment, broken front or tab, a distorted frame, or glass damage; or the damage is only a surface mark with no sharp edge and the bin still sits squarely.

   Next step: Transfer food to a sound container and photograph the damage. Do not tape, glue, heat, drill, or sand the bin. If glass or a support is involved, leave the component out and request model-matched service.

   Why this matters

   Why: Sharp, loose, structural, or glass damage can create a food-contact, cut, breakage, or fit risk. A surface mark alone does not establish that the bin is safe for continued food storage, but it may be a different service decision from a broken rail or support.

2. Check 2

   With the bin empty, look at the visible drawer path, rails or posts, tabs, frame, and surrounding shelf. Remove only loose food or containers that visibly obstruct the path; do not remove a rail or trim piece.

   Expected result: The bin is intact but blocked or dirty; it is not seated on a glide or post; or a plastic tab, rail, frame, or cover is visibly broken.

   Next step: For an obstruction, clear the visible item and stop if the drawer still binds. For a broken or displaced support, do not force the drawer or test it under load; keep the refrigerator arranged safely and move to exact documentation or service.

   Why this matters

   Why: Amana says slide problems can result from incorrect installation, dirty channels, or an obstruction. A broken support or a bin that cannot ride on its intended path is outside that simple obstruction check.

3. Check 3

   If the drawer must be removed for a safe visual check, empty it, extend it only to its normal stop, and use the general Amana bin guidance: lift or tilt the front only as the model's arrangement allows, then withdraw it without twisting. Reinstall only by aligning the visible frame rails or supports and pushing it back without force.

   Expected result: The drawer comes out and returns smoothly with the rails aligned; it stops, twists, catches, or the bin will not sit level.

   Next step: Stop at the first resistance and do not use tools or remove the cabinet liner. Leave the affected bin out if it cannot sit safely, and provide photos of the rails, tabs, frame, and label to Amana service.

   Why this matters

   Why: A smooth empty movement is consistent with a removable-bin inspection. Catching, twisting, an uneven seat, or a drawer that will not close indicates an unresolved fit or support issue; it does not identify a replacement part by itself.

4. Check 4

   Read the complete refrigerator rating label, including any suffix after ABB2224BRM, and record whether the damage is to the removable pan, crisper frame, glass, center rail, cover, or cabinet support. Compare that complete identity with Amana's model-specific manual or service record.

   Expected result: The label is exactly ABB2224BRM with no suffix; it includes a suffix such as ABB2224BRM02; or the label is missing or unreadable.

   Next step: Do not order a bin or frame from a generic listing, measurement, color, or photograph. If the label cannot be read, arrange service with the serial number and photos; if the suffix differs, ask Amana to confirm the exact parts diagram.

   Why this matters

   Why: Amana's public comparison chart confirms the ABB2224BRM family, but the opened repair-parts list is explicitly for ABB2224BRM02 color variants. The visible component name and full suffix are needed before any compatibility claim.

5. Check 5

   Prepare a service request with the complete model and serial information, two or more photos of the damaged bin and its supports, the drawer location, and whether the door closes and the drawer remains level. Keep the affected component unloaded until compatibility is confirmed.

   Expected result: The bin cannot close or sit level, a rail/frame/glass or cabinet support is damaged, a sharp fragment is present, or the exact model suffix or component identity remains uncertain.

   Next step: Use Amana's Owner's Center/manual and service path for the exact appliance. Do not expose a guessed part number or commercial destination as a confirmed replacement, and do not continue loading a drawer that binds or is structurally damaged.

   Why this matters

   Why: These findings require a model-matched replacement or service assessment; they do not establish that a pan-only replacement will restore the drawer or that an adjacent component is interchangeable.
