Quick answer
For the US Bosch 300 Series WTG86400UC/01, a true E06 is not a lint-cleaning reminder: Bosch's US dryer error table defines E06 as a heating-circuit fault that must be handled by an authorized technician. The exact WTG86400UC manual uses a separate lint/heat-exchanger indicator (shown as é) and allows the user to switch off, let the dryer cool, clean the accessible lint filter, and clean the heat exchanger only by the manual's procedure. Photograph the display before doing anything. If it really says E06, stop using the dryer and arrange service; do not keep resetting it or open the heater. If it is the lint indicator, use only the cool, dry, accessible cleaning steps and stop if the indicator returns, heat is excessive, or there is smoke or a burning smell.
Work through in order
Diagnostic checks
Use only checks that match the exact appliance or system and its official guide.
-
Check 1

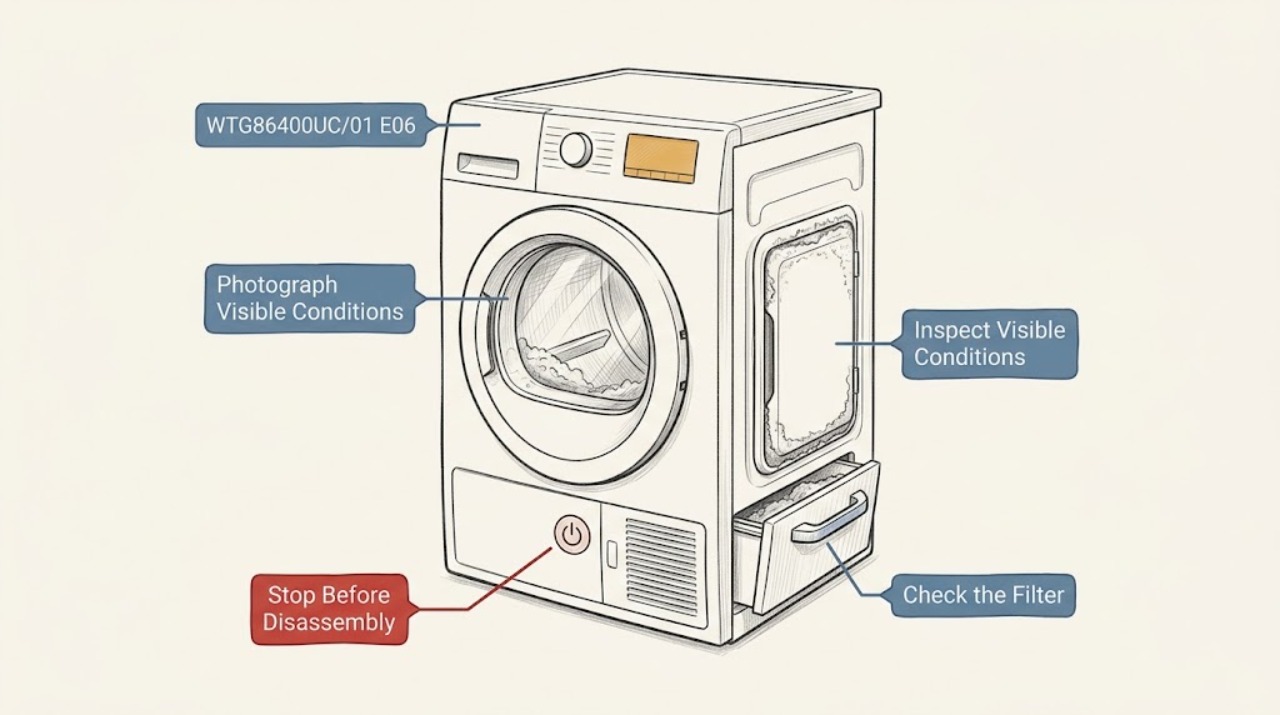

Before pressing Start/Pause or switching the dryer back on, photograph the complete display and record the exact model from the rating plate. Compare the characters with E06, the separate lint/heat-exchanger symbol, DR, or another message; do not infer the code from a blurry icon.
Expected result: The display clearly says E06, shows the lint/heat-exchanger indicator, shows DR, or cannot be identified.
Next step: Follow only the matching branch below. If the characters cannot be distinguished, preserve the photo and use the exact WTG86400UC/01 support record rather than guessing from another Bosch model or market.
Why this matters
Why: On Bosch's US dryer table, E06 is a heating-circuit fault. The WTG86400UC manual assigns the lint filter and heat exchanger to a separate indicator and assigns DR to a drain condition, so these branches must not be merged.
-
Check 2
If the display is confirmed as E06, rotate the programme selector to Off and stop using the dryer. Disconnect it from the power outlet only by a safe, dry, accessible method; do not reach behind a wet machine or open the cabinet to look for a heater, fuse, wiring, or control part.
Expected result: E06 clears after power removal, remains present, or returns when the dryer is next used; alternatively the display was actually the lint indicator.
Next step: Leave a true E06 dryer unused and arrange authorized service with the display photo, WTG86400UC/01 E-Nr., FD number, and any heat, noise, or smell observed. Do not repeat the cycle to see whether it returns.
Why this matters
Why: Bosch US identifies E06 as a heating-circuit fault and says it can only be eliminated by an authorized technician. A temporary clear does not establish that the heating circuit is safe, and a lint-cleaning step is not an E06 repair.
-
Check 3
If the display is the lint/heat-exchanger indicator rather than E06, switch the dryer Off and wait until the door, drum, laundry, and accessible service area are cool. Pull out the accessible lint filter, remove fluff from the filter recess without dropping it into the open shaft, rinse a severely dirty filter with warm water, and dry it thoroughly before refitting.
Expected result: The filter is visibly loaded with lint or residue, the filter frame/seal is damaged, or the filter is clean, dry, and correctly reinserted.
Next step: Refit the intact, completely dry filter. If the indicator returns or the filter cannot seat without force, stop using the dryer and arrange service; never operate it without the filter.
Why this matters
Why: The exact manual says a dirty filter lengthens drying time and that the lint indicator can interrupt a programme. A damaged filter or a clean filter with a returning indication is not fixed by running without the filter or by reaching into the blower/heater area.
-
Check 4
Only if the exact manual's maintenance flap is accessible without moving the dryer and there is no smoke, abnormal heat, water near electrics, or damaged part, inspect and clean the heat exchanger after cool-down. Use warm water only, no hard or sharp object, remove visible lint from the seals, let the exchanger and cap dry fully, and refit the locks and flap as shown in the manual.
Expected result: The heat exchanger or cap is visibly linted, the seal is dirty, the part will not release normally, or the accessible exchanger is clean and intact.
Next step: If the cleaning requires force, cabinet access, sharp tools, or removal of a part not described by the manual, stop and call service. Dry and refit the exchanger before any permitted maintenance-indicator acknowledgement.
Why this matters
Why: Bosch's WTG86400UC manual treats the heat exchanger as a user-maintenance item but warns not to damage it with sharp tools. A stuck, bent, leaking, or inaccessible assembly crosses the user boundary and cannot be safely diagnosed as an E06 cause.
-
Check 5
From outside the dryer, check that the front air inlet is not covered by laundry, a box, or a room fitting, and note whether the room is unusually cold, hot, humid, or enclosed. Do not add an exhaust duct or alter the cabinet to compensate for a condenser dryer's code.
Expected result: The front air inlet is obstructed, the dryer is in an unsuitable environment, or the air path and room conditions are normal.
Next step: Remove only a plainly visible external obstruction and improve safe room air circulation. If E06, excessive heat, or the lint indicator persists, keep the dryer off and arrange model-specific service.
Why this matters
Why: The WTG86400UC manual says not to restrict the front air inlet, recommends an open area for best drying, and gives an allowable ambient range of 41–95°F (5–35°C). These conditions can lengthen drying or worsen a maintenance indication, but they do not turn E06 into a lint code.
-
Check 6
After a lint/heat-exchanger cleaning, use the manual's Start/Pause acknowledgement only once and only when the display is the maintenance indicator, the filter and exchanger are dry and correctly fitted, and there is no safety symptom. Record whether it clears, whether the programme starts, and whether heat or drying performance is normal; do not use this step for E06.
Expected result: The maintenance indicator clears and the dryer behaves normally, the indicator returns, drying remains slow, or the dryer becomes excessively hot or emits smoke/odor.
Next step: If the indicator returns, drying remains abnormal, or any odor/smoke/excessive heat appears, switch Off, disconnect safely, and arrange authorized service. Do not keep acknowledging the display or run without the filter.
Why this matters
Why: The manual documents Start/Pause as the acknowledgement for the lint-filter or heat-exchanger indication. A returning indication after the accessible steps suggests a persistent airflow, heat-exchanger, sensor, or other fault that the user cannot identify, while heat or smoke overrides any reset.
Use your observations
Decision map
Find the observation that best matches what you see, then follow the next safe action.
-
PATH 01Next step
What you see
The photographed display is a true E06 on the Bosch WTG86400UC/01, even if the filter appears dirty or the user expected a lint warning.
Do this next
Stop using the dryer and arrange authorized Bosch service. Provide the E-Nr./FD, exact display photo, and any heat, odor, noise, or interruption details; do not reset repeatedly or open the cabinet.
Why this path and its safety boundary
Why it matters: Bosch US defines E06 as a heating-circuit fault, not the lint-filter maintenance branch. Visible lint can coexist with the code but does not prove the cause or make the heater safe to service at home.
-
PATH 02Next step
What you see
The display is the WTG86400UC manual's lint/heat-exchanger indicator, the filter or exchanger is visibly dirty, and there is no smoke, burning odor, excessive heat, water near electrics, or damaged part.
Do this next
Cool the dryer, clean and fully dry the accessible filter and, when safely accessible, the heat exchanger exactly as the manual describes. Acknowledge the maintenance indication once; stop if it returns.
Why this path and its safety boundary
Why it matters: The result fits the documented user-maintenance branch, not a confirmed replacement part or internal heating diagnosis.
-
PATH 03Next step
What you see
The lint/heat-exchanger indicator returns after both accessible surfaces are clean, dry, intact, and correctly fitted, or drying remains slow with a clear front air inlet.
Do this next
Keep the dryer out of use and arrange authorized service. Do not buy a heater, thermal fuse, fan, sensor, or control board from the indicator alone and do not continue resetting it.
Why this path and its safety boundary
Why it matters: A persistent airflow, heating, sensor, condenser, or other internal condition is more likely, but the display and user checks do not identify which component has failed.
-
PATH 04Next step
What you see
The display is DR or there is water remaining, a leaking drain hose, or a blocked visible drain route rather than E06 or the lint indicator.
Do this next
Switch Off and inspect only the visible drain hose for a kink, restriction, or leak as the manual permits. If water is near electrical parts, a connection leaks, or the route needs the dryer moved, disconnect safely and arrange service.
Why this path and its safety boundary
Why it matters: The manual assigns DR to incomplete drainage and directs a visible drain-hose check; this is a separate condensate path and should not be used to explain a true E06.
-
PATH 05Next step
What you see
There is smoke, a burning smell, sparking, melting, an unusually hot cabinet or laundry, a damaged cord, repeated breaker trips, or any need to remove a panel or reach energized parts.
Do this next
Stop the programme, keep clear, disconnect power only if it is safely accessible, and seek appropriate urgent appliance or electrical help. Do not restart, touch hot parts, open the cabinet, bypass a safety device, or run a cycle to confirm the fault.
Why this path and its safety boundary
Why it matters: This is a fire, electrical, or burn hazard, not a routine lint-cleaning decision. The exact code no longer changes the immediate stop boundary.
Helpful context
Understand the symptom
The first decision is the display identity, not the amount of lint. Bosch's US code table puts E06 in the heating-circuit branch. In the WTG86400UC manual, a separate é indicator means the lint filter or heat exchanger needs cleaning, and the troubleshooting table describes a documented acknowledgement for that maintenance indication. A lint-looking display must not be used to reinterpret a real E06 as a user-cleanable blockage.
WTG86400UC/01 is a Bosch condenser tumble dryer. It does not use a normal outdoor exhaust-duct diagnosis, but its manual still requires an unobstructed front air inlet, suitable room conditions, and clean lint and heat-exchanger surfaces. Do not remove panels, bypass a safety device, or perform a live heating test to prove what E06 means.
When checks do not resolve it
Need a professional?
Arrange authorized Bosch service for a true E06, an unidentified display, a lint or heat-exchanger indicator that returns after the documented cool, clean, dry, and single acknowledgement steps, a damaged or inaccessible filter/exchanger, persistent abnormal heat or drying, a DR condition that is not resolved by the visible hose check, or any repair requiring a panel, heater, blower, wiring, or live measurement. Stop immediately for smoke, burning odor, sparks, melting, excessive heat, water near electrical parts, a damaged cord, or repeated breaker trips; disconnect only by a safe external method and seek urgent appropriate help. Do not operate without the filter, bypass safety devices, add an unapproved exhaust route, or order internal parts from E06 alone.
Common questions
FAQ
Does E06 on a Bosch WTG86400UC/01 mean the lint filter is blocked?
Not according to Bosch's US dryer error table. It defines E06 as a heating-circuit fault requiring an authorized technician. The WTG86400UC manual uses a separate lint/heat-exchanger indicator for accessible cleaning, so first photograph the display and distinguish the characters.
Can I clean the lint filter on this Bosch condenser dryer?
Yes, when the dryer is Off and cool, the exact manual describes removing the accessible filter, clearing fluff from its recess, rinsing a severely dirty filter with warm water, drying it thoroughly, and refitting it. Do not operate without the filter or reach into the blower or heater area.
Should I keep resetting E06 after cleaning everything?
No. The manual's Start/Pause acknowledgement is for the lint/heat-exchanger maintenance indication. Bosch US says a true E06 is a heating-circuit fault for authorized service; a temporary clear does not justify repeated operation.
Read the exact guide
Official sources
- Dryer troubleshooting: Dryer is not drying clothes completelyBosch Home Appliances US · Opened Bosch US troubleshooting guidance for general lint, programme, moisture-sensor, air-inlet, and professional-support context; it does not override the exact WTG86400UC/01 manual or define E06.
- Appliance Information - condenser tumble dryer | WTG86400UC/01Bosch US · Opened exact Bosch US service page for WTG86400UC/01; it confirms the 300 Series condenser tumble dryer and links its manuals, support, parts, and service. It does not by itself define E06.
- Bosch Dryer Error CodesBosch US · Opened Bosch US dryer error table. It states that E06 is a heating-circuit fault that can only be eliminated by an authorized technician; it also separately lists E01/E02 for a blocked lint filter.
- Bosch WTG86400UC condenser dryer Use and Care Manual, Installation InstructionsBosch Home Appliances · Opened Bosch's US WTG86400UC manual. The manual states that it covers more than one model, so exact E-Nr. confirmation remains required for variant-specific details; its lint indicator, filter, heat exchanger, air-inlet, drain, and safety instructions are directly applicable to this WTG86400UC family.
