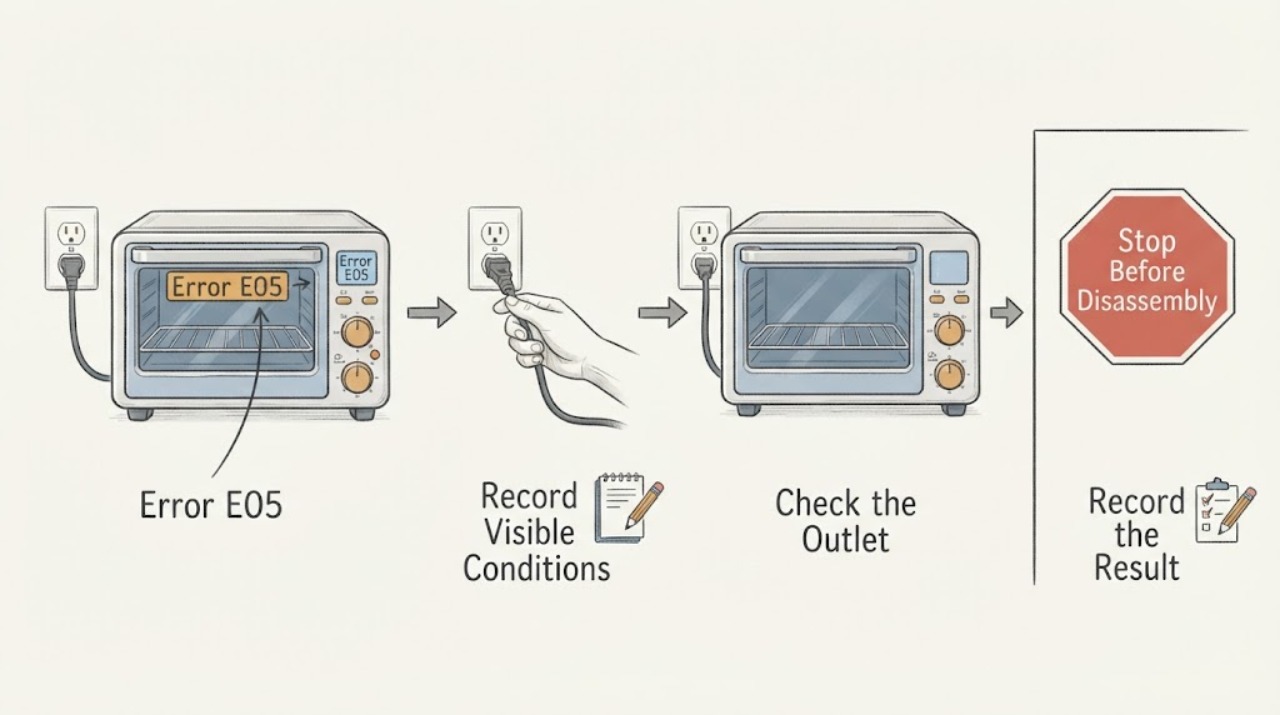

Breville BOV800XL error E05: what it means and what to do

Use only checks that match the exact appliance or system and its official guide.

1. Check 1

   Read the LCD carefully and record E05 exactly, along with the model from the rating label. Do not substitute E03, E04, or a similar-looking display code for E05.

   Expected result: The display clearly reads E05 on a BOV800XL, or the display/model cannot be confirmed.

   Next step: Use the E05 stop-and-service path only when both the code and model are confirmed. If either is unclear, stop and use the exact model manual or Breville support rather than guessing a code definition.

   Why this matters

   Why: The official BOV800XL troubleshooting table gives E05 a specific non-resettable meaning. Other codes in the same table have different meanings and actions.

2. Check 2

   For a confirmed BOV800XL E05, stop the oven and immediately remove the power cord from the wall outlet as Breville's manual directs. Do not keep pressing START/CANCEL, cycling the function dial, or reconnecting power to see whether E05 clears.

   Expected result: The cord is safely removed, or it cannot be removed without contacting a hot, wet, damaged, or otherwise unsafe area.

   Next step: Keep the oven unplugged. If power cannot be isolated safely, leave it untouched and obtain qualified help; do not reach behind the appliance or handle damaged wiring.

   Why this matters

   Why: E05 is documented as non-resettable, so repeated resets are not a supported remedy and could leave a faulted appliance energized.

3. Check 3

   Once the oven is unplugged and cool, record when E05 appeared, which function was selected, whether there was smoke, odor, arcing, unusual heat, or a power interruption, and the model/serial information. Do not remove the outer cover to collect more information.

   Expected result: The event included a visible safety symptom, or E05 appeared without smoke, odor, or visible damage.

   Next step: Give the recorded details to Breville Customer Service. Keep the oven disconnected for any smoke, burning odor, arcing, damaged cord, or abnormal heat; do not perform a live test.

   Why this matters

   Why: The code itself establishes a non-resettable issue but does not identify a heater, sensor, control board, or other internal part. Event details help support route the case without an unsafe internal diagnosis.

4. Check 4

   Use Breville's official BOV800 Smart Oven support hub or Customer Service with the confirmed BOV800XL model, exact E05 display, and the event record. Follow only instructions that match the BOV800XL manual.

   Expected result: Support provides a model-specific next step, or the code remains present with no user procedure offered.

   Next step: Keep the oven unplugged until Breville or qualified service gives a safe, model-specific disposition. Do not open the cabinet, bypass a safety control, or replace a component based only on E05.

   Why this matters

   Why: The BOV800XL manual does not provide a user reset or internal repair for E05; the official route is Customer Service and model-specific repair guidance.
