Electrolux elfe7437aw dryer not completing cycle — e52

Use only checks that match the exact appliance or system and its official guide.

1. Check 1

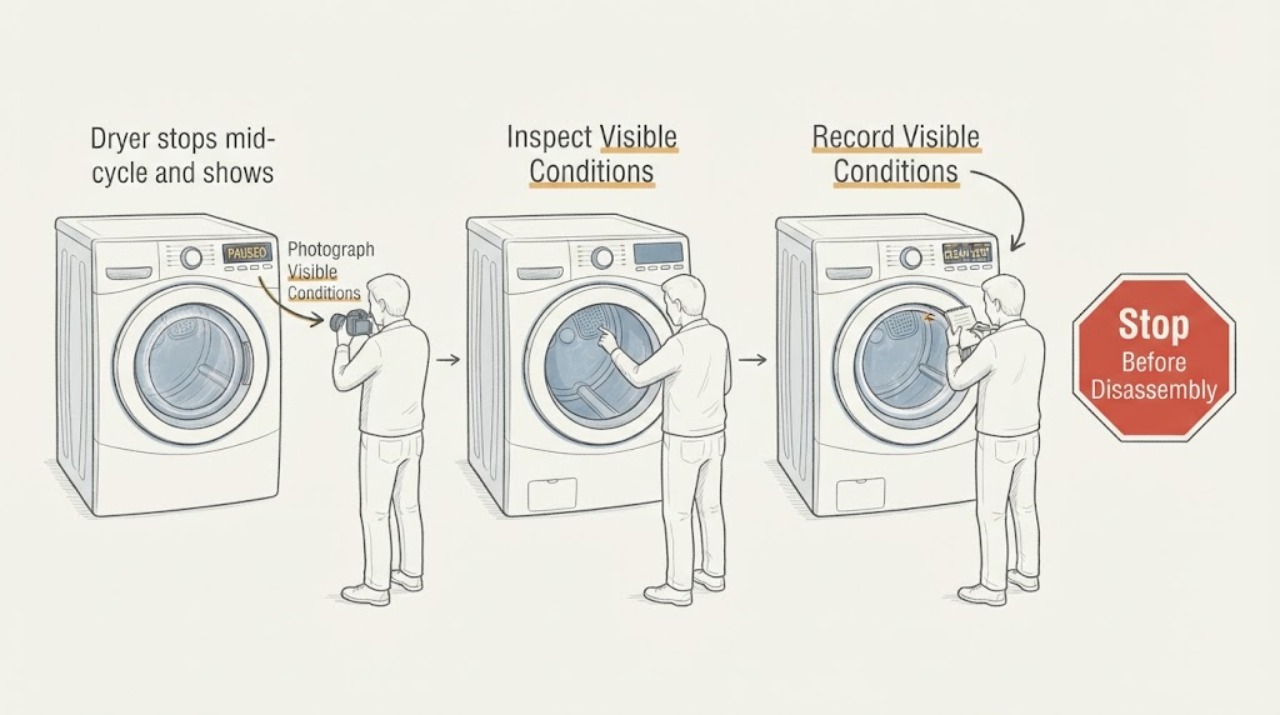

   Leave the dryer off and photograph the complete display. Write down ELFE7437AW, the exact E52 spelling or any additional message, the selected cycle, the approximate minutes before it stopped, the load size and fabric mix, the room or closet conditions, and how long it took before the controls responded again.

   Expected result: The dryer stops at a similar elapsed time on more than one occasion, stops only with a large or heavy load, or the timing and display are uncertain.

   Next step: Preserve the photo and timeline instead of creating another heat test. Tell service whether the drum stopped while hot, whether the cabinet or outlet felt abnormal, and whether the code appeared before or after the stop.

   Why this matters

   Why: A repeatable stop interval and cooldown-dependent recovery are important service clues, but they do not identify a motor, thermal protector, thermistor, or control part. A single uncertain code cannot be safely decoded from the title or symptom alone.

2. Check 2

   When the dryer is fully cool and disconnected from power by a safe method, remove lint only from the accessible lint filter and look at the visible exhaust connection and exterior vent hood for lint, crushing, a sharp bend, a closed flap, or other obvious blockage. Do not dismantle the duct or reach into the cabinet or wall.

   Expected result: The filter is coated, the visible duct is crushed or kinked, the outside hood is blocked, airflow is weak when the appliance is otherwise safely operating, or the accessible path looks clear.

   Next step: Clean and reinstall the accessible filter before any future normal use, but do not run a repeated test to see whether E52 returns. Have a qualified vent or appliance professional inspect a suspected restriction, especially when the dryer or room was unusually hot.

   Why this matters

   Why: Electrolux says lint, exhaust restriction, inadequate ventilation, and a load that is too large can worsen drying and heat conditions. A clear visible path does not rule out restriction inside the wall or an internal fault, and a dirty filter does not prove it caused E52.

3. Check 3

   Record the operating context without restarting: note whether the load filled most of the drum, whether items were unusually heavy or tangled, whether the dryer is in a closet or confined room, and whether the room was humid. Do not treat a smaller load or a cooler room as permission for repeated trials.

   Expected result: The event followed a very full or heavy load, occurred in a confined or humid room, or occurred with an ordinary load under normal room conditions.

   Next step: Give the load, room, and timing details to service. If the dryer stopped with unusual heat, odor, or a code, leave it off regardless of whether the load was small enough to try again.

   Why this matters

   Why: Electrolux's guidance says overloading, insufficient tumbling room, humidity, and inadequate ventilation can affect dryer operation. A normal load that still stops and later recovers after cooling makes a simple loading explanation less complete, but still does not select an internal part.

4. Check 4

   Inspect only the accessible power area from a dry position: check for a loose-looking plug, scorch marks, discoloration, melted plastic, a hot outlet, or a breaker that has tripped. Do not remove the terminal cover, open the breaker panel, or perform a voltage measurement.

   Expected result: The cord or outlet is warm or discolored, the breaker trips again, the dryer is dead after the stop, or the accessible power area looks normal.

   Next step: If anything is hot, damaged, wet, or repeatedly tripping, stop using the dryer and arrange electrician or appliance service. If the area looks normal but E52 recurs, provide the model and timeline to an appliance technician without live testing.

   Why this matters

   Why: This ELFE7437AW is specified for a 208/240-volt supply, so abnormal supply symptoms are an electrical-service issue rather than evidence for a dryer motor or sensor. A normal-looking outlet does not clear internal wiring or controls.

5. Check 5

   Treat the ability to restart after a 30–45 minute cooldown as an observation only. Do not use a cooldown-and-restart loop to complete laundry, and do not reset the dryer repeatedly to erase the code.

   Expected result: The dryer becomes available only after cooling, the next start stops sooner, E52 returns immediately, or it never restarts after cooling.

   Next step: Leave the dryer unused and schedule qualified service. Report the cooldown interval, whether the stop repeats, and any heat, odor, airflow, or electrical observations; do not name a replacement part unless a technician confirms it.

   Why this matters

   Why: The exact-model report describes cooldown-dependent recovery, while Electrolux says cooling and reducing the load may help an overheated motor but directs the owner to service when the issue is not resolved. Recovery does not prove the appliance is safe or repaired; worsening or immediate recurrence raises the need for prompt service.
