Kitchenaid superba refrigerator broken water line — ice maker

Use only checks that match the exact appliance or system and its official guide.

1. Check 1

   Stop the water feed at the refrigerator's accessible shutoff or household valve, place protection under the leak, and unplug the refrigerator only if the plug and floor area can be reached without contact with water or damaged wiring.

   Expected result: Water flow stops, slows, or continues after the accessible shutoff is closed; the electrical area is dry and intact, or it is wet/damaged.

   Next step: Keep the water off and arrange qualified appliance or plumbing service when the leak continues, the shutoff will not close, or the electrical area is wet or damaged. Do not energize a wet appliance to test it.

   Why this matters

   Why: Stopping the supply limits water damage. A continuing leak after the refrigerator shutoff is closed may be upstream of the refrigerator or require plumbing service; water near electrical parts makes further inspection unsafe.

2. Check 2

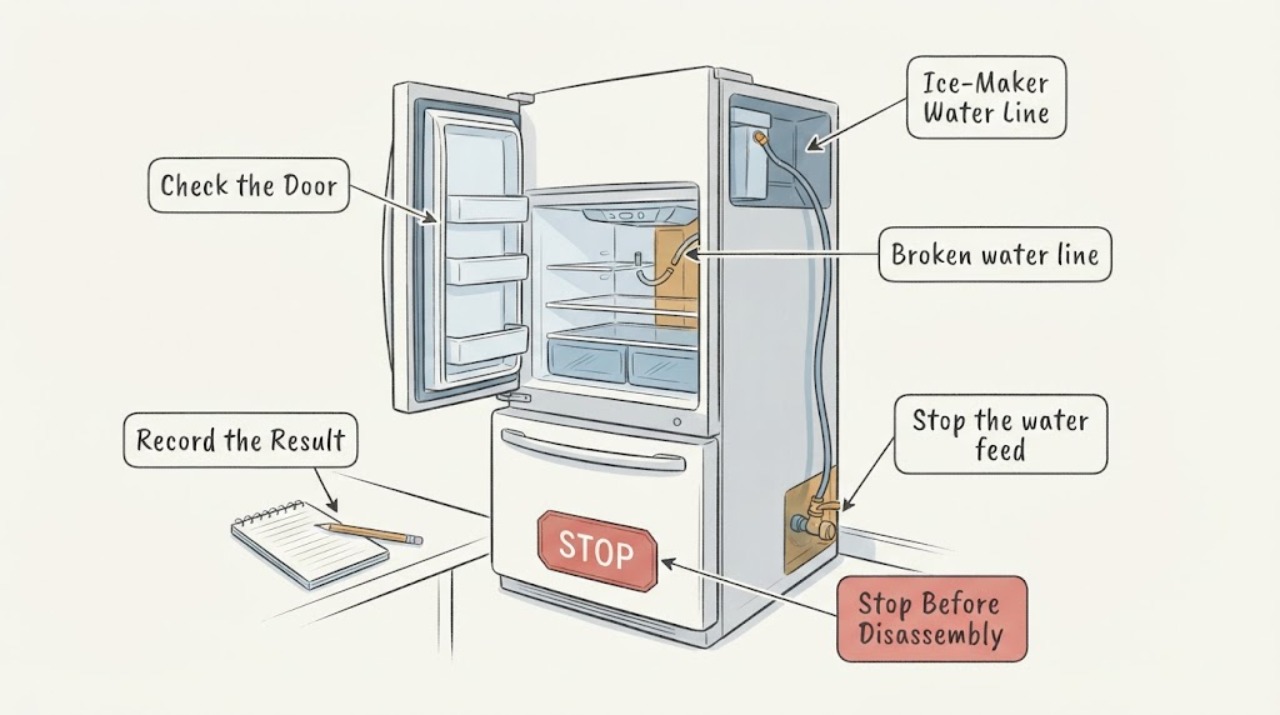

   With water and power isolated, trace only the visible water path from the wall or shutoff to the rear of the refrigerator and note whether the wet point is at a fitting, the external supply tube, or a line disappearing into the cabinet or door.

   Expected result: A crack, kink, loose connection or leak at an accessible rear fitting is visible; or the water appears to originate inside a panel, door or inaccessible ice-maker path.

   Next step: For an accessible connection, document the exact location and model before any correction. For an internal or concealed path, leave the panels closed and arrange model-specific service.

   Why this matters

   Why: KitchenAid's public check covers the household supply line and accessible rear connections. It does not identify the construction or compatibility of an internal Superba ice-maker tube.

3. Check 3

   Inspect the accessible tubing for a visible crack, kink or pulled-out end, and inspect the wall-side and refrigerator-side fittings for moisture. Do not cut, pull or disconnect a tube that disappears into the cabinet or freezer door.

   Expected result: The accessible tube or fitting is visibly damaged or wet, or no accessible defect is found while the leak remains stopped.

   Next step: Keep the water off and use the full model number to obtain the applicable KitchenAid instructions or service assessment. Do not substitute generic tubing or a connector based only on diameter or appearance.

   Why this matters

   Why: A visible defect can explain the leak, but it does not prove which replacement tube or fitting is correct. No external defect shifts the problem toward a concealed line, filter housing, valve or another model-specific location.

4. Check 4

   Read the complete refrigerator model and serial label before looking up a part or manual; record whether the appliance is the side-by-side configuration described by the lead and whether it has a dispenser or filter.

   Expected result: A full model number is legible and matches the appliance, or only the broad Superba name is available.

   Next step: Use the exact manual for any model-specific procedure. If the full model remains unavailable, limit the work to the external stop-and-observe boundary and use qualified service for the concealed leak.

   Why this matters

   Why: KitchenAid directs owners to use the model number for manuals and troubleshooting. Superba by itself does not prove the water-line routing, connector style or part compatibility.

5. Check 5

   After the leak source is documented, decide whether the water path is an external household supply issue or an internal ice-maker path issue; do not restore water merely to reproduce a leak.

   Expected result: The leak is clearly external and repairable under the exact installation instructions, or it is concealed/uncertain.

   Next step: For an uncertain or concealed path, keep the water off and request service. Only restore water after the exact manual or qualified technician confirms the connection is safe and dry.

   Why this matters

   Why: KitchenAid's public material supports accessible supply-line and fitting checks, while concealed tubing and internal ice-maker routing require model-specific evidence.
