Lg dle8377wm dryer damaged wire — replacing the thermometer

Use only checks that match the exact appliance or system and its official guide.

1. Check 1

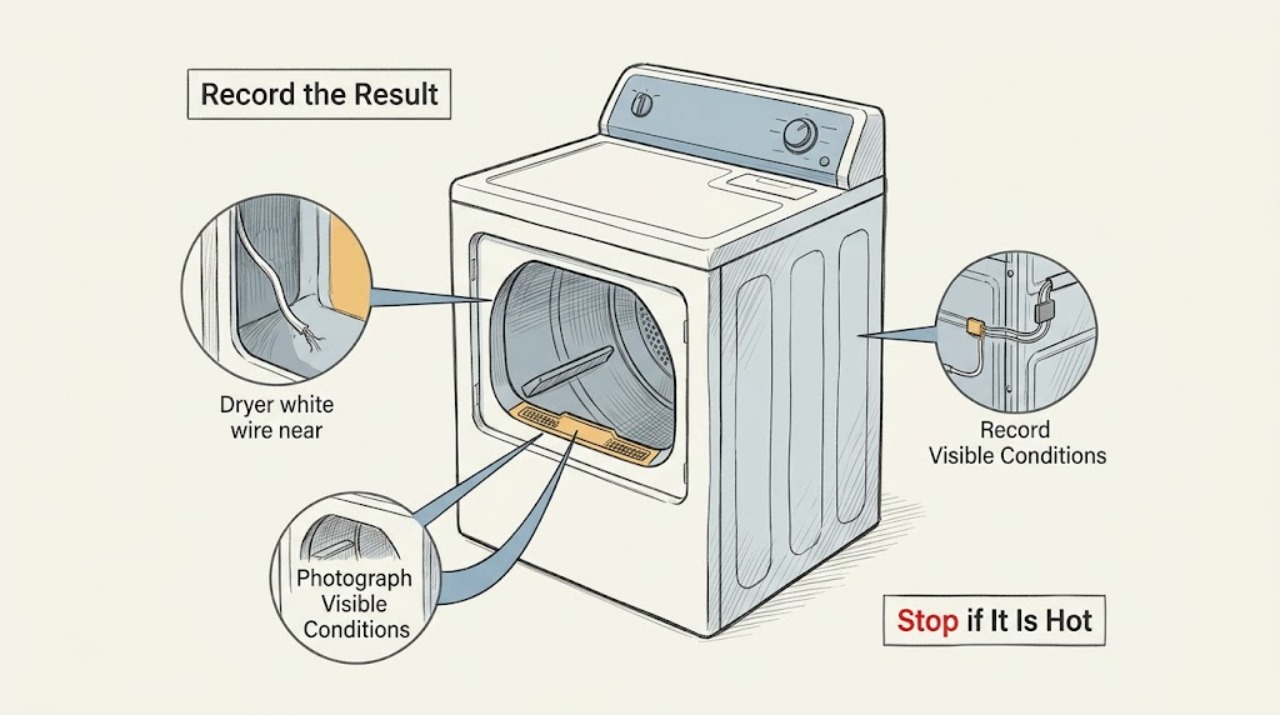

   Stop the dryer, let it cool, and disconnect its accessible power supply before making a visual record. Photograph the full rating label, the complete display if a tE1 or tE2 message is present, the white wire and both ends, the connector, and any heater-area discoloration without pulling, bending, or unplugging the wire.

   Expected result: The full model is DLE8377WM or has an additional suffix, the wire is intact or visibly damaged, and the display is normal, shows tE1/tE2, or shows another message.

   Next step: Keep the dryer off and send the photographs and exact label to LG support or a qualified technician. Do not use a manual for DLE8377NM, DLG8388WM, another market, or another platform as proof that this wire fits.

   Stop if: Do not pull the wire, reseat a hot-area connector, or power the dryer to see whether the message returns.

   Why this matters

   Why: The exact model and the complete physical path matter more than insulation color. LG's DLE8377WM support page supplies an exact-model manual, while the manual's tE1/tE2 entries concern a thermistor connection condition and do not identify a separate white lead.

2. Check 2

   Classify the visible damage without touching the circuit: intact insulation, a loose-looking terminal, abrasion, darkening, melting, exposed conductor, brittle insulation, or a connector that has heat damage. Also record whether there was smoke, a burning odor, a breaker trip, or a no-heat symptom.

   Expected result: The wire or terminal is discolored, melted, loose, exposed, or associated with smoke, burning odor, repeated tripping, or unusual heat; or the wire only appears different in color with no visible damage.

   Next step: For any damage or safety symptom, leave the dryer disconnected and arrange qualified appliance service. If there is no visible damage, preserve the photo and continue only with exact-model documentation and parts verification; do not run the dryer as a test.

   Stop if: Do not strip insulation, crimp a replacement terminal, solder, twist wires together, or cover a damaged section with tape.

   Why this matters

   Why: Heat or electrical damage can involve the terminal, heater assembly, harness routing, airflow, or another cause; the damaged section alone does not prove that replacing a short length of wire will restore safe operation. A color difference without damage is not evidence of a part identity.

3. Check 3

   If the dryer displayed tE1 or tE2 while the thermometer or temperature sensor was being replaced, record the code exactly and the repair sequence. Do not open the cabinet or test resistance or live voltage; do not assume that the white heater-area wire is the thermistor lead.

   Expected result: The display matches tE1/tE2, the display is different or uncertain, or there is no code but the wire is damaged.

   Next step: Give the code photograph, model, repair history, and wire photographs to qualified service for a complete thermistor circuit and heater-area inspection. Keep all internal wiring untouched until then.

   Stop if: Do not clear the code by repeated power cycling or operate the dryer with an exposed, melted, or loose-looking lead.

   Why this matters

   Why: LG's exact manual says tE1 is displayed when the thermistor is not connected and tE2 when it is short, and directs thermistor replacement plus a service-center call. That code path does not establish which physical wire, connector, or heater part is involved, and no code does not make damaged wiring safe.

4. Check 4

   Use LG's official parts channel only as a lookup, entering the complete DLE8377WM model and serial information rather than searching for white wire by appearance. Read the returned part description and applicability; do not place an order unless the listing explicitly identifies the exact compatible lead or harness for this model.

   Expected result: The official lookup names a complete compatible harness or lead, names only a larger heater or wiring assembly, returns no match, or requires a technician to verify the part.

   Next step: Save the official listing and model/serial details for service. If a complete assembly is listed, have a qualified person verify that it is the intended repair after inspecting the damage cause; do not infer that a heater assembly or thermistor assembly includes the white wire unless the catalog says so.

   Stop if: Do not buy a universal appliance wire, choose by gauge or color, alter a connector, or use a part from a similar LG dryer.

   Why this matters

   Why: LG's parts channel is designed to find exact matching parts by serial number or model, but a generic search result or a visually similar lead does not establish temperature rating, current capacity, terminal fit, routing, strain relief, or safety approval. If LG does not list a standalone lead, the record supports an evidence gap rather than a generic substitution.

5. Check 5

   Prepare a service handoff containing the exact model and serial information, electric or gas variant if shown on the label, the tE1/tE2 or other display text, what was being replaced, the wire photographs, damage location, odor or smoke history, breaker behavior, and whether the dryer was operated after the wire was found damaged.

   Expected result: The technician receives a traceable model identity and evidence of the wire, thermistor, heater-area, and safety symptoms, or the model/variant remains uncertain.

   Next step: Keep the dryer off until the technician verifies the wiring, terminals, thermistor circuit, heater-area assembly, airflow, and protective devices. If the model or variant cannot be confirmed, treat that uncertainty as a reason for service, not a reason to use a substitute wire.

   Stop if: Do not bypass thermal protection, run with panels removed, or perform live electrical testing.

   Why this matters

   Why: A complete handoff helps service verify the correct platform and inspect the cause rather than replacing a visible wire section blindly. The DLE8377WM manual warns that wiring errors can cause injury, fire, and heating failure and says disassembly requires an authorized qualified service person.
