Lg dle1501w dryer error code d90 — dryer running with small loads

Use only checks that match the exact appliance or system and its official guide.

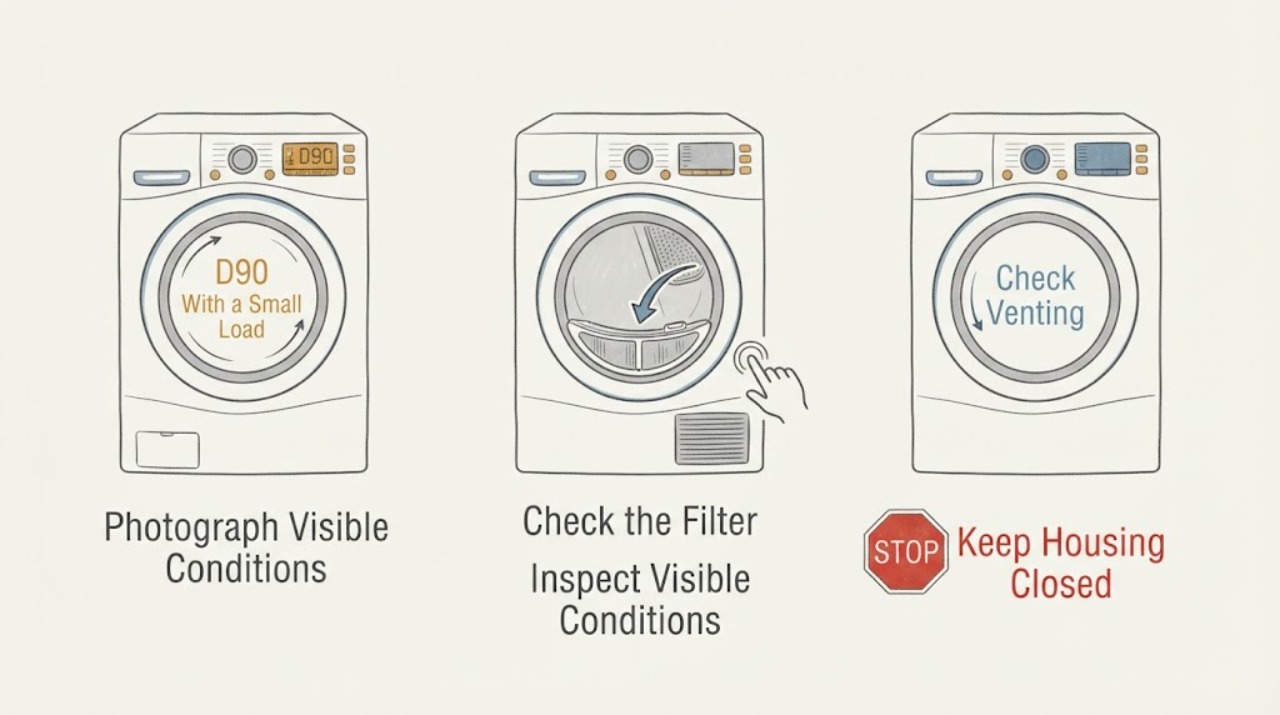

1. Check 1

   Photograph the complete display before clearing it, including the lower-case d, the 90, any Flow Sense bars, and whether the machine stopped or merely shortened the cycle. Confirm the rating label reads LG DLE1501W and note whether the symptom is d90 or only an early-ending small-load cycle.

   Expected result: The display clearly shows d90/Flow Sense, or the dryer ends early without d90 and the load is only a few items.

   Next step: For d90, continue with the exhaust checks below and do not bypass the warning. For an early-ending cycle with no d90, use the exact manual's permitted cycle choice such as Speed Dry or Timed Dry rather than treating it as a vent-code repair.

   Why this matters

   Why: LG assigns d90 to exhaust restriction, while its small-load guidance assigns early Sensor Dry termination to poor contact with the moisture sensors. These observations lead to different next steps; a small load does not reclassify d90 as a sensor-contact message.

2. Check 2

   With the dryer off and cool, remove the accessible lint filter, clear lint, and wash it with warm water and a soft brush if buildup or residue is present. Let it dry completely and reinstall it correctly; do not reach into the cabinet or run the dryer with the filter removed.

   Expected result: The filter has lint, film, damage, poor fit, or a missing part, or it is clean and correctly seated but d90 remains.

   Next step: Correct only the accessible filter condition. If the filter is damaged or the d90 warning returns, leave the dryer off and continue to vent inspection or qualified service; do not purchase a control board or sensor solely from d90.

   Why this matters

   Why: LG lists the lint filter as a possible restriction and recommends cleaning it. A clean filter only clears that accessible section; it does not establish that the hose, hood, or wall duct can pass air.

3. Check 3

   From a dry, safe position, inspect the visible exhaust connection behind the DLE1501W only after power is off and the dryer is cool. Look for a crushed, kinked, dented, coiled, holed, or loose hose and confirm it is not compressed against the wall; do not dismantle the dryer.

   Expected result: The hose is visibly crushed, sharply bent, damaged, loose, or the accessible section looks normal.

   Next step: Correct only a plainly visible hose-position or connection problem without forcing the dryer or changing the duct route. If the accessible section is clear and d90 remains, arrange a professional vent inspection rather than opening the appliance or replacing an internal part.

   Why this matters

   Why: LG identifies these conditions as causes of restricted exhaust. A normal-looking short connection does not rule out lint or a restriction inside the wall, a long run, or excessive bends.

4. Check 4

   Inspect the outside exhaust outlet from the exterior without removing the hood or reaching into the duct. Look for lint, a stuck flap, cage or mesh obstruction, snow/debris, or little to no airflow already observed during normal use; do not run another heated load just to test it.

   Expected result: The flap cannot open fully, visible lint or debris is present, airflow has been weak, or the outside outlet looks clear.

   Next step: Remove only loose, visible exterior lint or debris that can be reached safely. If the flap is damaged, the route is concealed, or d90 returns, keep the dryer off and have a qualified vent cleaner inspect the complete path.

   Why this matters

   Why: LG says the outside hood/flappers and the concealed duct can restrict airflow even when the visible hose near the appliance is clear. An apparently clear outlet is not a pass for a long, bent, or blocked in-wall route.

5. Check 5

   For the installation, record whether the exhaust run is unusually long or has multiple 90-degree elbows, and compare it with LG's venting guidance rather than relying on a visual check at the appliance. Do not reroute concealed ductwork, remove a wall hood, or modify the dryer yourself.

   Expected result: The run length or bend count is unknown, appears beyond the LG guidance, or is within guidance but d90 still returns after the accessible filter, hose, and hood checks.

   Next step: Give the vent professional the model, d90 history, run layout, and what was observed at the hood. Stop using the dryer until severe restriction is cleaned or repaired; do not bypass Flow Sense or substitute an internal sensor/control part.

   Why this matters

   Why: LG explains that excessive length, multiple bends, and incompatible installation can create hard-to-see restrictions. The installation guidance gives a maximum run and deductions for additional elbows, but an on-site vent assessment is needed when the route is concealed or its condition is uncertain.
