Start here
Quick answer

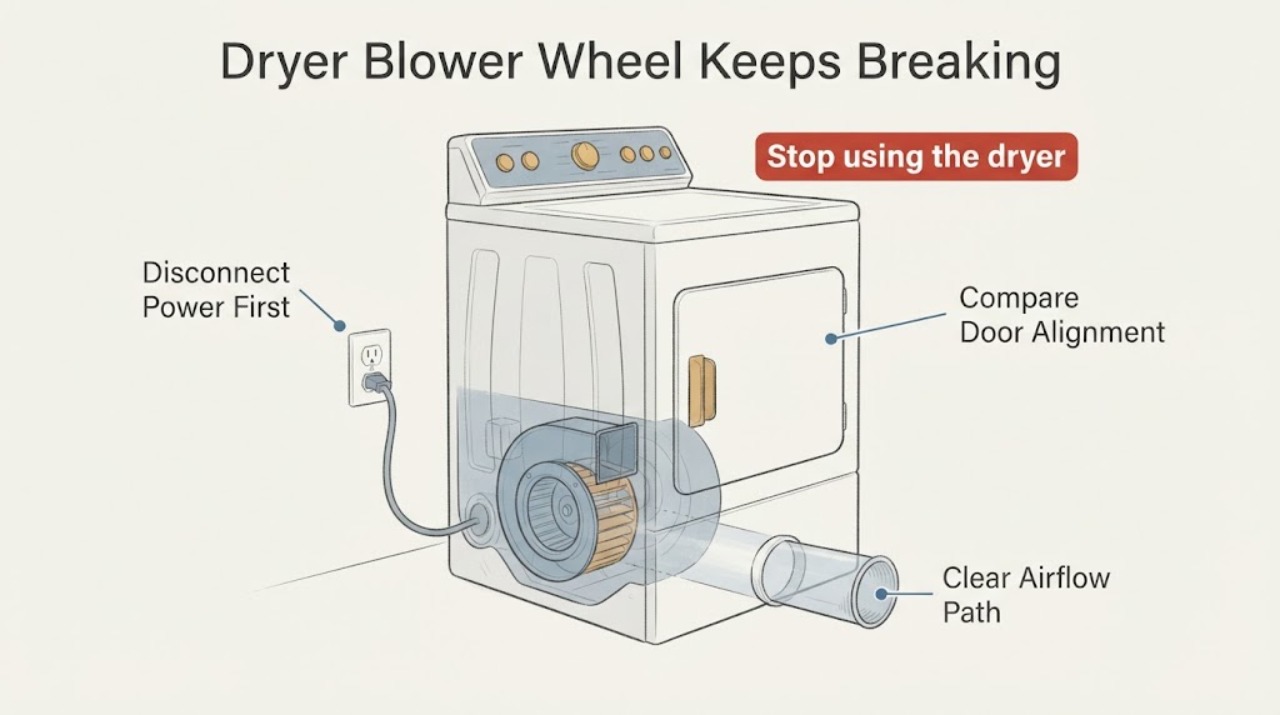

The opened post confirms a Maytag DE410 dryer whose blower wheel has broken repeatedly, with the failures beginning after belt and motor work. Replacing another wheel without finding why it is being stressed is unlikely to solve the pattern. Maytag's official noise guide lists a loose, off-balance or blocked blower wheel as a possible source of rumbling and recommends professional help for that repair. With the dryer disconnected from power and, if applicable, its gas supply handled safely, stop using it and have a technician inspect the wheel-to-housing clearance, motor shaft/runout, retaining-ring seating, motor or front-support alignment, belt/drum reassembly and lint/vent restriction. Do not run the dryer with a cracked wheel, remove panels while energized, or order an unverified wheel by appearance.
Before you begin
Safety first
- Disconnect power before access. Do not run a dryer with a cracked wheel, reach into the blower path, perform live electrical tests, disturb gas connections, bypass a door or thermal safety, or keep trial-fitting wheels without finding the stress condition.
Work through in order
Diagnostic checks
Use only checks that match the exact appliance or system and its official guide.
-
Check 1
Stop using the dryer and disconnect it from power before looking for the source of the failure. If it is a gas model, use the appliance's normal shutoff/service procedure and do not disturb the gas connection while inspecting the wheel problem.
Expected result: The wheel is cracked, loose on the shaft, fragments are present, or the dryer has only a noise with no wheel damage visible from a safe external view.
Next step: Leave the dryer out of service and arrange a model-matched inspection; do not run it to reproduce the failure or reach into the blower path while energized.
Why this matters
Why: A cracked or loose wheel can shed pieces and cannot be safely evaluated by continued cycling. A noise without confirmed wheel damage still requires a controlled inspection because Maytag lists multiple mechanical causes.
-
Check 2
From safe accessible areas, inspect the lint screen, lint chute opening and external exhaust termination for obvious lint or foreign objects. Do not use a running dryer as an airflow test and do not insert tools into the blower housing.
Expected result: Lint or a foreign object is present, the exhaust path is visibly restricted, or the accessible path is clear.
Next step: Remove only accessible lint or objects with power disconnected. If a wheel has already failed repeatedly, have the full internal airflow path and housing inspected before replacing it again.
Why this matters
Why: Maytag says loose items can fall through the lint chute and hit the blower wheel, and identifies a blocked blower wheel as a possible noise source. A clear visible path does not rule out internal housing contact or shaft alignment.
-
Check 3
Give the technician the complete DE410 model/serial information and the sequence of belt, motor and wheel replacements. Ask for a written check of wheel-to-housing clearance, shaft/runout, retaining-ring seating, motor/front-support alignment, drum/belt routing and vent restriction before approving another wheel.
Expected result: The inspection finds a contact, wobble, displaced retaining ring, mounting/alignment issue or restriction, or no cause is found after a model-specific inspection.
Next step: Correct only the condition the technician can document for the DE410 and verify the wheel is correctly supported and clear before returning the dryer to service. If no cause can be established, do not keep fitting wheels as trial parts.
Why this matters
Why: A repeated break after reassembly is more consistent with an unresolved mechanical or airflow condition than with a wheel that simply needs repeated replacement, but the supplied evidence does not identify the exact failed component.
-
Check 4
Confirm the part and installation instructions against the full Maytag DE410 model before purchasing a replacement blower wheel. Do not substitute a wheel based only on diameter, hub appearance, a retailer listing or a different Maytag/Whirlpool family.
Expected result: The model-specific documentation or qualified technician confirms the replacement and retaining method, or the fit remains uncertain.
Next step: Use the Maytag manual/service route or obtain professional confirmation. If fit remains uncertain, stop the repair rather than installing and running another unverified wheel.
Why this matters
Why: Maytag's documentation workflow is model-number based, while the exact thread includes an aftermarket wheel discussion but no verified part-fit result. Similar-looking wheels can differ in hub, retention and clearance.
Use your observations
Decision map
Find the observation that best matches what you see, then follow the next safe action.
-
PATH 01Next step
What you see
The wheel is cracked or loose at the hub, and the failure started after belt and motor work.
Do this next
Keep the dryer disconnected and obtain a model-matched mechanical inspection before installing another wheel.
Why this path and its safety boundary
Why it matters: The timing makes reassembly, shaft, support or wheel-fit conditions important to inspect; it does not prove that the wheel itself is defective.
-
PATH 02Next step
What you see
Lint, a foreign object or a visibly restricted exhaust path is found near the lint chute or external vent.
Do this next
Clear only accessible obstruction with power disconnected, then have the internal wheel/housing inspected before any test cycle.
Why this path and its safety boundary
Why it matters: The observation matches Maytag's warning that loose items can strike the blower and that a blocked or off-balance wheel can create rumbling.
-
PATH 03Next step
What you see
The wheel breaks again even though the external vent appears clear and the replacement initially turns without obvious rubbing.
Do this next
Stop replacing wheels by trial and have the complete motor/blower/housing assembly and post-repair alignment checked by a qualified technician.
Why this path and its safety boundary
Why it matters: The delayed failure leaves shaft runout, retaining-ring seating, mounting pressure, housing clearance or another internal condition unresolved; sound and timing cannot identify which one.
-
PATH 04Next step
What you see
The correct model documentation or part fit cannot be confirmed, or inspection requires energized testing, cabinet access, gas work or reaching the rotating assembly.
Do this next
Leave the dryer out of service and contact Maytag or a qualified dryer technician with the model/serial and repair history.
Why this path and its safety boundary
Why it matters: The task has reached a professional-service boundary; a generic blower-wheel procedure is unsafe and may damage the dryer.
Helpful context
Understand the symptom
Repeated wheel failure points to a mechanical cause
The exact thread says the wheel began breaking after the dryer was taken apart for a belt and motor replacement, and that the wheel cracked at its drive-shaft hub. A reply raises rubbing, a wobbling shaft and installation pressure as possibilities; the author says the wheel is not visibly rubbing immediately after replacement but fails months later. Those reports make alignment and stress worth checking, but they do not prove which part is bent or misinstalled on every DE410.
Check airflow and the source of the noise
Maytag lists a loose, off-balance or blocked blower wheel among possible causes of a loud dryer rumble and notes that items can fall through the lint chute and hit the wheel. A blocked vent or lint path can also change airflow and heat. These observations help a technician decide whether the wheel is being obstructed or stressed; they do not justify running a dryer with a cracked wheel.
Use model documentation before another repair
Maytag's manual portal requires the full model number to locate the correct literature, and its Owner Center says model and serial information are required for support. Before ordering another blower wheel or reopening the cabinet, record the complete DE410 label, dryer type and the work already performed. A technician can then match the wheel, shaft, housing and mounting procedure to the appliance instead of guessing from a similar-looking part.
When checks do not resolve it
Need a professional?
Call Maytag or a qualified dryer technician when the DE410 blower wheel breaks again, the shaft or housing may be misaligned, the correct part is uncertain, or any inspection requires internal access, energized testing or gas work.
Safety scope: Disconnect power before access. Do not run a dryer with a cracked wheel, reach into the blower path, perform live electrical tests, disturb gas connections, bypass a door or thermal safety, or keep trial-fitting wheels without finding the stress condition.
Have this ready
- Provide the full DE410 model and serial, gas/electric type, wheel failure photos, dates and source of prior wheels, belt and motor replacement details, noise timing, visible lint/vent restriction and any evidence of rubbing or loose retention.
Common questions
FAQ
Why did the Maytag DE410 blower wheel start breaking after the belt and motor were replaced?
The timing makes alignment, shaft runout, retaining-ring seating, housing clearance, support pressure and belt/drum reassembly worth inspecting, but the opened thread does not prove which condition is responsible. Replacing another wheel without that inspection is not a reliable fix.
Can I run the dryer briefly to see whether the new blower wheel rubs?
Do not run it with a cracked or unverified wheel to reproduce contact. Maytag recommends professional help for a difficult blower-wheel repair; have clearance, shaft and mounting checked with power disconnected before a qualified final test.
Can I order any blower wheel that looks like the DE410 wheel?
No. Confirm the complete model number and the model-specific part and retaining method through Maytag or a qualified technician. The community discussion mentions aftermarket wheels but does not verify their fit or durability for the DE410.
Read the exact guide
Official sources
- Service & Support Owners CenterMaytag · Opened Maytag's Owner Center. It says model and serial information are required for support and provides dryer model-number locations and service scheduling; it does not authorize live dryer disassembly.
- Dryer Blower wheel keeps breaking. Maytag DE410Reddit r/appliancerepair · Opened the exact Reddit post. It verifies the model, symptom and repair-history context, but it does not establish a final cause, part fit or manufacturer-approved repair procedure.
- Possible Fixes for a Dryer That’s Making Loud NoisesMaytag · Opened Maytag's official dryer-noise guide. It lists loose, off-balance or blocked blower wheels as possible rumbling causes, notes that objects can enter through the lint chute, and recommends professional help for difficult blower-wheel repairs; it is not a DE410-specific reassembly manual.
- Appliance Manuals and LiteratureMaytag · Opened Maytag's official manuals page. It requires the appliance model number to retrieve the matching manuals and guides; no different Maytag dryer procedure is substituted for DE410 evidence.
