Samsung nx5837750ss oven not heating — home cooking

Use only checks that match the exact appliance or system and its official guide.

1. Check 1

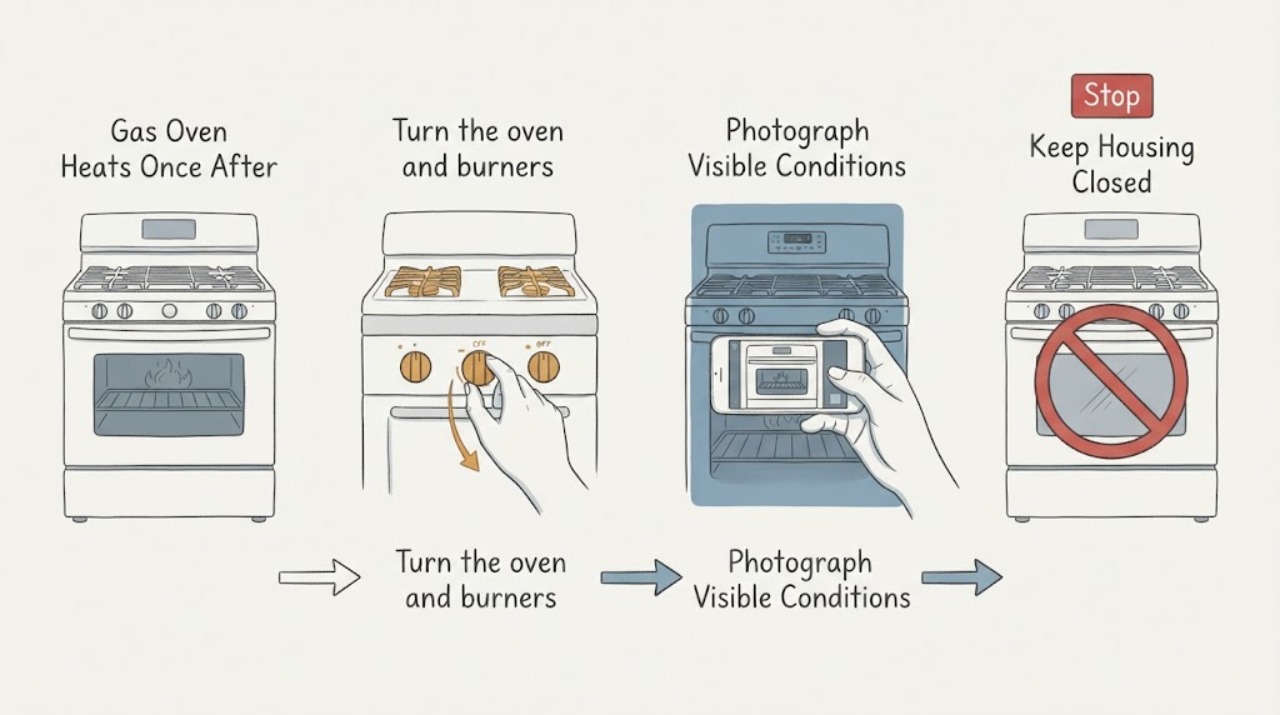

   Turn the oven and burners off and let the range cool. Do not start Bake or Broil again if there is any gas odor, delayed ignition, boom, soot, yellow or unstable flame, smoke, sparking, a hot connection, or a breaker trip. From a safe location, close the appliance gas shutoff only if it is clearly accessible without reaching through a hazard; do not move the range or adjust a fitting.

   Expected result: The range is cool and dry with no gas or electrical warning, or an odor, abnormal flame, smoke, heat, spark, trip, or other hazard is present.

   Next step: For a gas odor or suspected leak, avoid flames and nearby electrical switches, leave by the safest route, and follow local emergency or gas-provider guidance. For smoke, fire, or electrical danger, keep clear and obtain emergency or qualified help.

   Stop if: Do not relight the oven, test for leaks with a flame or liquid, reset a breaker repeatedly, or touch a wet, hot, smoking, or sparking connection.

   Why this matters

   Why: A cool, intact range permits limited external observations. Gas or electrical warning signs override troubleshooting and make another ignition attempt unsafe.

2. Check 2

   Without opening panels or moving the range, read the full rating-plate model and suffix and photograph the display. Record whether it actually says NX5837750SS or a different NX58 model, the market/region, whether the range is natural gas or LP as marked, when the Bake igniter was replaced, and whether Bake produced heat only once before both Bake and Broil stopped.

   Expected result: The rating plate confirms the supplied string, shows a different or incomplete model, or the model and repair timeline are uncertain.

   Next step: Use the complete rating-plate code in Samsung's support lookup and service request. If it does not match NX5837750SS, stop model-specific research and do not order another igniter or control part.

   Stop if: Do not remove the rating plate, open the control panel, rely on a retailer listing, or substitute a nearby NX58-series model.

   Why this matters

   Why: Samsung's manuals and information codes are model-specific. A one-character difference or missing suffix can change the manual, gas configuration, igniter arrangement, and service path; the one-time recovery is a repair-history clue, not proof of an igniter failure.

3. Check 3

   With the oven cool, check the control display and the door from outside. Confirm that the intended mode and temperature can be selected, Start was pressed normally, the door closes fully without force, and the display does not show tESt, tE 5t, a D icon, DEMO, a door indication, or another information code. Do not remove the door, defeat an interlock, or repeatedly start a preheat cycle.

   Expected result: The display shows Demo/lock/door information, remains blank or unresponsive, or shows a normal Bake start without heat.

   Next step: Use only the exact model manual for a documented Demo or door-state correction and retry one normal start if the appliance is otherwise safe. If the display stays blank, a code returns, or the oven remains cold, leave it off and request service.

   Stop if: Do not bypass a door switch, operate with a door gap, remove panels, or continue testing after a gas, smoke, heat, spark, or breaker warning.

   Why this matters

   Why: Samsung documents Demo mode, door state, and power or information-code conditions that can prevent heating without proving that an igniter or valve failed. A normal display with no heat moves the case to gas comparison or service rather than another part swap.

4. Check 4

   Only if there is no gas odor or other hazard, observe one existing cooktop burner using its normal knob and ignition procedure; do not repeatedly click the igniter and do not attempt to relight the oven. Record whether the burner lights and holds a normal flame, or whether all cooktop burners also fail.

   Expected result: The cooktop burners operate normally, or the burners also fail to light or cannot sustain a normal flame.

   Next step: If the burners also fail, stop ignition attempts and contact the gas provider or qualified service. If the burners work but both oven modes remain cold, stop using the oven and request qualified Samsung appliance service.

   Stop if: Stop for gas odor, delayed ignition, a boom, yellow or unstable flame, soot, smoke, or any need to adjust pressure or open a gas connection.

   Why this matters

   Why: Samsung uses a cooktop-burner comparison to separate a possible household gas-supply issue from an oven-only heating problem. It does not identify the oven valve, igniter, control, pressure, or wiring.

5. Check 5

   If the model-matched manual and Samsung's temperature guide support one normal Bake observation, note whether the display advances from its initial preheat indication and whether any heat appears without opening the door. Do not use a thermometer, remove the lower panel, watch an exposed igniter, access wiring, or repeat the cycle merely to compare Bake and Broil.

   Expected result: The oven begins normal preheat, remains at the initial indication with no heat, heats briefly and fails again, or both Bake and Broil remain cold.

   Next step: Stop after this one safe observation. Give service the full model, gas type, display behavior, cooktop comparison, both-mode result, and igniter replacement history; do not install another part first.

   Stop if: Do not open the burner or control areas, perform live electrical checks, adjust gas pressure, bypass a safety circuit, or continue a cycle with odor, abnormal flame, smoke, or overheating.

   Why this matters

   Why: Samsung says a preheat display that remains at its initial value for much longer than expected indicates that the oven is not heating, but that observation does not distinguish an igniter, gas, valve, sensor, wiring, or control fault. Temporary recovery after the earlier igniter replacement makes repeated part replacement especially unreliable.

6. Check 6

   Prepare the service handoff without further testing: save the replacement part packaging or invoice, write down which Bake igniter was changed and by whom, record whether any wiring or connectors were disturbed, and preserve photographs of the rating plate, display, and any safe external symptom. Do not open the range to verify connections.

   Expected result: The repair history, model, display, and gas comparison are documented, or the previous repair details cannot be verified.

   Next step: Request qualified Samsung appliance service and ask for the exact model-specific gas and ignition diagnosis before any additional replacement. If the first work was under warranty or by a service provider, return to that provider with the timeline.

   Stop if: Do not keep the oven in service just because the cooktop works, and do not authorize an igniter, valve, or control replacement based only on the phrase 'both igniters are not working.'

   Why this matters

   Why: A temporary one-cycle recovery followed by loss of both modes is a symptom sequence that requires diagnosis of the exact appliance and prior work. Unverified repair history should be treated as unconfirmed, not as evidence for another part.
