Samsung nx58h9500ws aa oven not heating — home cooking

Use only checks that match the exact appliance or system and its official guide.

1. Check 1

   Confirm the rating-plate identity as NX58H9500WS/AA and treat it as a slide-in gas range. Record the market suffix, selected mode, target temperature, whether the oven was empty, the number of racks, and whether the timing ended at the oven's beep.

   Expected result: The published Samsung specification identifies NX58H9500WS as a 5.8 cu. ft. slide-in gas range with Bake and Convection Bake; the support portal may display a different regional suffix, so do not apply another market's manual without checking the suffix.

   Next step: Use the exact local Samsung manual for NX58H9500WS/AA and continue with the empty-oven timing check only when the range is cool and safe.

   Stop if: Stop for a gas odor, smoke, abnormal flame, scorching, a damaged cord or connection, or any hot, wet, or sparking control area.

   Why this matters

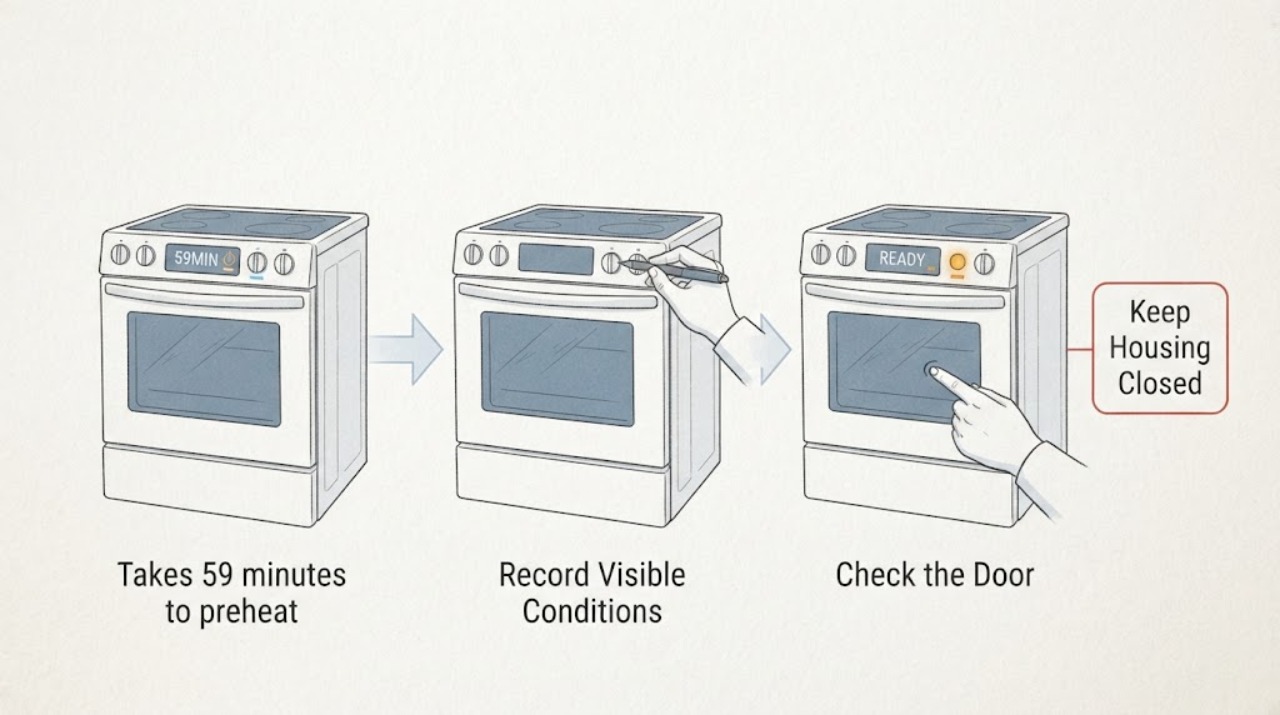

   Why: The model and fuel type determine which preheat and gas-supply guidance is relevant. A 59-minute report without the controlled conditions is not yet a model-specific heating diagnosis.

2. Check 2

   With the oven empty and at room temperature, leave one rack inside, select Bake at 350°F, press Start once, keep the door closed, and time only until the oven signals preheat completion. Do not put food in the oven or use a thermometer for this comparison.

   Expected result: Samsung says this controlled test should beep within 20 minutes. A result near that range is different from a 59-minute result under the same conditions; a result beyond 20 minutes is the manufacturer's service threshold for a long-preheat complaint.

   Next step: Record the exact elapsed time and display behavior. If the empty one-rack test again exceeds 20 minutes, stop repeated tests and request Samsung service.

   Stop if: Stop immediately for gas odor, delayed ignition, a boom, smoke, soot, an abnormal flame, or an electrical symptom.

   Why this matters

   Why: This is an observation benchmark, not permission to diagnose or replace a heating part. Door openings, racks or cookware, mode, and timing method can invalidate the comparison.

3. Check 3

   During the controlled preheat, look only at the display from outside and note whether it progresses from the initial 150°F indication or remains there. Keep the door closed and do not reach through the opening or remove the oven floor.

   Expected result: Samsung explains that the display begins at 150°F and increases as the oven becomes hotter; a display stuck at 150°F for much longer than expected indicates that the oven is not heating, while a progressing display with a slow beep needs the controlled timing result rather than a guessed part.

   Next step: If the display does not progress or the long-preheat result repeats, stop the test and provide the display and timing record to qualified service.

   Stop if: Do not open the bottom panel, touch an igniter or burner, bypass an interlock, or continue after smoke, gas odor, abnormal heat, or a breaker trip.

   Why this matters

   Why: Display progression separates no-heat behavior from a timing or temperature-perception issue, but does not distinguish igniter, burner, valve, sensor, or control failure.

4. Check 4

   Only if there is no gas odor or other hazard, use an existing cooktop burner once with its ordinary control and note whether it lights normally. Do not repeatedly try the oven, loosen a gas fitting, adjust pressure, or use a flame to inspect anything.

   Expected result: If the cooktop burners also fail to light, Samsung directs attention to whether the home's gas is on and to the gas company. If the cooktop works but the oven does not heat, the problem is not isolated by this comparison and needs qualified service.

   Next step: Stop ignition attempts. Use the gas provider or qualified installer for an all-burner supply concern, or Samsung appliance service for an oven-only no-heat condition.

   Stop if: For gas odor or suspected leakage, do not operate switches or create flames; leave by the safest route and contact local emergency or gas service from a safe location.

   Why this matters

   Why: The cooktop result can separate a possible household gas-supply interruption from an oven-only heating or ignition fault; it cannot identify a valve, igniter, burner, sensor, or pressure value.

5. Check 5

   Read the panel for tESt, tE 5t, a d or D indicator, a door message, or another code; confirm the door is fully closed and no visible cookware or foil blocks the vent. Use the exact NX58H9500WS/AA manual for any mode or code action.

   Expected result: Samsung says Demo mode prevents the oven and cooktop from heating, while a gas cooktop can still ignite. A normal display with a closed door and no Demo indicator moves the check toward gas, power, or service rather than a mode change.

   Next step: Clear only a documented mode or visible obstruction once, then perform no more than the controlled preheat observation. Request service for a recurring code or unchanged no-heat condition.

   Stop if: Do not enter service mode, bypass a door interlock, force the door, remove panels, or continue a test after a gas, smoke, spark, or overheating warning.

   Why this matters

   Why: A display state can explain a cold oven without proving an igniter or control fault. Foil or blocked airflow can also damage the oven and should not be used as a workaround.

6. Check 6

   From a dry, safe position, check the range plug and circuit for an obvious interruption and turn the range breaker fully off for 30 seconds and back on once, only if there is no gas, smoke, water, hot connection, or repeated trip.

   Expected result: If the display returns and one normal Bake cycle preheats correctly, a temporary control or supply state may have cleared. If the breaker trips again, the display stays blank, or the oven remains slow or cold, the reset did not resolve the problem.

   Next step: Stop after this single reset and give service the exact model, market suffix, mode, temperature, controlled timing, display, cooktop comparison, and any code or odor.

   Stop if: Do not repeatedly reset the breaker, open the control enclosure, measure live wiring, touch the igniter, or repeat oven ignition.

   Why this matters

   Why: Samsung lists one 30-second breaker cycle for an oven that does not heat, but a reset does not prove which internal or gas component is involved.
