Thermador dwhd440mfm 07 dishwasher not cleaning — home use · e09

Use only checks that match the exact appliance or system and its official guide.

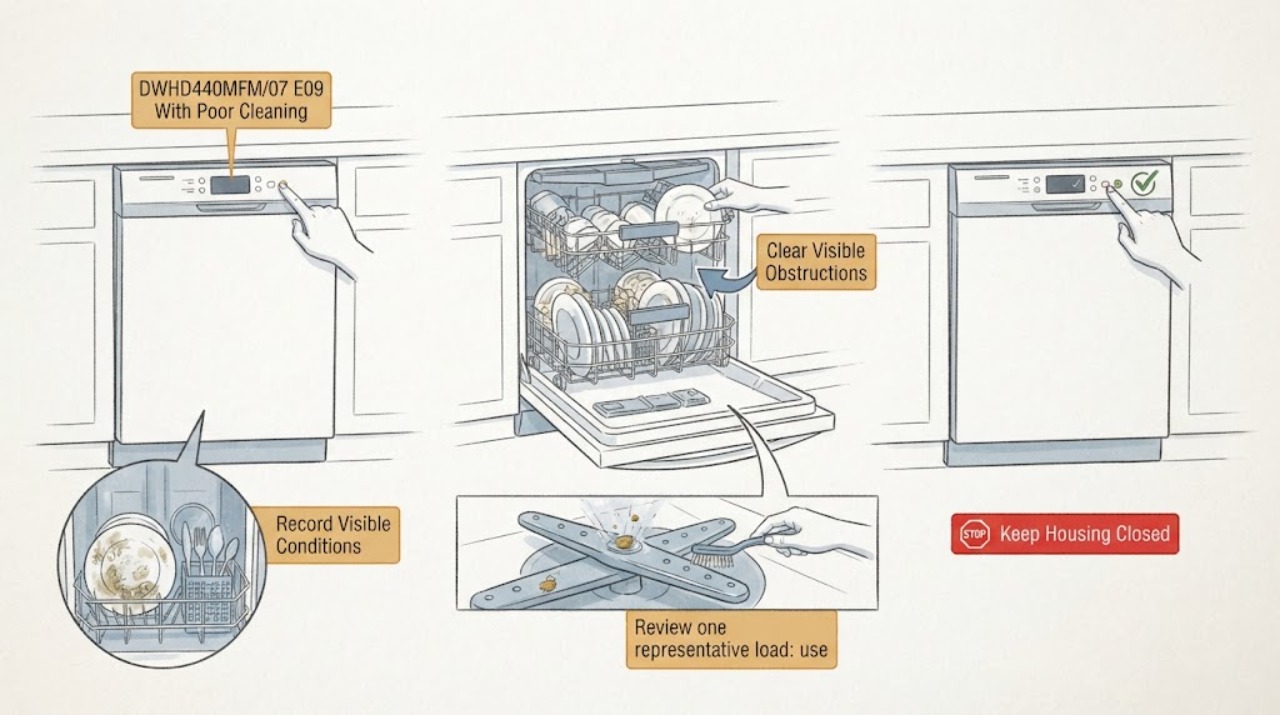

1. Check 1

   Open the door and record the exact display, including whether it is E09, E04, E0105, E18, E22, or a different character pattern. Confirm the rating-label identity is Thermador DWHD440MFM/07 and note whether the code appears at start-up, during washing, at the end, or only after a failed cycle.

   Expected result: The display is clearly E09 on DWHD440MFM/07, a different listed code appears, or the model suffix is different or unreadable.

   Next step: For a confirmed E09, do not select a part or perform a code-specific electrical test; keep the exact code and timing for service. For a different code or model, use the matching official manual and code entry instead.

   Why this matters

   Why: E09 has no definition in the official Thermador dishwasher list or the opened DWHD440MFM-family manual, while other codes have different water, drain, leak, voltage, or heater meanings. A different suffix or code cannot safely use this article's E09 conclusion.

2. Check 2

   With the dishwasher stopped and the racks unloaded as needed, turn each accessible spray arm by hand and check for visible obstruction; follow the manual's care instructions to remove and clean spray arms and filters only if those parts are designed for user removal. Do not open panels or probe wiring.

   Expected result: A spray arm cannot rotate, a nozzle or filter has visible debris, or the arms and filters are clear and move freely.

   Next step: Correct only the visible obstruction using the manual's procedure, reinstall parts securely, and run one normal observation. If cleaning remains poor or E09 returns, stop part diagnosis and arrange service.

   Why this matters

   Why: A blocked spray path or filter can directly reduce soil removal on this model family. Clear user-accessible debris makes a circulation, water-temperature, control, or other internal problem more likely, but does not identify a component.

3. Check 3

   Review one representative load: use only dishwasher detergent, avoid nested items and blocked spray paths, confirm the selected cycle suits the food soil, and compare detergent amount with the manual's water-hardness guidance. Do not add hand-washing liquid or harsh cleaner.

   Expected result: Dishes were nested or blocking spray arms, the cycle was too light for the soil, detergent use did not match the manual, or the load and settings were appropriate.

   Next step: Correct only the loading or detergent condition and compare one normal cycle. Do not use a detergent change to dismiss a recurring E09, a halted cycle, or dishes that remain unusually cold and wet.

   Why this matters

   Why: Loading, detergent, water hardness, and cycle choice can explain weak cleaning without an appliance failure. If the same load and cycle still clean poorly with a clear spray path, the E09 display and performance need professional assessment together.

4. Check 4

   For the slight smell, inspect from inside the tub for food debris at the bottom, particles around the door seal, and residual water after the last cycle. Check only the visible drain path; do not disconnect plumbing or pull the built-under dishwasher out.

   Expected result: Debris or residue is visible, the tub drains completely with no visible residue, or standing water remains after the cycle.

   Next step: Clean the user-accessible filter and seal as directed and have a qualified person address a suspected drain-hose obstruction. If the manual's odor procedure is used, follow it exactly; stop for a leak, flooding, or any need to access hidden plumbing.

   Why this matters

   Why: The manual links odor to food debris, the door seal, residual water, and drain-hose obstruction. Persistent standing water shifts the concern toward drainage or installation rather than a code-defined heater fault.

5. Check 5

   Run at most one supervised normal cycle after the safe external checks, recording whether water circulates, the E09 appears again, the cycle completes, the dishes are warm or cold, and whether water remains in the tub. Do not remove panels, test live circuits, or repeatedly reset the appliance.

   Expected result: E09 clears and the cycle completes with improved cleaning and no continuing odor, or E09 returns, the cycle stops, dishes stay cold or wet, or water remains.

   Next step: For a recurring E09 or failed cycle, stop using the dishwasher and arrange qualified Thermador service with the complete model, code photo or transcription, cycle stage, cleaning result, odor description, and drain observation.

   Why this matters

   Why: A one-time display with an ordinary cleaning or odor cause may be a user-maintenance issue, but a recurring unlisted code combined with poor cleaning or incomplete heating/draining is an internal fault pattern that the public sources do not break down into a safe part choice.
