Quick answer
A broken Whirlpool dishwasher rack adjuster can leave the upper rack uneven, hard to move, or unable to hold dishes safely. Remove the dishes, stop forcing the height buttons or lifting a loaded rack, and inspect the adjuster, wheels, rail, and track stops for visible separation or damage. Whirlpool says rack designs and removal methods vary by model, so identify the exact model before ordering a replacement adjuster or using a removal procedure. If the rack cannot stay level, blocks the spray arm, or has damaged rails or stops, keep it unloaded and arrange model-matched parts or service.
Before you begin
Safety first
- Keep checks to an unloaded rack, visible adjusters, wheels, rails, stops, and model documentation. Do not pry or bend rails, bypass a rack stop, reach into a running dishwasher, or replace an unverified part.
Work through in order
Diagnostic checks
Use only checks that match the exact appliance or system and its official guide.
-
Check 1

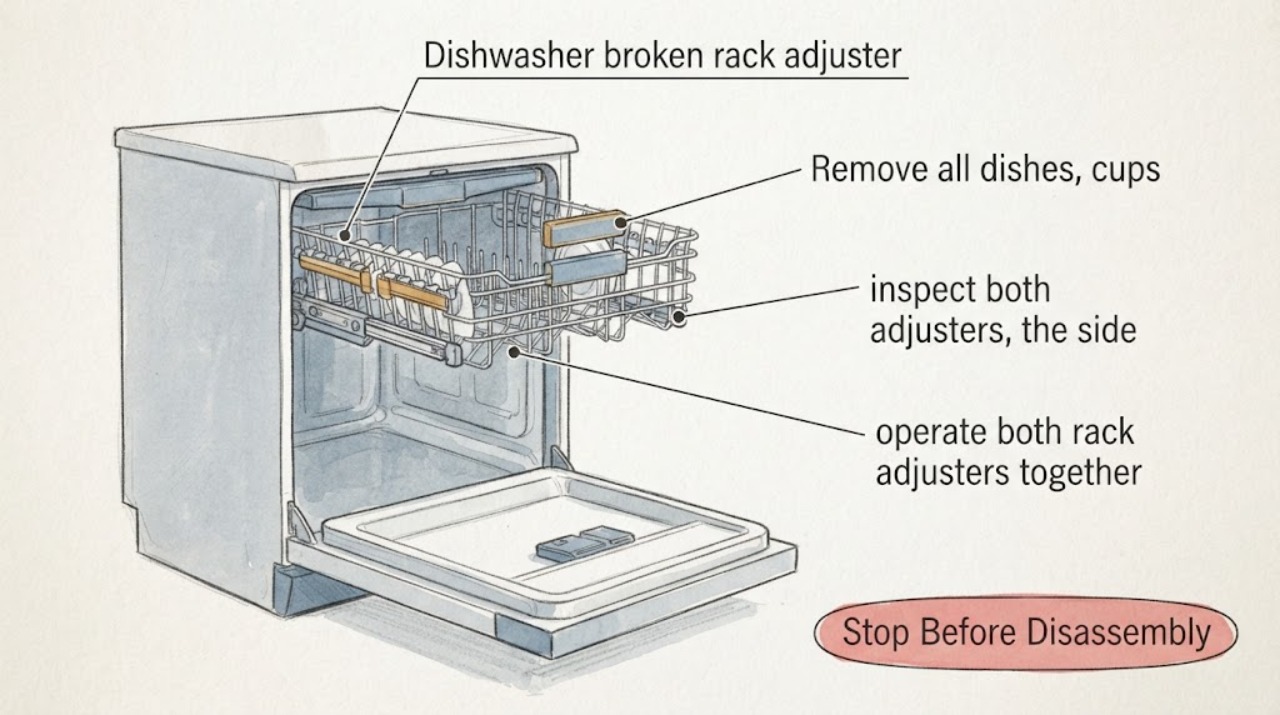

Remove all dishes, cups, and utensils from the affected upper rack before moving or inspecting it.
Expected result: The rack is empty and can be moved without a load, or dishes were supporting a tilted or falling rack.
Next step: Keep the rack unloaded for every remaining check and do not run the dishwasher until it stays supported and level.
Stop if: Unload it before proceeding; do not test a broken adjuster with dishes in place.
Why this matters
Why: Whirlpool says the upper rack should be unloaded before adjustment and dishes must be removed before rack removal; a loaded rack can hide the source of the tilt and add force to a broken adjuster.
-
Check 2
With the rack empty, inspect both adjusters, the side rails, wheels or rollers, track stops, and the rack frame for a separated housing, missing wheel, cracked plastic, or a rail that is out of position.
Expected result: The adjuster is visibly broken or detached, one side is lower, a wheel is outside the rail, or a track stop is open; alternatively the hardware looks intact and the rack is level.
Next step: Do not force the rack or height buttons. Keep it unloaded and identify the exact model before attempting a model-approved removal or replacement.
Stop if: If the rack remains difficult to move despite intact visible hardware, stop using it and use the exact manual or service rather than forcing the mechanism.
Why this matters
Why: A rack can fall or bind because of the adjuster mechanism, wheel/rail engagement, or an open stop; the appearance of an intact adjuster does not prove that an internal or model-specific part is correct.
-
Check 3
If the adjuster is intact and the model manual permits adjustment, operate both rack adjusters together with the rack unloaded, then confirm the rack is level at the selected height.
Expected result: Both sides move together and the rack becomes level, or one side sticks, drops, or cannot lock in position.
Next step: Use only the height position shown for the exact model and keep the load within the rack’s normal clearance; do not adjust a visibly broken mechanism.
Stop if: Stop forcing the buttons or rack. Keep it unloaded and move to exact-model part verification or service.
Why this matters
Why: Whirlpool describes paired adjusters or thumb levers and says the rack must be level; a one-sided movement or failure to lock indicates that continued force may worsen the damage.
-
Check 4
If the upper rack must be removed, follow the exact Whirlpool model guide: open the track stops as directed, support the rack, and remove the wheels from the rails without bending the track.
Expected result: The model guide matches the rack and the rack can be removed with the stops and wheels releasing normally, or the stop, rail, wheel, or adjuster does not release as described.
Next step: Keep the track stops closed and reinstall the rack with every wheel seated in its rail before use; verify the rack is level and does not obstruct the spray arm.
Stop if: Do not pry or improvise a release. Keep the dishwasher unloaded and request model-specific service.
Why this matters
Why: Whirlpool’s general removal guide covers common wheel and track-stop arrangements but explicitly tells owners to consult the owner manual for model-specific instructions.
-
Check 5
Use the complete dishwasher model number to verify the adjuster kit or rack assembly before ordering or installing any part.
Expected result: Whirlpool’s model-specific resource identifies the same rack style and a compatible adjuster or assembly, or the proposed part cannot be matched to the exact model.
Next step: Use only the confirmed model-matched part and its instructions; inspect the rack again after installation before loading dishes.
Stop if: Do not substitute a visually similar adjuster. Keep the rack out of use and arrange qualified service or obtain the exact model documentation.
Why this matters
Why: Whirlpool provides rack adjuster replacement-kit guidance and model-number-based literature, but the task does not establish a universal part fit.
Use your observations
Decision map
Find the observation that best matches what you see, then follow the next safe action.
-
PATH 01Next step
What you see
The adjuster, wheel, or track stop is visibly broken and the upper rack cannot stay level when empty.
Do this next
Leave the rack unloaded, record the exact model number, and verify a model-matched adjuster or rack assembly before repair or service.
Why this path and its safety boundary
Why it matters: The rack is not safely supported for dishes or a wash cycle, and continued force may damage the rail or frame.
-
PATH 02Next step
What you see
The hardware is intact, both adjusters operate together, and the empty rack locks level without binding.
Do this next
Set the rack only as the exact manual shows, confirm clearance for the spray arm, and load it lightly only after a normal empty movement check.
Why this path and its safety boundary
Why it matters: The symptom may be an adjustment or wheel/stop engagement issue rather than confirmed adjuster failure.
-
PATH 03Next step
What you see
The rack cannot be removed or reinstalled using the exact model procedure, or the rail/frame is bent or damaged.
Do this next
Do not pry, bend, or run the dishwasher with the rack loose; keep it unloaded and arrange model-matched service.
Why this path and its safety boundary
Why it matters: The common Whirlpool removal guidance is not enough to identify a safe procedure or compatible replacement for this model.
Helpful context
Understand the symptom
A rack adjuster is part of the upper-rack height mechanism. When it breaks, the rack may tilt, drop, bind in the rails, or sit where it can interfere with the spray arm. Empty the rack before checking it. Whirlpool’s general guidance requires the rack to be unloaded and level, while its removal guide warns that wheel, track-stop, and adjuster arrangements vary by model.
Do not order a rack adjuster from a picture or a similar Whirlpool model. Record the complete model number from the dishwasher rating label and use Whirlpool’s model-specific manual or parts path. The official replacement-kit guidance identifies a rack adjuster kit, but it does not make one kit universal across Whirlpool dishwashers.
If the adjuster, rail, wheel, track stop, or rack frame is visibly damaged, or the upper rack cannot stay level, leave it unloaded. Do not run a cycle with a loose rack that could fall, block the spray arm, or contact the door. Use qualified service when the repair requires cabinet access or the exact replacement cannot be confirmed.
Only after diagnosis
Potential parts
- upper-rack adjuster or adjuster kit
Only relevant if the exact model documentation matches the broken adjuster and the rail/rack frame are otherwise sound.
Whirlpool dishwasher rack mechanisms and kits vary by model; confirm the complete model number before purchase or installation. - upper-rack wheel, track stop, or rack assembly
Only relevant if inspection finds a damaged wheel, stop, rail, or rack frame rather than the adjuster alone.
Do not infer compatibility from appearance or brand alone; verify the exact model and side/position in Whirlpool documentation.
When checks do not resolve it
Need a professional?
Use Whirlpool’s exact model manual and parts path for the adjuster or rack assembly. Request qualified service for bent rails/frames, an unsecured rack, repeated binding, or any repair requiring cabinet access.
Safety scope: Keep checks to an unloaded rack, visible adjusters, wheels, rails, stops, and model documentation. Do not pry or bend rails, bypass a rack stop, reach into a running dishwasher, or replace an unverified part.
Common questions
FAQ
Can I run the Whirlpool dishwasher with a broken rack adjuster?
Do not run it with a loose or uneven rack. Remove the dishes and confirm that the rack is supported, level, and clear of the spray arm and door; otherwise keep it unloaded until the exact model-matched repair is confirmed.
Are Whirlpool dishwasher rack adjusters universal?
No universal fit should be assumed. Whirlpool’s replacement-kit guidance directs owners to model-based resources, and its rack removal guidance says procedures vary by model. Use the complete model number before ordering an adjuster or rack assembly.
How should I adjust an upper rack after replacing or reseating it?
With the rack empty, use the exact model instructions and operate both adjusters as directed. Whirlpool says the rack must be level; stop if one side sticks, drops, or will not lock.
Can I remove the upper rack to inspect the adjuster?
Whirlpool provides a general wheel and track-stop procedure, but tells owners to consult the model manual. Remove all dishes, support the rack, and do not pry a stop or rail that does not release as the exact manual describes.
Read the exact guide
Official sources
- Home Appliance Parts & Accessories | WhirlpoolWhirlpool · Opened Whirlpool official accessories page. It identifies rack adjuster as a dishwasher accessory category but does not prove a specific part fits this unmodelled dishwasher.
- Adjusting the Middle Rack - DishwasherWhirlpool · Opened Whirlpool Product Help page. It distinguishes removable and adjustable racks, requires dishes to be removed, and says the rack must be level with both adjusters operated together.
- VIDEO: Rack Adjuster Replacement Kit for DishwasherWhirlpool · Opened Whirlpool Product Help page for a dishwasher rack adjuster replacement kit. It identifies the kit category and directs owners to model-number-specific manuals and documents; it does not establish universal fit.
- Removing the Top Rack from the DishwasherWhirlpool · Opened Whirlpool Product Help page. It covers common wheel/rail and track-stop steps for removing or reinstalling an upper rack and says to consult the owner manual for the specific model.
- Difficulty Loading Dishes - DishwasherWhirlpool · Opened Whirlpool Product Help page. It says to unload the upper rack, press both rack adjusters, and lift or lower the rack until it is level.
- Top Rack Falls Down - DishwasherWhirlpool · Opened Whirlpool Product Help page. It directs owners to check wheel engagement, the closed track stop, debris, and loading interference when the rack moves or falls.
