Whirlpool whd862chc dryer error code e2 f9 — ventless dryer

Use only checks that match the exact appliance or system and its official guide.

1. Check 1

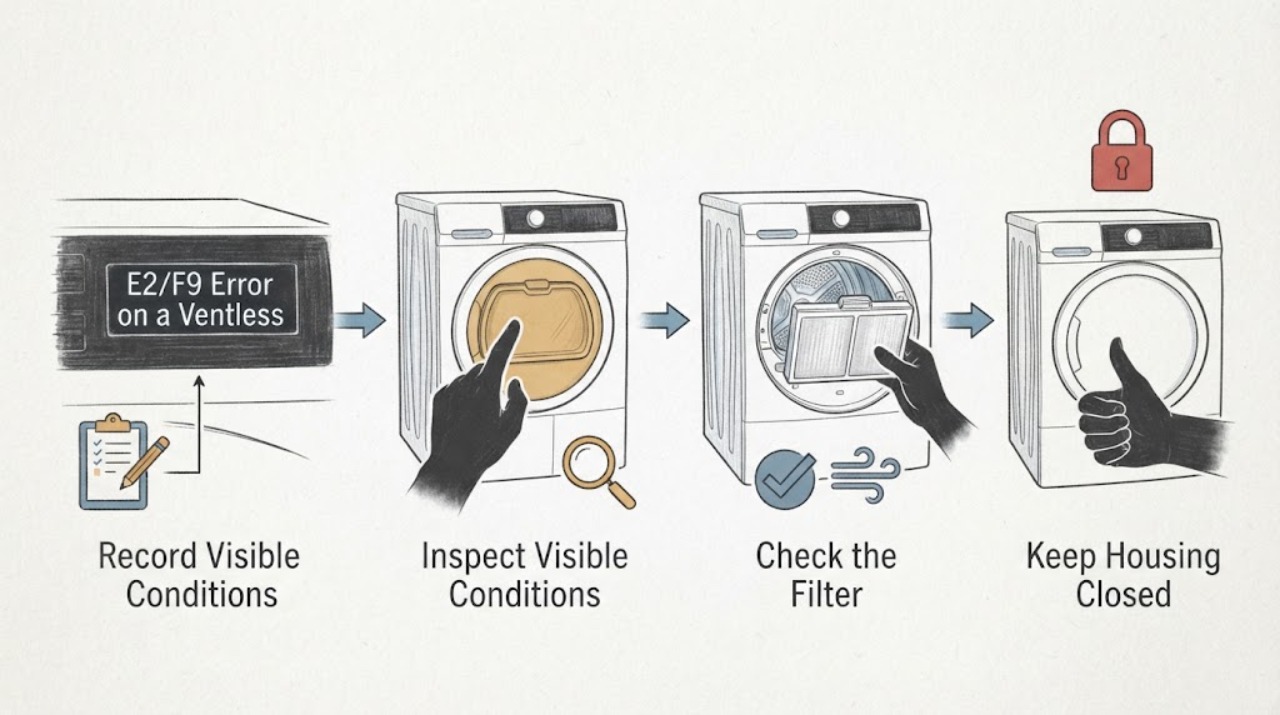

   Read the display without changing it and write down whether it is E2 then F9, F9 then E2, or another message. Confirm the complete model on the appliance label is WHD862CHC and note the cycle, stage, whether the drum runs, any water, and any heat or odor. Do not apply an error meaning from another Whirlpool dryer or washer.

   Expected result: The model is WHD862CHC and the code is the F9/E2 pair, the order differs from the help-page title, the code appears during a particular cycle, or the display is not clearly readable.

   Next step: Use the F9 E2 sequence below only if the display and model are confirmed and no hazard is present. If the code is different or the model label does not match, stop and use the exact manual or qualified service for that identity.

   Stop if: Stop without testing for smoke, burning odor, arcing, abnormal heat, a damaged cord, water near electrical parts, or a repeated power trip.

   Why this matters

   Why: Whirlpool's product page identifies this model as an electric ventless HybridCare heat-pump dryer, while the matching dryer help page is titled F9 E2. The display order and configuration matter; a similar-looking code from another platform is not a valid diagnosis.

2. Check 2

   If there is no safety symptom, follow Whirlpool's published F9 E2 sequence once: turn the dryer circuit breaker or breakers off for one minute, restore power, start a Time Dry cycle, and observe the dryer for one minute. Keep the cabinet closed and do not reach into moving or heated areas.

   Expected result: The display stays clear and the one-minute observation is normal, the code returns, the dryer stops, or the drum, heat, or controls behave abnormally.

   Next step: Do not repeat the reset. If the code returns or operation is abnormal, leave the dryer off and arrange qualified Whirlpool or appliance service with the exact display order, cycle, and result.

   Stop if: End the observation immediately for smoke, burning odor, arcing, uncontrolled heat, water near electrical parts, or another power trip.

   Why this matters

   Why: A clear one-minute check is only evidence that the published reset sequence did not immediately reproduce the display; it is not a component test. A returning F9/E2 pair is a model-specific service condition because Whirlpool's page supplies no safe owner procedure to identify the internal cause.

3. Check 3

   With the dryer off and cool, clean the lint screen in the door opening and the HybridCare filter at the bottom front only as Whirlpool describes. Pull out the filter, remove lint from the screen and foam pad, clean the accessible housing mesh with a damp cloth, household vacuum, or soft brush, then reinstall the screen, foam pad, and filter with its handle down so it locks.

   Expected result: The lint screen or HybridCare filter is blocked or dirty, the housing mesh is obstructed, the filter is not seated, or the accessible filter path is clean and correctly locked.

   Next step: Run the dryer only with the intact filter correctly seated and only if the exact code has not returned and no hazard is present. If the code returns or the filter will not seat, stop and arrange service rather than forcing the housing or opening the cabinet.

   Stop if: Do not run with a loose, damaged, blocked, or missing filter; do not use tools or liquids inside the cabinet or filter housing beyond the published cleaning method.

   Why this matters

   Why: Whirlpool says a blocked filter can increase drying time and warns not to run the dryer with a loose, damaged, blocked, or missing filter. Cleaning this user-accessible path may remove a maintenance condition, but it does not prove that it caused the E2/F9 display.

4. Check 4

   From outside the dryer, check that the lower-right rear cooling-fan screen is free of visible lint or obstruction and that the space around the ventless unit is not blocked. If the dryer must be pulled forward to see the screen, have help and keep the power off; vacuum only the visible screen with a brush attachment as Whirlpool instructs.

   Expected result: The cooling-fan screen is visibly obstructed, the surrounding space restricts airflow, or the screen and surrounding area are clear while the display returns.

   Next step: Correct only visible external obstruction and make one controlled observation if the exact code sequence permits it. If E2/F9 returns, stop and book qualified service; do not diagnose a fan or sensor by sound alone.

   Stop if: Do not reach behind moving equipment, remove covers, or continue if the dryer is hot, unstable, damaged, or difficult to move safely.

   Why this matters

   Why: Whirlpool identifies the lower-right rear cooling-fan screen as an accessible HybridCare care point. A clear screen does not rule in or rule out an internal fan, sensor, heat-pump, or control problem, and no panel removal is justified.

5. Check 5

   If there is water in the filter area or on the floor, check only the accessible installation conditions: the dryer is level within Whirlpool's stated slope limit, the HybridCare filter is seated, and the supplied drain hose is not crushed, kinked, or routed above the stated maximum height. Do not open the water system or pump compartment.

   Expected result: The dryer is out of level, the filter is not seated, the drain hose is restricted or too high, water is accumulating, or these external conditions are correct.

   Next step: Correct only a visible hose-routing or filter-seating issue using the installation guidance. If water remains, the code returns, or any water is near electrical parts, keep the dryer off and arrange qualified service.

   Stop if: Stop immediately for water near electrical parts, a leak that is not resolved by the accessible check, or any need to access the pump, wiring, or sealed heat-pump system.

   Why this matters

   Why: Whirlpool links water on the floor for HybridCare dryers to level, filter seating, and drain-hose installation. This is a separate water-management check; it does not establish that a pump, sensor, or control caused E2/F9.
