Start here
Quick answer
Do not identify the undocumented multiple-arrow light on an AEG F89088VI-S from its appearance or from a different AEG chart. The related exact-model discussion contains only a community guess that it may be the salt indicator, while AEG says dishwasher models can have different indicators and directs owners to the model code and product number (PNC) on the rating plate for the matching manual. Photograph the complete rating plate and the light, retrieve the manual for that PNC, and follow only the symbol and start/reset instructions shown for that exact appliance. If the programme will not start, check the door closure and delay setting and use the model-documented reset; persistent flashing or a damaged door, leak or electrical smell needs authorised service.
Before you begin
Safety first
- Do not bypass the door interlock, force the latch, open the control panel, replace a board or add chemicals/parts based on the light's shape. If there is a leak, scorching, electrical smell or damaged door, stop using the dishwasher and arrange qualified service; isolate water or power only when safe.
Work through in order
Diagnostic checks
Use only checks that match the exact appliance or system and its official guide.
-

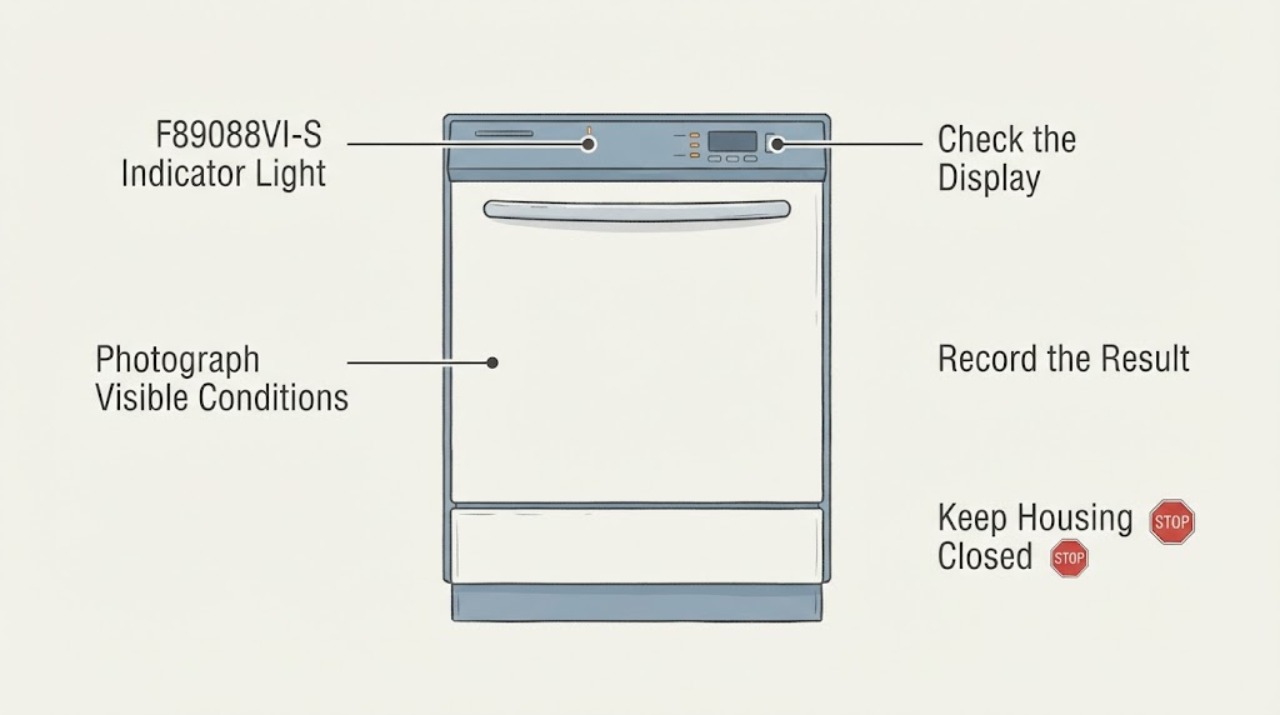

Check 1
With the dishwasher safely off and accessible, photograph the entire rating plate and transcribe the model code, PNC, ML code and serial number. Also record whether the undocumented light is steady or flashing and whether the programme starts.
Expected result: The plate shows a complete PNC and model code, or the plate is missing, unreadable or inconsistent with F89088VI-S.
Next step: Use the complete PNC/model for the official AEG manual search; if it cannot be read, keep the light meaning unresolved and send the plate photo and panel photo to AEG or an authorised service centre.
Why this matters
Why: A complete rating plate gives AEG the identifiers needed to select the right manual. An unreadable or inconsistent plate means the assigned model identity is not enough to decode the light reliably.
-
Check 2
Search AEG's official manuals portal with the exact PNC and model code, then compare the manual's indicator diagram and wording with the physical light. Check the purchase-country version when the appliance was imported.
Expected result: The PNC-matched manual names and depicts the same indicator, or the portal returns a different diagram/no matching manual.
Next step: Follow only the matching manual's user-level instruction. If it does not match, stop guessing and submit the PNC, panel photo and manual mismatch to AEG support.
Why this matters
Why: A matching manual is the only reliable basis here for distinguishing salt, rinse aid, a programme phase, maintenance or an error indication. A different or missing diagram leaves the indicator meaning unconfirmed.
-
Check 3
If the light accompanies a dishwasher that will not start, check from outside that the door closes fully with an audible click and that a delay-start countdown is not active. Use the RESET/CANCEL control only as labelled in the panel or exact manual.
Expected result: The door closes and the delay is cancelled, and a documented reset clears the cycle; or the light keeps flashing and the programme remains blocked.
Next step: If the cycle remains blocked, stop trying repeated starts and contact an authorised service centre. Do not force the latch, bypass a door interlock or open the control panel.
Why this matters
Why: AEG lists an incompletely closed door, delay start and an uncleared cycle among the external causes of a flashing cycle indicator with no start. A persistent condition after those checks may need service, but it still does not decode an undocumented icon.
-
Check 4
Only when the PNC-matched manual explicitly identifies the light as salt, rinse aid or a maintenance phase, inspect or replenish that user-accessible item exactly as the manual describes; do not use the related Reddit guess as the instruction.
Expected result: The exact manual confirms the symbol and the appliance has the corresponding low-level indication, or the manual does not name the symbol.
Next step: Perform only the named maintenance step and observe whether the indicator clears as the manual says. If it does not, or if the manual does not identify it, use authorised service rather than adding parts or chemicals by guess.
Why this matters
Why: A named symbol supports a limited user maintenance action. An unnamed or different symbol may represent another option, phase or fault and cannot be safely mapped by appearance.
Use your observations
Decision map
Find the observation that best matches what you see, then follow the next safe action.
-
PATH 01Next step
What you see
The PNC-matched AEG manual shows the same icon and explicitly names it as salt, rinse aid, a maintenance phase or another user-level indicator.
Do this next
Follow only the named manual step and its clear/reset behavior; escalate if the indicator remains after the documented action.
Why this path and its safety boundary
Why it matters: The exact manual, rather than the icon's appearance or a related-model comment, establishes what that indicator means for this appliance.
-
PATH 02Next step
What you see
The rating plate or PNC is unreadable, the AEG portal returns no exact manual, or the panel drawing does not match the document.
Do this next
Keep the appliance on its normal safe state, save the plate and panel photos, and ask AEG or an authorised service centre to identify the appliance from the PNC. Do not order a board or replace a component from the light's shape.
Why this path and its safety boundary
Why it matters: The indicator meaning and any model-specific procedure remain unresolved; a generic AEG symbol chart cannot establish the F89088VI-S light's identity.
-
PATH 03Next step
What you see
The light is flashing and the dishwasher still will not start after the door clicks shut, delay start is cancelled and the exact panel reset is used.
Do this next
Stop repeated start attempts and book an authorised service visit. Do not force the door, bypass the interlock or remove the control panel.
Why this path and its safety boundary
Why it matters: AEG's external start checks have not resolved the condition, so an internal fault or model-specific procedure is possible but is not identifiable from the undocumented light alone.
-
PATH 04Next step
What you see
There is a leak, damaged door or latch, electrical smell, scorching, exposed wiring or unsafe water/electrical condition.
Do this next
Stop using the dishwasher and isolate water or power only if it can be done safely without reaching damaged parts; arrange qualified service. Do not energise it to reproduce the light.
Why this path and its safety boundary
Why it matters: The situation is beyond icon identification and presents a safety or property-damage risk.
Helpful context
Understand the symptom
An icon that is absent from the supplied manual is an identity problem before it is a component diagnosis. The related exact-model thread confirms an AEG F89088VI-S dishwasher and a light that the user could not match to the manual, but the replies only speculate about salt. AEG's own symbol guide says different dishwasher models can have different indicators and sends the reader to the model-specific manual. Treat the icon as unresolved until the rating-plate data and the matching document agree.
Capture the complete identity before decoding the light
Photograph the whole rating plate while the appliance is safely accessible. Record the model code exactly as printed, the nine-digit product number (PNC), ML code and serial number, then photograph the front-panel light in both its steady and flashing states if doing so does not require running an unsafe cycle. AEG's manual portal says the model code and PNC are on the rating plate and uses those values to search its documentation; if the search returns no document, it provides a support request route.
Use the PNC-matched manual, not a similar AEG symbol
Search AEG's official manual page with the recorded PNC and model code, including the purchase country or region. Compare the exact front-panel drawing and the wording in that document with the appliance. The official guide separately describes salt, rinse-aid, cleaning-phase and rinse-phase indicators, but it also says the available indicators vary between models. Therefore the light in this F89088VI-S case must not be labelled salt, rinse aid, Machine Care or an error code unless the exact PNC-matched document names that symbol.
If the light is accompanied by a programme that will not start
AEG's generic dishwasher guidance for a flashing cycle indicator and a programme that will not start is limited to external checks: make sure the door is fully closed and clicks, cancel or wait out a delay start, and hold the RESET/CANCEL control normally highlighted on the panel to abort the cycle. After the reset, select a programme only if the appliance is otherwise safe. Those steps address a start condition; they do not prove that an unlisted symbol has a particular meaning. If the programme still will not start, contact an authorised service centre.
What the available community evidence does and does not show
A related exact-model Reddit discussion contains a suggestion that the red light could be salt and a comment that the machine might still run without salt. Neither comment is an AEG manual, neither confirms the symbol on this appliance, and the thread does not provide a verified repair outcome. Use it only as a reason to inspect the exact model documentation, not as permission to refill a reservoir or replace a part based on an icon guess.
When checks do not resolve it
Need a professional?
Safety scope: Do not bypass the door interlock, force the latch, open the control panel, replace a board or add chemicals/parts based on the light's shape. If there is a leak, scorching, electrical smell or damaged door, stop using the dishwasher and arrange qualified service; isolate water or power only when safe.
Have this ready
- Provide the complete model code, PNC, ML code and serial number, purchase country, a clear rating-plate photo, a panel photo showing the light, whether it is steady or flashing, whether the programme starts, and the external checks already performed.
Common questions
FAQ
Is the multiple-arrow light definitely the salt indicator?
No. A related exact-model Reddit reply guesses salt, but that is not an AEG definition. AEG says indicators vary by dishwasher model; identify the full PNC and use the matching manual before calling it salt, rinse aid or a fault.
Where do I find the PNC for the AEG dishwasher?
AEG says the model code and product number (PNC) are on the appliance rating plate. The same plate also identifies the ML code and serial number; photograph the full label rather than transcribing only the front-panel model name.
What can I check if the flashing light is stopping a programme from starting?
From outside the appliance, make sure the door fully closes with a click, cancel or wait out a delay start, and use the RESET/CANCEL control identified by the exact panel or manual. If the programme remains blocked, use authorised service rather than bypassing the latch or guessing the indicator meaning.
Can I order a board or sensor from the light's shape?
No. The light has not been matched to an exact PNC manual, and the community discussion does not identify a failed component. Give AEG or an authorised technician the rating-plate data and photos so any part decision is made against the correct appliance.
Read the exact guide
Official sources
- AEG User Manuals: How to Find & Download InstructionsAEG UK Support · The page says to enter the model number/PNC on AEG's official manuals page, states that the PNC is on the rating plate, and links authorised service. It is a lookup and service-boundary source, not an exact F89088VI-S indicator definition.
- Download User Manuals - Support | AEGAEG UK · The portal lists dishwashers and instructs owners to search by model code or product number (PNC); it identifies the model code, PNC, ML code and serial number on the rating plate and offers a request route if no manual is found. It does not itself confirm the undocumented light's meaning.
- Symbole und Programme Ihres AEG GeschirrspülersAEG Deutschland Support · AEG states that different dishwasher models can have different indicators and directs owners to the model manual. It describes named salt, rinse-aid and phase indicators only as examples; it does not identify the assigned F89088VI-S light.
- Don’t what the red light means/ can’t use the dish washer, can’t find it on the manual/ model number:F89088VI-SReddit r/fixit · The opened thread names the exact assigned model and a light not found in the user's manual. Replies speculate about salt and do not establish an official symbol meaning, compatible part or repair outcome.
- Program not starting and cycle indicator light flashing on dishwasherAEG UK Support · The opened AEG guidance applies to built-in and freestanding dishwashers and covers filter/salt-cap/basic setup checks, fully closing the door, cancelling delay start, RESET/CANCEL and authorised service. It does not decode the undocumented multi-arrow light.
