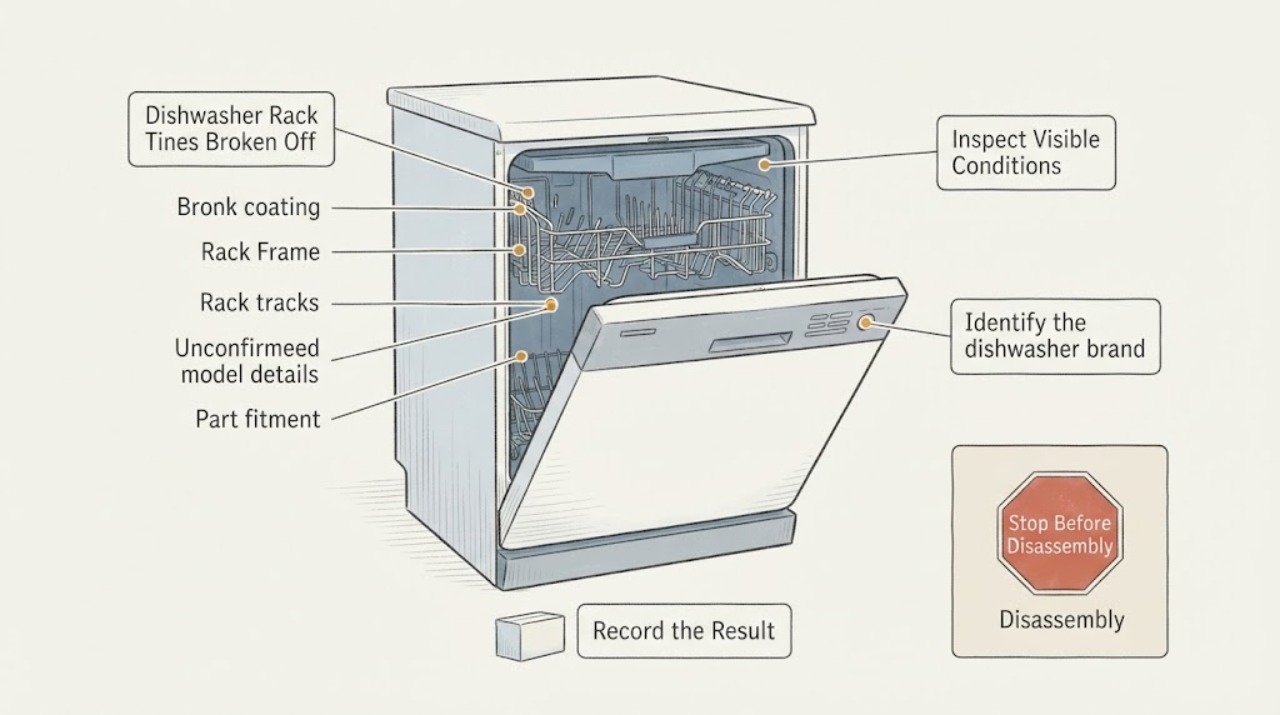

Dishwasher Rack Tines Broken Off: Safe Checks Before Repair or Replacement

Use only checks that match the exact appliance or system and its official guide.

1. Check 1

   Cancel or leave the dishwasher off, open the door only as far as it moves freely, and unload the affected rack. Feel visually for a sharp exposed wire without running a finger along it; look for a loose tine, loose coating, bent rack wire or pieces that could fall into the tub.

   Expected result: The rack has a sharp or loose piece, an exposed wire, a detached tine, or a fragment in the tub; alternatively, the damage is only a smooth coating chip with no loose or sharp piece.

   Next step: If any piece is sharp, loose or in the tub, keep the affected rack out of use and remove only a loose fragment that is plainly accessible with the appliance off; arrange model-specific parts or service. If the coating is the only damage, continue with the fit and clearance checks before considering a repair kit.

   Stop if: Stop handling the rack if it is under tension, a wire is protruding from the frame, or a fragment cannot be removed without tools or disassembly.

   Why this matters

   Why: A loose or sharp rack part can injure someone, catch dishes or enter the wash path. A coating-only chip is the narrower condition addressed by Whirlpool's rack repair-kit guidance, while the page does not say that a broken rack wire can be restored by that kit.

2. Check 2

   Identify the dishwasher brand and complete model number from the rating label or owner manual, then compare the damaged rack section with that model's parts diagram or manual. Do not order a replacement rack, tine row, wheel or repair kit from a generic photo or color match.

   Expected result: The complete model and rack position are known, or the model is missing/ambiguous and the rack design cannot be matched.

   Next step: If the model is known, use the manufacturer's documentation or parts lookup to verify the rack position and fit before purchasing. If it is unknown, photograph the label and rack and use a service or manufacturer parts channel rather than guessing a universal part.

   Why this matters

   Why: Whirlpool's official rack-removal guidance states that rack styles and removal details vary and directs users to the owner manual for specific model instructions. Without the exact model, compatibility and whether a tine is separately replaceable remain unresolved.

3. Check 3

   With dishes removed, roll the affected rack slowly and observe both sides. Check whether every visible wheel remains in its rail, each track stop is closed, and the rack stays level; look for a bent frame or an obstruction from a broken tine.

   Expected result: The rack rolls level with wheels engaged and stops closed, or it catches, tilts, pulls out of a rail, or cannot reach its normal position.

   Next step: If movement is normal, continue to check spray-arm and door clearance. If it catches or tilts, do not force it or run the dishwasher; follow the exact manual for a model-approved rack inspection or request service.

   Why this matters

   Why: Whirlpool says a rack that falls or moves poorly can result from wheels not engaged in the rail, an open rack stopper, debris or large objects interfering with movement. A catch or tilt together with a broken tine raises a rack/frame or rail issue beyond a coating repair.

4. Check 4

   After the rack is empty, rotate the accessible spray arm by hand and close the door gently while watching for contact. Recheck that no broken tine, rack wire or tall item enters the spray-arm path or presses against the door seal or dispenser.

   Expected result: The spray arm turns freely and the door closes without contact, or a tine/rack edge blocks rotation, rubs the seal, touches the door or prevents closure.

   Next step: If clearance is normal, use only an undamaged rack position until the exact repair path is confirmed. If there is contact or the door cannot close normally, stop using the dishwasher and arrange model-specific rack/frame service; do not bend the rack back by force.

   Why this matters

   Why: Whirlpool's loading guidance says large or poorly positioned items can obstruct spray arms, and its rack guidance treats rack movement and proper loading as separate checks. Contact means the dishwasher is not safe to run with that rack in its current condition, regardless of whether the coating damage looks small.

5. Check 5

   If the damage is limited to a chip or scratch in the rack's protective coating, photograph the area and compare the manufacturer's rack-repair guidance with the exact model manual. Check later for exposed metal, rust bleeding, a spreading chip or a tine that has become unstable.

   Expected result: Only the coating is chipped/scratched and the tine remains rigid and safe, or the metal is exposed/rusting or the tine/frame is structurally damaged.

   Next step: For a coating-only result, use a repair product only after the exact model/manual and product instructions confirm applicability, and monitor the repaired area. For exposed rust, a bent/detached tine or a spreading defect, keep the rack out of service and obtain a model-specific rack or service recommendation.

   Why this matters

   Why: Whirlpool says a rack repair kit can cover chips and scratches on rack tines, and explains that a nicked or cracked coating can expose underlying metal and allow rust to bleed. The guidance does not make the kit a structural repair or confirm fit for an unspecified model.
