Start here
Quick answer
On the Electrolux EWF7525EQWA, E20 is the no-drain branch: Electrolux's Singapore support page explicitly includes this model in its E20/E21/C2 guidance and describes checking the drain hose position, drain height, external drain path, and pump/filter only according to the model manual. The exact EWF7525EQWA manual shows rear drain-hose routing and an emergency-drain procedure, while it does not give a front-access filter-cleaning step. Do not keep looking for a front filter, tip the washer, remove a bottom cover, or disconnect an internal pump. First stop the cycle, protect against water, verify the display and model, and inspect only the visible rear hose and household drain. If the hose and sink path are clear but E20 or standing water remains, keep the washer off and arrange Electrolux service rather than guessing a pump or control part.
Before you begin
Safety first
- Owner checks stop at safe water/power isolation, label and display identification, visible rear drain-hose and household-drain inspection, and confirmation of whether an external filter is actually identified by the exact manual. Do not tip or lift the washer, remove a bottom/front cover, access an under-drum filter or pump, probe live wiring, touch an impeller, or replace a pump, pressure system, wiring, or control board solely from E20.
Work through in order
Diagnostic checks
Use only checks that match the exact appliance or system and its official guide.
-

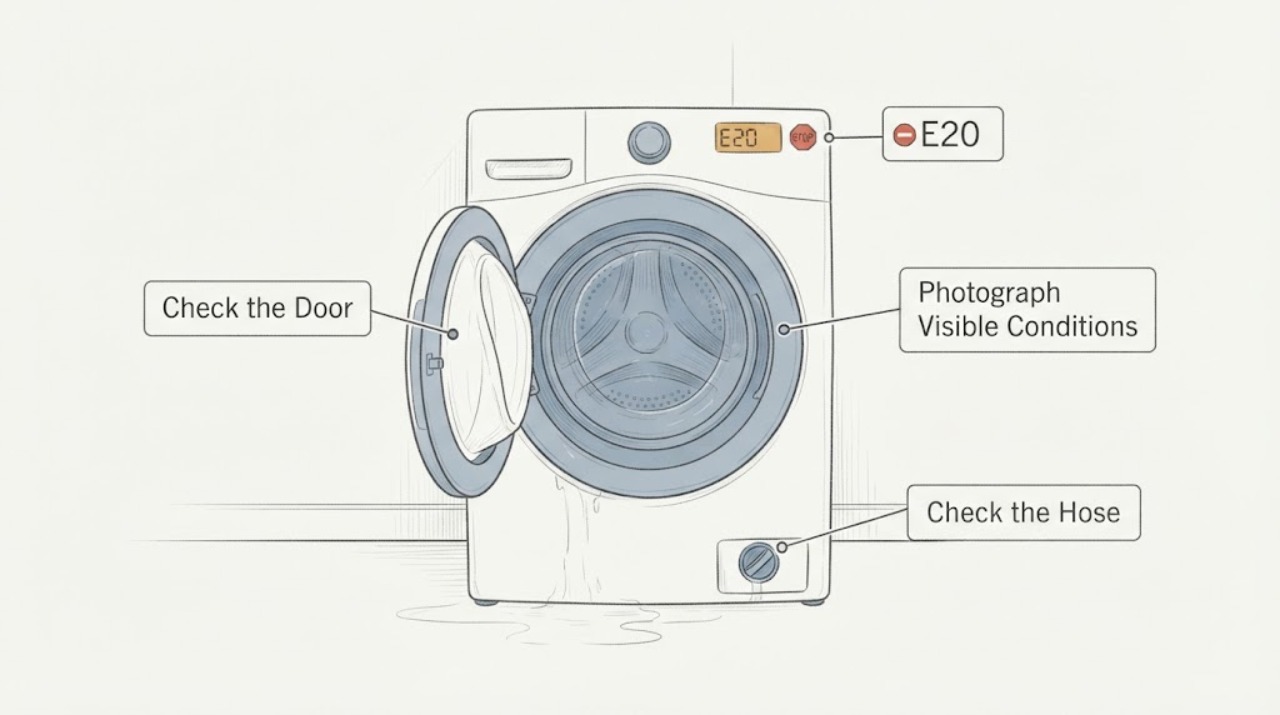

Check 1
Stop the cycle and leave the drum still. If there is water on the floor, continuous leakage, smoke, a burning smell, a hot or damaged cord, or water near the electrical connection, turn off the water supply and isolate power only from a dry, safely reachable position. Do not open the door against a full tub, tip the washer, or reach underneath it.
Expected result: The tub is empty and the machine is dry, or water remains in the tub/on the floor or an electrical, heat, or mechanical hazard is present.
Next step: For water, heat, smoke, or electrical hazards, keep the water off and arrange qualified service. If the washer is dry and stable, continue only with external identification and visible hose checks.
Stop if: Do not force the door, tilt or lift the appliance, remove a lower cover, or work around water and power together.
Why this matters
Why: E20 can leave water inside, and a leak or water near electrics changes the task from a drain-path check to a safety stop. The exact manual requires the appliance to be deactivated before checks and warns against self-repair.
-
Check 2
Photograph the display and read the rating plate without moving the washer. Record the complete model EWF7525EQWA, the product number/PNC if shown, market, and the exact message or beep/flash pattern. Confirm that it is E20 rather than E21, C2, or a non-code symptom.
Expected result: The label and display match EWF7525EQWA and E20, the model/PNC is different or unreadable, or the display is another code/pattern.
Next step: Use the full label to retrieve the matching regional manual. If the identity or code is uncertain, do not apply an E20 filter or reset instruction from another Electrolux platform; provide the record to service.
Stop if: Do not pull the washer out, remove panels, or use a guessed model number to obtain a repair procedure.
Why this matters
Why: Electrolux groups E20, E21, and C2 in a common water-related support path, but the exact manual and installation details still control. A different model, market, or code can change the drain procedure and filter location.
-
Check 3
From an accessible position and without tipping or disconnecting the washer, inspect the visible drain hose at the rear and its household connection. Look for a kink, crushing, twist, a loose connection, an overly deep insertion into the drain, a low or unsupported hose route, and a sink trap or spigot that is not draining normally. Do not detach a hose while the tub is full or the water supply/power is not safely isolated.
Expected result: The hose is visibly kinked/crushed, the end is installed incorrectly, the sink trap is blocked, a connection leaks, or the visible path is clear and correctly supported.
Next step: Correct only a plainly visible installation issue with the water and power safely controlled and according to the exact manual. If the household drain is blocked or a hose connection leaks, resolve that plumbing issue or call a plumber; if the path is clear, continue to the no-front-filter boundary.
Stop if: Do not run repeated drain tests, place the hose on the floor as a permanent setup, or open a pressurized connection with water in the tub.
Why this matters
Why: Electrolux's E20 guidance treats hose position, drain height, sink/spigot blockage, and household drainage as separate causes before internal pump diagnosis. The EWF7525EQWA manual requires the drain hose to remain supported, un-twisted, ventilated, and raised at the drain point according to its installation diagram.
-
Check 4
Look for an external drain-filter flap only if the exact regional EWF7525EQWA manual identifies one. If there is no front filter door, do not remove the kickboard, bottom cover, pump, or any internal hose to find a hidden filter; record that the user-accessible front-filter route is absent. A same-model community report may be kept as context, not as a repair instruction.
Expected result: An external filter is clearly identified by the matching manual, no front filter is present, or access would require tilting, lifting, removing a cover, or exposing internal parts.
Next step: If the manual clearly gives a safe external filter procedure, follow only that procedure after the water cools and power is disconnected. If no front filter exists or internal access is required, stop and request service rather than tipping or dismantling the washer.
Stop if: Do not lay the washer on its side, remove the bottom/front structure, unscrew the pump, or probe the impeller/filter area.
Why this matters
Why: Electrolux states that filter appearance and arrangement vary by model and directs owners to the machine's manual. The exact EWF7525EQWA manual supplies rear drainage information but does not establish a safe owner-accessible front filter; the same-model Reddit report describes internal access, which is outside this user check.
-
Check 5
After the visible hose and household drain are documented, record whether the tub still contains water, whether the washer makes a drain sound without emptying, whether E20 returns immediately, and whether the drum fails to spin because draining has not completed. Do not touch the pump, listen with panels removed, or use a live electrical test to distinguish pump from control.
Expected result: The hose/drain path is clear but water remains or E20 returns, the tub empties after a visible installation correction, or the appliance has unusual noise, leakage, or electrical symptoms.
Next step: Keep the washer off and arrange Electrolux or qualified appliance service for persistent E20, standing water, unusual drain noise, or internal-access needs. Give the provider the display photo, model/PNC, hose observations, and whether the tub emptied.
Stop if: Do not keep restarting a washer with standing water, open the cabinet, or order a pump or control board from E20 alone.
Why this matters
Why: A clear external path with continued E20 leaves internal pump, pressure, wiring, or control causes unresolved; the code does not select one of those components. A single corrected installation issue can explain the symptom, but recurrence needs service.
Use your observations
Decision map
Find the observation that best matches what you see, then follow the next safe action.
-
PATH 01Next step
What you see
EWF7525EQWA is confirmed, E20 is displayed, and the visible rear hose or sink connection is kinked, crushed, too low/deep, leaking, or connected to a blocked household drain.
Do this next
With water and power safely controlled, correct only the visible hose arrangement or have the household drain repaired according to the exact manual. Do not leave the hose permanently on the floor or run repeated tests.
Why this path and its safety boundary
Why it matters: The pattern fits Electrolux's installation or household-drain branch more closely than a proven pump failure.
-
PATH 02Next step
What you see
The external hose and household drain are clear, but E20 returns or water remains and there is no front filter door on the EWF7525EQWA.
Do this next
Keep the washer off, protect the floor, and request Electrolux service. Do not tip the appliance, remove a bottom cover, or dismantle the drain pump/filter.
Why this path and its safety boundary
Why it matters: The no-front-filter design changes the next decision: the remaining pump/filter/pressure path is not an owner-accessible front check. E20 still does not prove which internal component is at fault.
-
PATH 03Next step
What you see
E20 clears after one plainly visible hose or household-drain correction, the tub empties, and there is no leak, unusual noise, electrical symptom, or recurring code.
Do this next
Monitor the next normal cycle only when the appliance is dry and stable. Stop and arrange service if E20 returns, water remains, or the hose connection leaks.
Why this path and its safety boundary
Why it matters: A drain-installation or household-outlet restriction was more likely than a confirmed internal part failure, but the correction does not certify the pump or pressure system.
-
PATH 04Next step
What you see
The model/PNC cannot be confirmed, the display is not E20, or the proposed check would require moving, tilting, opening, or electrically testing the washer.
Do this next
Stop the DIY path, keep water off if there is a leak, and provide the label, display photo, and visible hose observations to Electrolux or qualified service.
Why this path and its safety boundary
Why it matters: The exact model-specific drain and filter boundary is unresolved; Electrolux's general E20 page cannot authorize an internal procedure for a different identity or a non-E20 condition.
-
PATH 05Safety boundary
What you see
There is flooding, a hot or damaged cord, water near electrics, smoke, burning smell, exposed internal parts, violent movement, or a door that cannot be safely managed with water in the tub.
Do this next
Keep clear, turn off the water supply, isolate power only from a safe dry position, protect the floor, and obtain qualified appliance/electrical service. Do not restart or tilt the washer.
Why this path and its safety boundary
Why it matters: This is a water, electrical, heat, or mechanical safety stop rather than an ordinary E20 drain check.
Safety stop: Leave the appliance out of service until the responsible qualified provider confirms a safe repair.
Helpful context
Understand the symptom
E20 means the washer is not draining, but it does not prove that the drain pump has failed. Electrolux's E20 guidance separates installation and household-drain checks from pump/filter handling and tells owners to use the supplied model manual. On EWF7525EQWA, the exact manual shows the drain hose and emergency-drain arrangement; the absence of a front filter door is a boundary, not an invitation to open the underside.
A Reddit owner of the same EWF7525EQWA reports no front filter and describes internal access below the drum. That is a useful identity clue only. It is not an Electrolux-approved repair procedure, and this article does not reproduce the reported tipping, cover removal, or pump/filter work.
When checks do not resolve it
Need a professional?
Contact Electrolux service when E20 recurs, water remains after the visible drain path is clear, there is no front filter and internal access would be required, the display/model identity is uncertain, or there is a leak, unusual pump noise, electrical symptom, or unsafe door condition.
Safety scope: Owner checks stop at safe water/power isolation, label and display identification, visible rear drain-hose and household-drain inspection, and confirmation of whether an external filter is actually identified by the exact manual. Do not tip or lift the washer, remove a bottom/front cover, access an under-drum filter or pump, probe live wiring, touch an impeller, or replace a pump, pressure system, wiring, or control board solely from E20.
Have this ready
- Provide the exact EWF7525EQWA model and PNC/serial/market, a photo of the display, whether the tub contains water, the visible hose route and sink/drain condition, whether an external filter door exists, any leak or unusual noise, and the checks already performed without moving or opening the machine.
Common questions
FAQ
What does E20 mean on the Electrolux EWF7525EQWA?
Electrolux's E20 support path describes a washer that cannot drain. It can involve the drain hose position, household drain, filter/pump path, or another internal condition; E20 alone does not prove that the drain pump must be replaced.
Where is the front drain filter on EWF7525EQWA?
Do not assume this model has the front filter shown in generic Electrolux instructions. The exact EWF7525EQWA manual documents rear drain-hose and emergency-drain information, while a same-model owner reports no front filter. If the matching regional manual does not identify a safe external filter, do not tip or dismantle the washer; arrange service.
Can I lay the EWF7525EQWA on its side to reach the drain filter?
Not as an owner troubleshooting step for this E20 report. Tipping can release residual water and exposes internal parts; the task's exact manual and Electrolux guidance do not establish a safe user procedure for under-drum access. Keep the washer stable and ask service to handle internal access.
What can I check without a front filter?
After safely stopping the washer, verify the exact display and model, inspect the visible rear drain hose for kinks or an incorrect route, and check that the sink trap or household drain is not blocked. If E20 returns or water remains with that path clear, stop rather than opening the pump area or guessing a part.
