Electrolux Washer Repair Guides

On an Electrolux front-load washer, E41 means the control system thinks the door switch is open. For the assigned EFLW317TIW2, first confirm the complete model and market from the tag, then stop the cycle and inspect only the visible door opening, gasket, latch area, and floor.

Stop the Electrolux EFLW417SIW0 washer when a burning smell appears during a cycle. Press Pause or Cancel only if you can do so without approaching smoke, sparks, flames, or a hot electrical area; then isolate power from a dry, safe position without touching a wet or damaged plug.

On an Electrolux EIFLS20QSW00, “Check the tap” does not automatically mean the wall supply is weak. The exact Owner's Guide lists no or slow fill, uninstalled or closed hot and cold hoses, inadequate pressure, kinked hoses, or blocked inlet screens; it also says that water entering while the tub does not fill can be caused by a drain standpipe that is too low and siphoning the water away.

The Electrolux ELFW7437AW settings in this report do not by themselves prove a defective washer. Electrolux identifies this as a front-load washer, and its owner guide describes Normal as moderate agitation and moderate cleaning motion for normally soiled cotton, mixed loads, and bedding except comforters; Warm is for normally soiled white or colorfast cottons or blends, while Low spin mainly reduces wrinkling and is not a guarantee against wash abrasion.

Stop the Electrolux EW6SN526W as soon as a bra wire or other metal object is suspected between the drum sections; do not run another cycle to see whether the scraping stops. Disconnect the washer before inspecting the door seal, drum holes and any externally accessible drain filter, and wait for hot water to cool before opening a filter.

On the Electrolux EWF7525EQWA, E20 is the no-drain branch: Electrolux's Singapore support page explicitly includes this model in its E20/E21/C2 guidance and describes checking the drain hose position, drain height, external drain path, and pump/filter only according to the model manual. The exact EWF7525EQWA manual shows rear drain-hose routing and an emergency-drain procedure, while it does not give a front-access filter-cleaning step.

Treat a suspected cracked water intake valve on an Electrolux front-load washer as a leak-control problem first, not a parts-ordering question. Turn off the hot and cold washer supply valves, wipe up water, and disconnect power only if it is safe to do so.

On the Electrolux TW41K7138, first preserve the exact display and rating-plate identity rather than treating E91 as a failed part. Electrolux's opened E90/E91/E92/E93/E94 support article describes these messages as configuration or communication problems with electronic parts, applies the guidance to top-load washers, and recommends removing the plug for 30 seconds before contacting an Authorized Service Center if the message remains.

Treat “bearing noise” as a symptom description, not a confirmed diagnosis. Electrolux says washer noise can come from a heavy or unbalanced load, an uneven installation, transit bolts, loose hoses, objects in the drum or normal pump/motor operation.

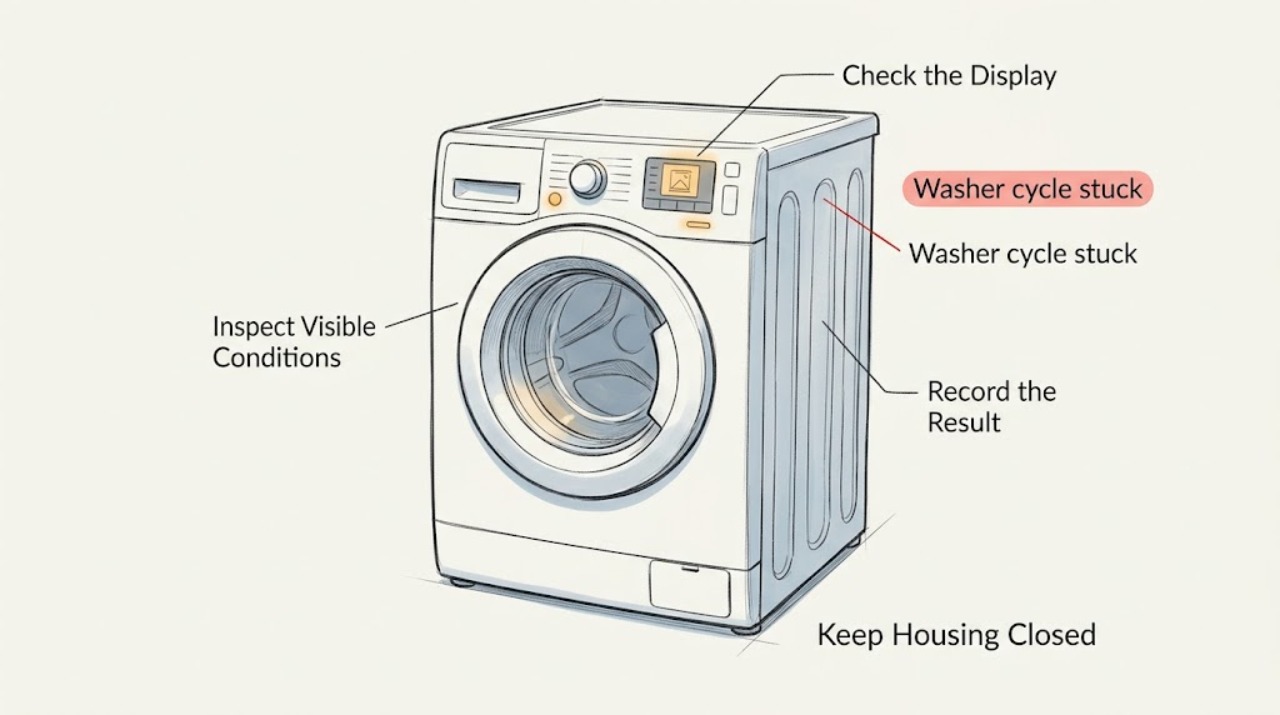

A stuck Electrolux washer cycle is best diagnosed by the stage where the timer, display, or drum stops: filling, washing, draining, spinning, or releasing the door. First note the displayed code, water level, sounds, and whether the door is locked; press Cancel only as your model permits and do not force the door.

An Electrolux washer door-switch error means the appliance is not recognizing a safe closed-and-locked door; it does not prove that the door-lock switch or another part has failed. Record the exact display text and model first.

An Electrolux washer that bangs, shakes, or moves during spin does not automatically have a failed drum suspension. First stop the cycle if the machine is walking, leaking, or striking its cabinet; then, with power disconnected, check the installation, transit bolts, level and stable floor, load distribution, hoses, and accessible filter or drum area.

Do not treat E33 as a universal Electrolux washer diagnosis. An opened Electrolux technical alarm guide lists E33 on specific EWM1000-family platforms as an inconsistency between pressure-level information and the anti-boiling pressure switch, with a safety-drain response; the exact table and display method depend on the platform.

If an Electrolux washer displays E59, stop using it rather than choosing a motor, inverter, or control-board part from the code alone. Electrolux UK's opened support article groups E59 with E50, C9, and F9 and describes a motor fault for the applicable washing-machine and washer-dryer platforms; it says to stop using the appliance, unplug it, turn off the tap, and arrange service.

On Electrolux washing machines, E69 is included in the E6 family, which Electrolux describes as generally referring to a heating problem. That grouping does not prove that the heating element, sensor, wiring, or control board is the failed part.

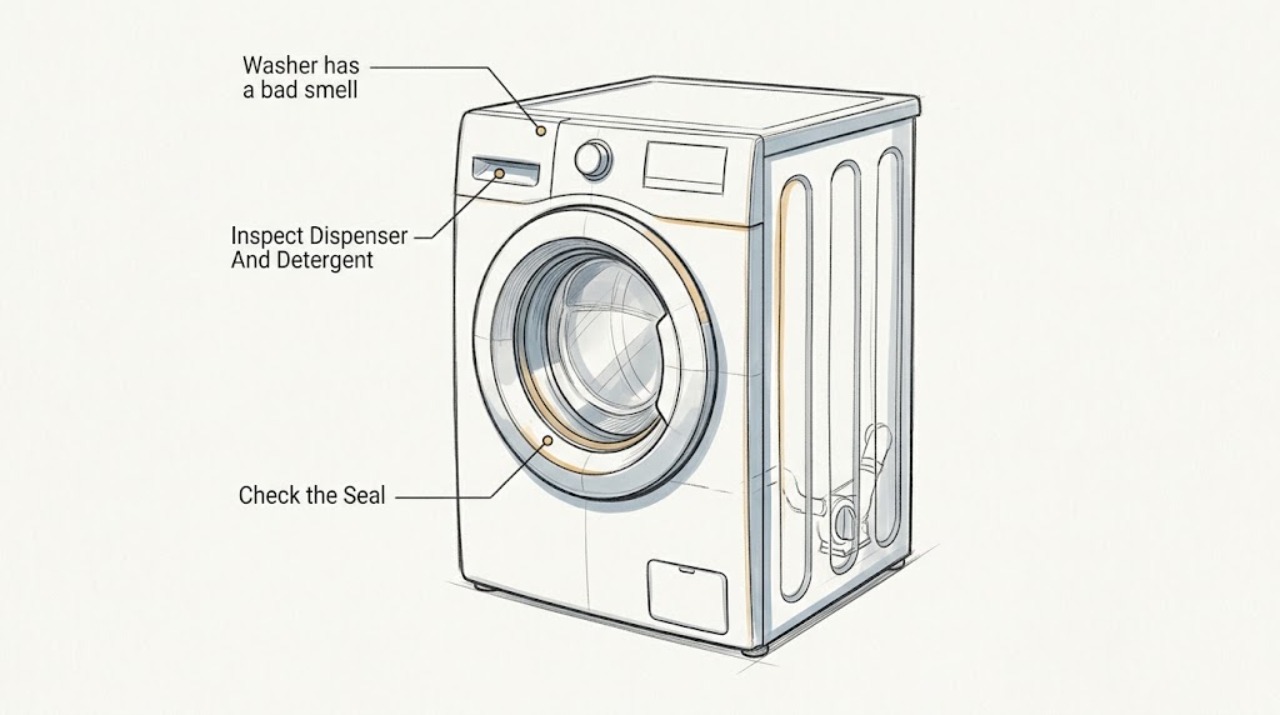

Classify the odor before trying to clean the washer. A musty smell concentrated at the door seal or dispenser usually points to trapped moisture or residue; a sewage-like smell with standing water or gurgling points to the drain path; and a burning, hot-plastic, chemical, or electrical smell is a stop-use condition.

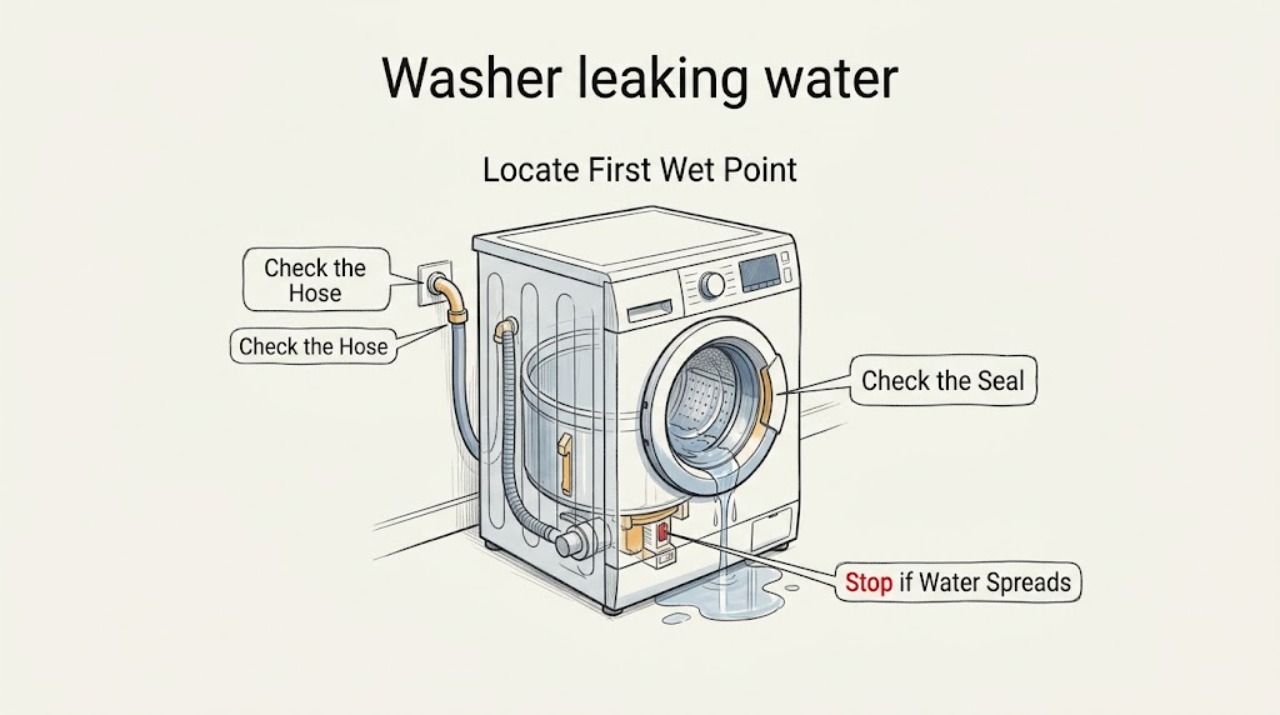

Stop the cycle safely, note the first wet point and when it appears, and keep hands away from water near the plug, outlet, controls, or damaged wiring. Electrolux's leak guidance separates inlet-hose connections, drain hose or standpipe, door seal and glass, and the adaptive dispenser; each needs a different check.

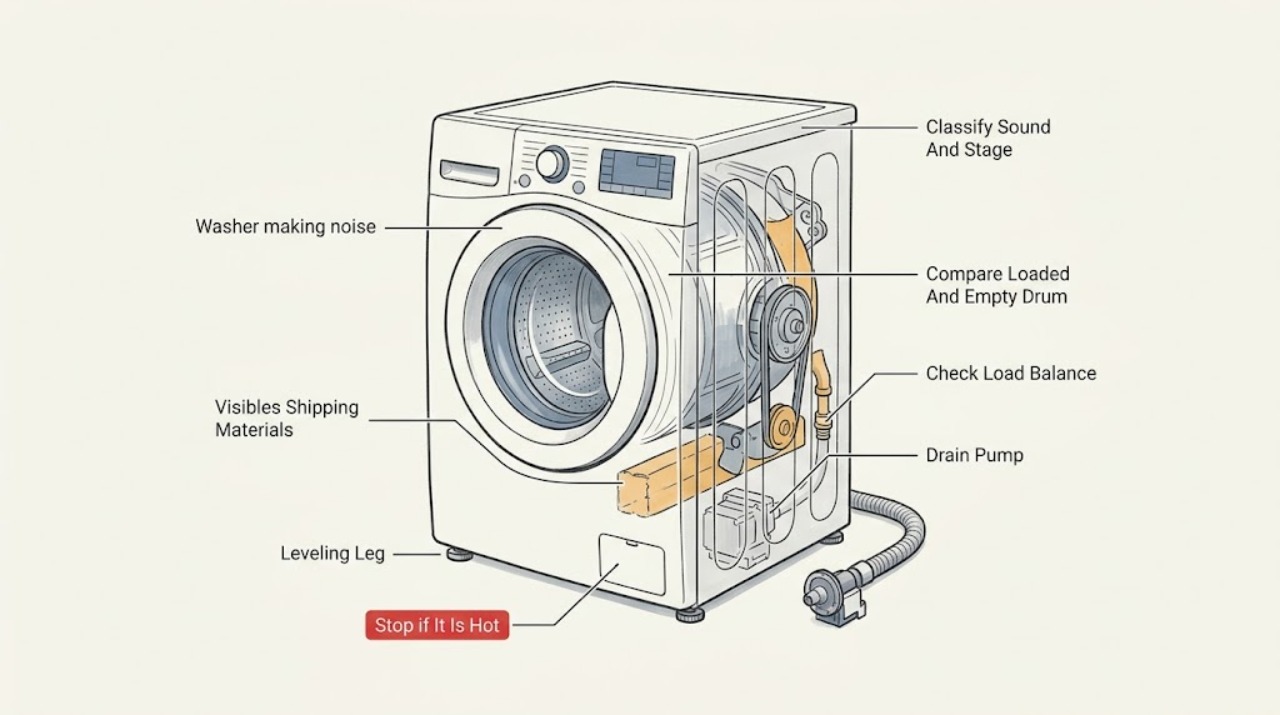

First classify the Electrolux washer noise by sound and cycle stage. Water rushing while filling, gurgling while draining, a low hum from the drain pump, clicks from the door lock or water valve, and a high-pitched spin sound can be normal for the relevant stage.

If an Electrolux washer is not draining, first note whether the cycle is paused, leaves water in the drum, drains slowly, or shows E21. Stop the washer and keep hands away from the tub until all motion ends.

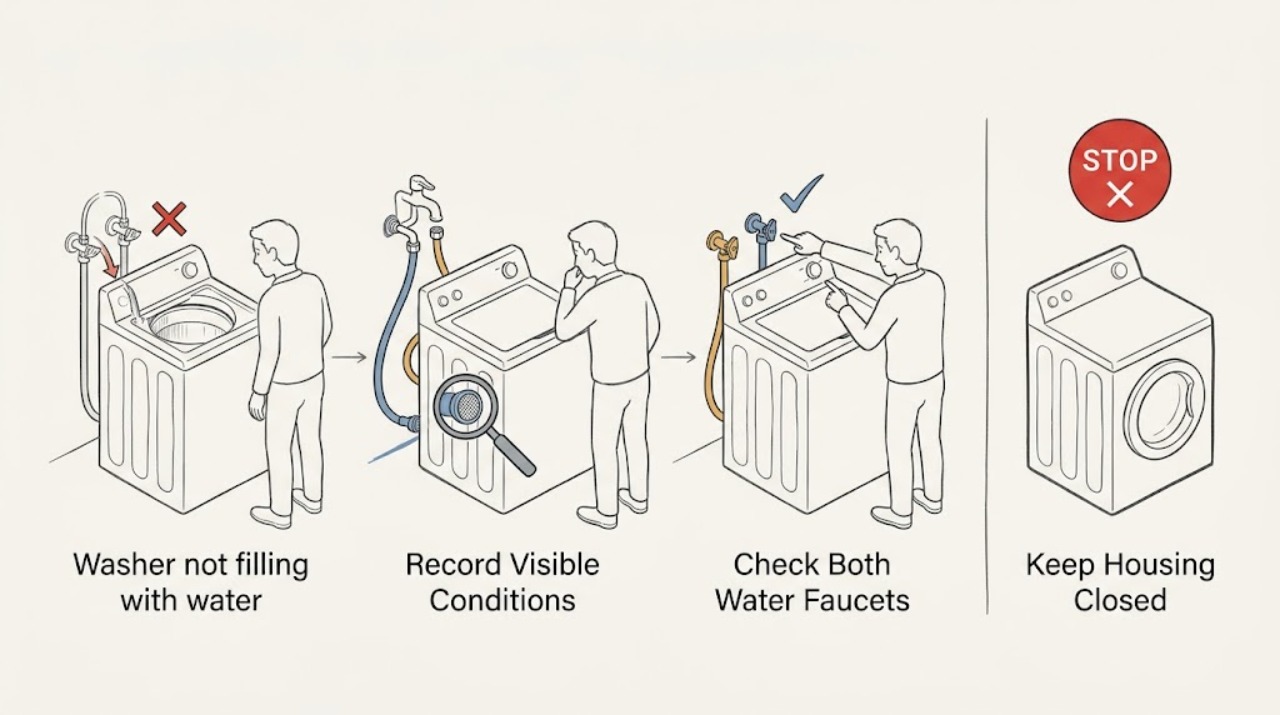

Record the exact Electrolux model, display code, and whether the washer is completely dry, filling slowly, filling and draining at once, or stopping after the door locks. Start with safe exterior checks: both hot and cold household faucets should be on, the supply hoses should be connected to the matching inlets without kinks or cross-threading, and the inlet screens should not be visibly restricted.

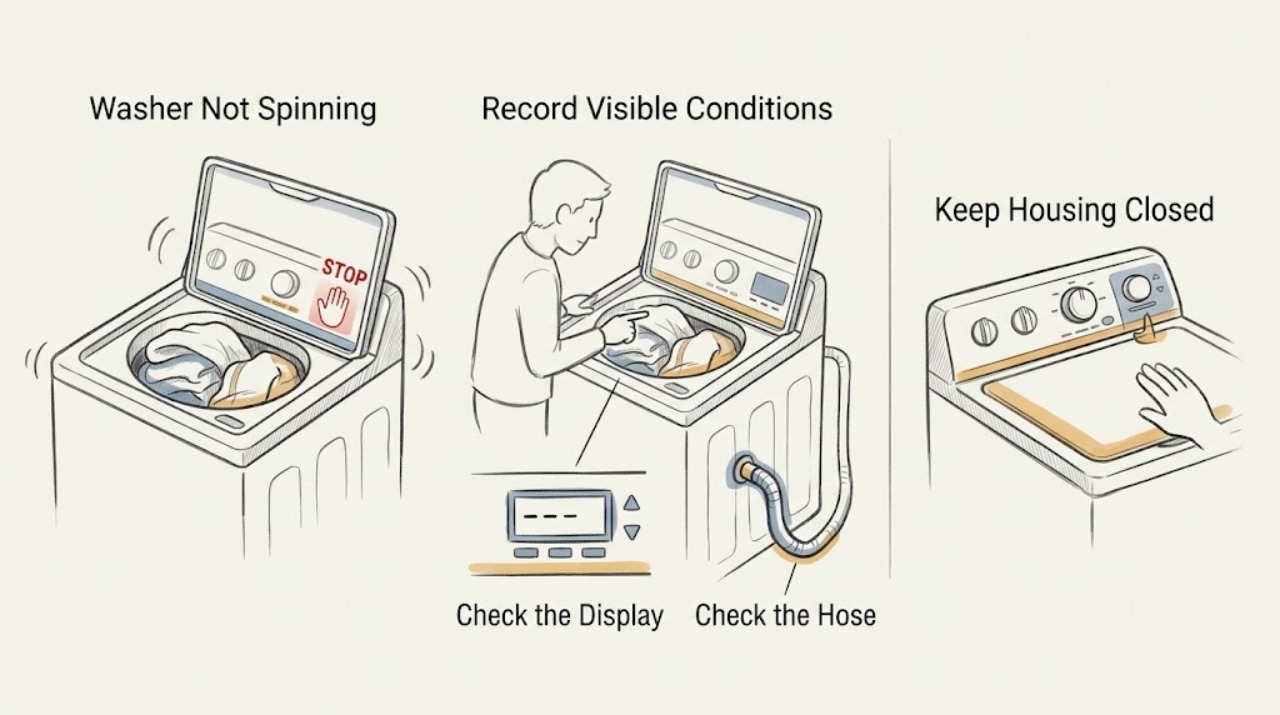

A washer that is not spinning may be waiting between wash and spin, unable to drain, stopped by a lid or door interlock, out of balance, or affected by a setting or power issue. Wait through the model's documented pause, record any code, and check that the lid or door is fully closed.

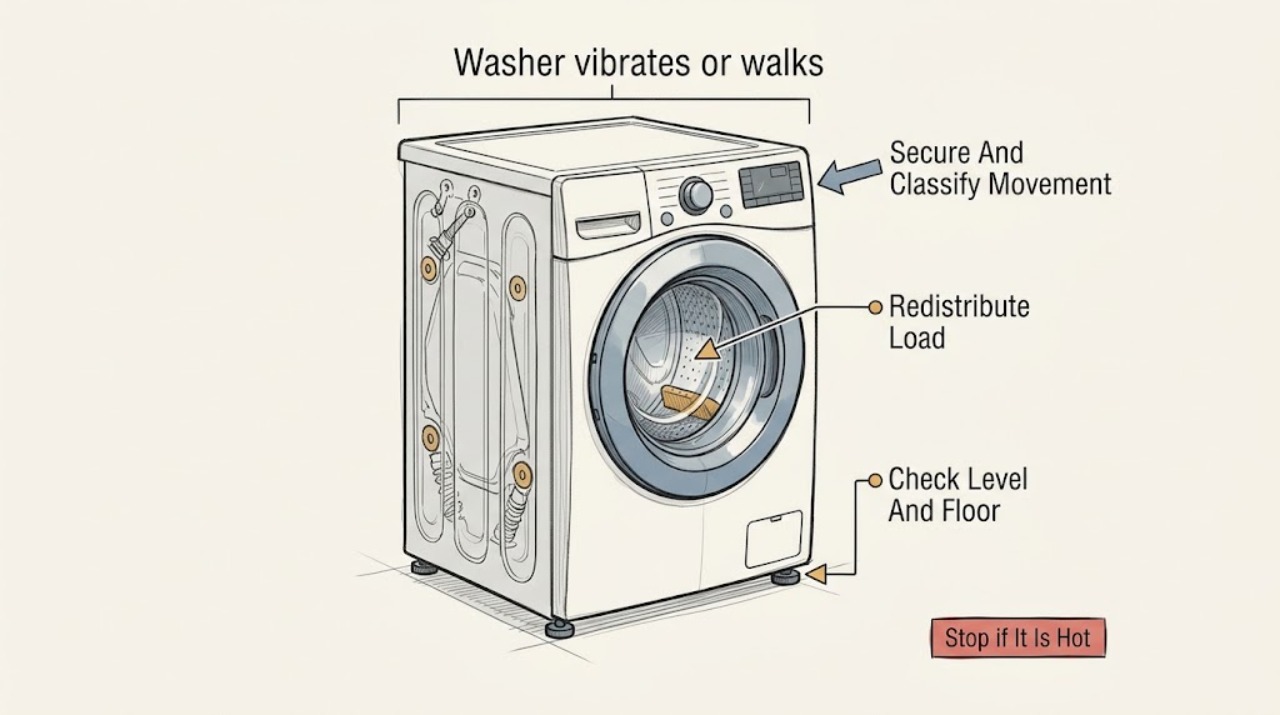

Stop an Electrolux washer that walks toward its hoses, wall, or electrical connections. After all motion stops, first separate an uneven or bulky load from an installation problem: redistribute the load, check that every foot rests firmly on a solid level floor, and for a recently installed front-load machine verify that shipping materials and bolts were removed.

A buzzing or humming sound does not by itself prove a failed motor or pump. Electrolux's laundry washer noise guide lists a water valve as one possible source of humming, a drain pump as a source of low humming, door locking and water valves as sources of clicking, and filling or draining as normal operating events.

Disconnect the Electrolux washer from mains power and let hot water cool before handling a blockage. Check the accessible drain hose for a kink or blockage, then use only the filter or drain access described for the exact model: place a shallow tray under the filter, release standing water gradually, clear visible lint or objects, and refit the filter correctly to prevent leaks.

Start by separating a use issue from a machine fault. Make sure the cycle matches the soil level and load, the drum is not packed so tightly that clothes cannot move, and the detergent is high-efficiency detergent used in the correct compartment and amount.

Do not pull, pry, or bypass the door lock. First record whether the drum is still moving, whether water is visible, and whether the display shows an exact message.

Treat a drain fault as a water-handling problem, not proof of a failed pump. First record the complete displayed code and whether water remains in the drum; Electrolux says different models can use different code variations.
