Frigidaire fgac5044w1 dehumidifier not condensing — used in a temperate rainforest basement to prevent mold growth · ec

Use only checks that match the exact appliance or system and its official guide.

1. Check 1

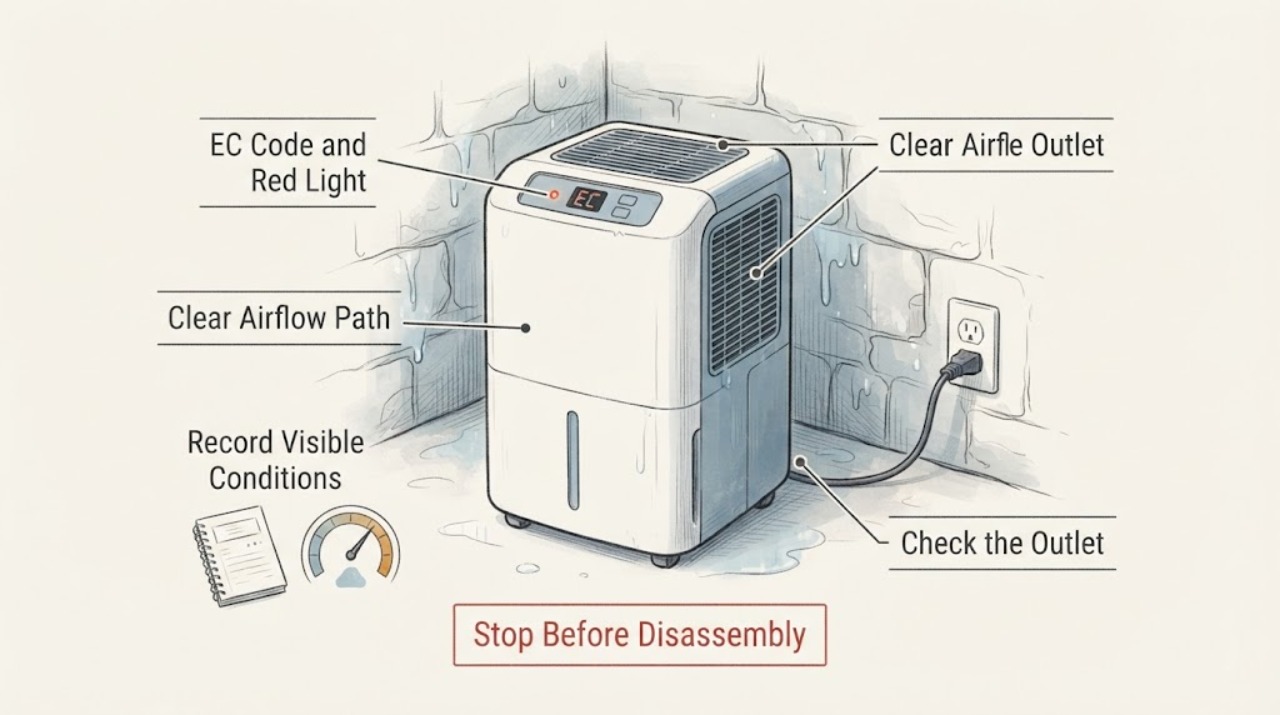

   Confirm the rating label reads FGAC5044W1 and record whether the display shows EC, whether the Quick Glance light is red, and whether the fan runs. Do not infer a compressor or refrigerant fault from the red light alone.

   Expected result: The model matches FGAC5044W1 and EC is displayed, with or without a red Quick Glance light; or the code is actually E4, AS, or ES.

   Next step: Continue only with the EC branch when the display clearly reads EC. For AS or ES, the guide says a sensor has failed; for E4, it says the display and main control boards are not communicating, so use authorized service rather than applying EC checks.

   Why this matters

   Why: The guide groups E4, EC, AS, and ES under the red Quick Glance behavior, but assigns different service implications to the codes. A red light is not a component diagnosis.

2. Check 2

   Check the room and installation from outside the cabinet: use the dehumidifier only when the surrounding temperature is between 41 °F and 89 °F (5–32 °C), keep at least 12 inches around it, and make sure the rear filter/intake and top outlet are not blocked. Keep the unit upright on a level floor.

   Expected result: The basement is below 41 °F or above 89 °F, the intake or outlet is restricted, the unit is in a cramped closet-like space, or the documented conditions are normal and EC remains.

   Next step: Correct the temperature or clearance issue, allow the unit to reach room temperature if needed, and then perform the documented reset once. If conditions are normal and EC remains, move to service rather than changing refrigerant or opening the cabinet.

   Why this matters

   Why: The owner's guide says operation outside the temperature range can greatly reduce performance and that restricted airflow reduces drying. Those conditions can explain poor condensation or prevent normal operation without proving a sealed-system failure.

3. Check 3

   Verify the unit is connected directly to a properly grounded 115 V outlet and that the plug, cord, and receptacle show no visible damage. Do not probe a live outlet or bypass the grounding prong; if supply voltage is uncertain, have a qualified electrician verify it.

   Expected result: The outlet or cord is damaged, the power supply is outside the guide's 115 V ±10% condition, or the supply appears normal but EC remains.

   Next step: Stop using the unit and arrange electrical or appliance service for the first group of observations. If the supply is confirmed normal, continue to the single unplug/reconnect reset.

   Why this matters

   Why: The guide specifically tells the user to check the 115 V ±10% operating condition for EC. A damaged cord, questionable receptacle, or unknown voltage is an electrical safety issue, not evidence of a bad compressor.

4. Check 4

   With the unit switched off, unplug it, wait until it is safe to handle, and reconnect it under the documented normal temperature and power conditions. After restart, observe one supervised run in Dry mode; if the code has cleared, use the humidity control or Continuous mode only as needed for the damp basement.

   Expected result: EC clears and the unit runs, EC returns immediately, or the unit runs without EC but does not remove moisture.

   Next step: Do not repeat resets indefinitely. Contact an authorized Frigidaire service center if EC returns; if the unit runs without EC, first lower the humidity setting or select Continuous mode and keep airflow clear, then escalate persistent no-condensation behavior for model-specific diagnosis.

   Why this matters

   Why: The guide's EC procedure is a condition check followed by a reset, not a claim that resetting repairs a component. If the code returns, the guide directs authorized service. If the code clears but drying is weak, setpoint, airflow, temperature, and room moisture load remain relevant.
