Start here
Quick answer
First identify whether the failed lamp is inside the microwave cavity or under an over-the-range unit, and record the exact model. GE says lamp replacement is model-specific: use the Owner's Manual, and only replace a lamp yourself when that manual provides a consumer procedure. Most countertop interior lamps and the interior lamps of many built-in or over-the-range models require service. If the manual does authorize replacement, disconnect power first and use only the specified lamp type and wattage; never open the microwave cabinet or work near its high-voltage components.
Work through in order
Diagnostic checks
Use only checks that match the exact appliance or system and its official guide.
-
Check 1

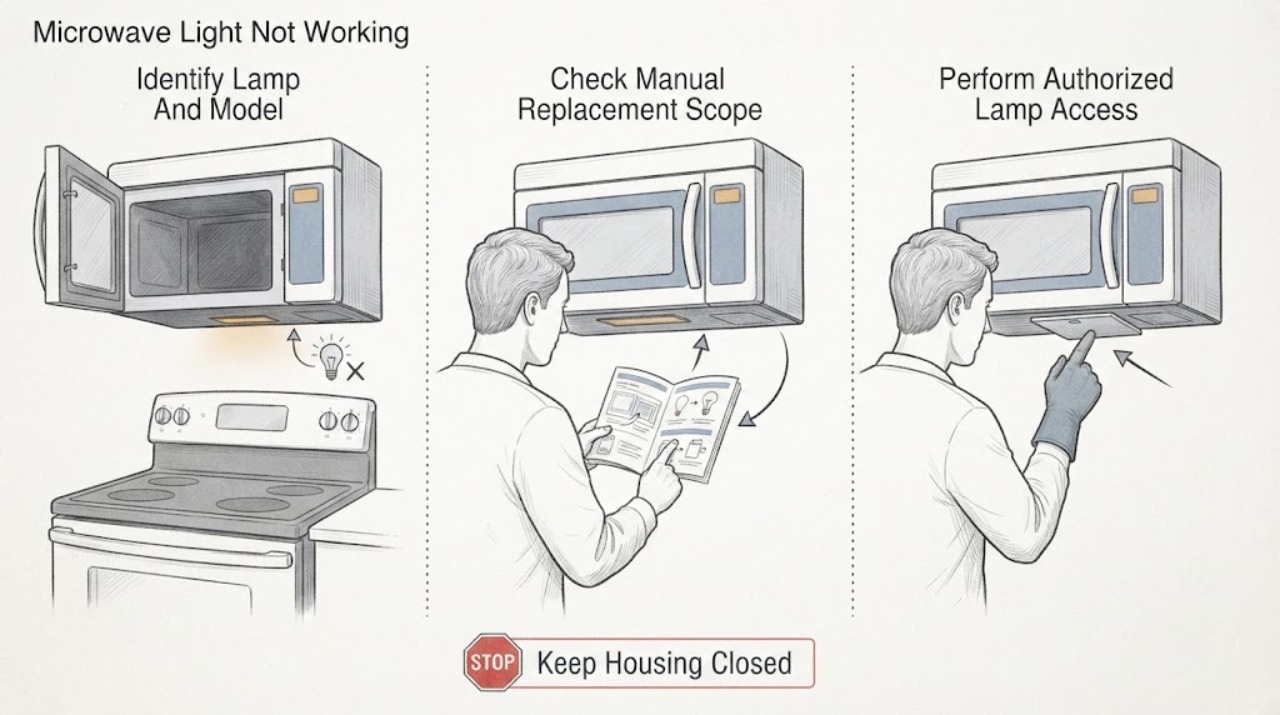

With the microwave idle, open the door and observe the cavity; on an over-the-range unit, separately switch the documented cooktop-light control if the manual identifies one. Record the complete model number and which lamp is dark.
Expected result: The dark lamp is inside the cavity, under an over-the-range unit, or its location cannot be determined; the model number is available or missing.
Next step: Use the exact model manual. If the lamp location or model cannot be identified, stop at service/manual lookup rather than borrowing a procedure from another GE microwave.
Why this matters
Why: GE treats cavity and cooktop lamps as different components, and the replacement boundary depends on the exact model and location.
-
Check 2
Find the lamp or light section in the exact GE Owner's Manual and check whether it explicitly authorizes consumer replacement and identifies an accessible cover.
Expected result: The manual gives a lamp procedure and cover location, or it gives no lamp procedure/does not identify a consumer-accessible cover.
Next step: Follow only the documented procedure in the first case. In the second case, arrange service and do not remove the microwave cabinet.
Why this matters
Why: GE says a missing lamp procedure means the lamp is not consumer replaceable; most countertop interior lamps and some built-in or over-the-range interior lamps require service.
-
Check 3
Only when the exact manual authorizes consumer access, unplug the microwave or disconnect its circuit before opening the named lamp cover. Use the same lamp type and wattage specified by that manual; handle a halogen lamp with clean gloves or a clean cloth.
Expected result: The cover and lamp are accessible exactly as the manual describes, or access requires an outer-case panel, force, improvised tools, or an unidentified bulb.
Next step: Complete only the documented lamp replacement in the first case. In the second case, close the appliance, leave it disconnected, and request service.
Why this matters
Why: GE's user procedure is limited to the documented lamp compartment and model specification. Outer-case access or an uncertain lamp specification exceeds that procedure.
-
Check 4
After a model-authorized replacement and complete reassembly, verify the light only as the manual describes. Do not run repeated tests if the microwave sparks, smells burnt, trips a breaker, stops heating, or has damaged door parts.
Expected result: The lamp works normally, remains dark, or the microwave has an additional unsafe symptom.
Next step: If the lamp remains dark or any unsafe symptom is present, stop using the microwave and arrange GE service; do not open the cabinet or perform high-voltage testing.
Why this matters
Why: A remaining dark lamp may involve the socket or internal circuit, but the symptom alone does not establish a safe user-replaceable component. Additional arcing, odor, power or door symptoms require a broader service assessment.
Use your observations
Decision map
Find the observation that best matches what you see, then follow the next safe action.
-
PATH 01Next step
What you see
The cavity light is dark on a countertop GE microwave.
Do this next
Check the exact manual for an explicit lamp procedure; if it has none, leave the cabinet closed and request service.
Why this path and its safety boundary
Why it matters: GE says most countertop interior lamps are not consumer replaceable because of their location, and disassembly at home is not recommended for safety.
-
PATH 02Next step
What you see
The exact model manual names a consumer-replaceable lamp and an accessible cover.
Do this next
Disconnect power and follow only that procedure with the specified lamp; stop if access differs from the manual.
Why this path and its safety boundary
Why it matters: The model has a bounded user procedure, but the lamp type and wattage remain model-specific.
-
PATH 03Next step
What you see
The cavity light works but the lamp under an over-the-range microwave is dark.
Do this next
Use the exact manual for the lamp type and wattage, disconnect power first, and use service if the cover does not open as documented.
Why this path and its safety boundary
Why it matters: GE documents the cooktop lamp as a separate under-unit lamp; bulb technology and replacement method vary by model.
-
PATH 04Next step
What you see
The manual has no lamp instructions, access requires the outer case, the lamp stays dark after an authorized replacement, or the microwave also arcs, smells burnt, trips power, fails to heat, or has door damage.
Do this next
Stop using the microwave, disconnect power only if it is safe to do so, and arrange qualified GE service. Do not open the cabinet, discharge a capacitor, bypass an interlock, or perform live tests.
Why this path and its safety boundary
Why it matters: GE's public guidance does not make the underlying socket, control or high-voltage cause a safe home diagnosis.
Helpful context
Understand the symptom
Identify which light is actually off
Open the door without starting a cook cycle and note whether the cavity light is absent. On an over-the-range GE microwave, also check whether the separate lamp under the unit still illuminates the cooktop. Write down the complete model number before using a manual; a generic bulb description cannot establish which lamp or procedure applies.
Use the exact Owner's Manual as the decision point
GE directs owners to the Owner's Manual for the specific model. If it contains no lamp-replacement instructions, treat the lamp as service-only. This matters because countertop interiors and some built-in or over-the-range interiors are not designed for a consumer to reach safely.
Only follow a clearly authorized lamp procedure
If the exact manual explicitly gives a consumer lamp procedure, disconnect power before removing an identified lamp cover and follow that manual exactly. Use the same type and wattage specified for the model. Do not infer a bulb rating from another GE microwave, remove the outer cabinet, or expose the microwave's internal electrical parts.
Escalate when access or symptoms are outside the manual
Arrange GE service if the manual has no replacement procedure, there is no intended lamp cover, the lamp remains off after a model-authorized replacement, or the microwave also sparks, smells burnt, trips a breaker, stops heating, or has door damage. Those signs do not identify a lamp socket, control board, magnetron or high-voltage part for home replacement.
When checks do not resolve it
Need a professional?
Request GE service when the exact manual does not authorize lamp replacement, the lamp cover is not accessible as documented, the lamp remains off after the documented replacement, or the microwave has arcing, a burnt smell, repeated power trips, heating failure or door damage. The light symptom alone is not enough to select a socket, control board or high-voltage part.
Common questions
FAQ
Can I replace the light in a GE countertop microwave?
Only if the exact Owner's Manual provides a consumer replacement procedure. GE says most countertop interior lamps are not consumer replaceable; if the manual has no procedure or there is no lamp cover, service is required.
Why is the GE microwave light off but the microwave still runs?
A failed lamp or socket can leave the cavity dark. First distinguish the cavity lamp from the separate cooktop lamp on an over-the-range model, then use the exact model manual. The light symptom does not prove which internal component failed.
What bulb wattage should I buy for a GE microwave?
Do not choose a generic wattage from another model. GE says the exact Owner's Manual supplies the model's lamp type and wattage; use service when the manual does not authorize consumer replacement.
Read the exact guide
Official sources
- Countertop Microwave - Interior Light Not WorkingGE Appliances · Official GE support addresses a countertop cavity light that stopped working and directs service rather than home disassembly; built-in-capable countertop models may have a different service path.
- Over-The-Range Microwave - Interior Lamp ReplacementGE Appliances · Official GE support explains that the Owner's Manual controls whether an over-the-range interior lamp is consumer replaceable, requires power disconnection before maintenance, and directs service when the manual lacks lamp instructions or access is difficult.
- Over-the-Range Microwave - Replacing the Cooktop LightGE Appliances · Official GE support for the separate under-unit cooktop lamp on over-the-range microwaves. Bulb technology, type, wattage and access vary by model; the Owner's Manual controls the exact procedure.
- Countertop Microwave - Interior Lamp ReplacementGE Appliances · Official GE support says the exact Owner's Manual governs, most countertop interior lamps are not consumer replaceable, and a model-authorized procedure requires disconnecting power and using the specified lamp type and wattage.
