Quick answer
For the exact GE GTW335ASN1WW, GE's opened TUB & MOTOR diagram lists callout 300 as a WASHING MACHINE AGITATOR, with WH43X25304 superseded by WH43X30957. The exact GE part page names WH43X30957 as an AGITATOR and shows no accessories; the public model breakdown does not list an individually replaceable spline insert or coupler. That supports asking about the model's listed agitator assembly rather than ordering a universal spline. It does not prove whether the mating drive shaft or another part is worn. If the agitator slips, is visibly loose or cracked, or wears again, stop using the washer, unplug it before inspection, and have GE or a qualified appliance technician verify the agitator and mating drive before any part is selected.
Before you begin
Safety first
- Do not reach into a moving tub, run repeated loads to test a slipping interface, pry the agitator apart, machine or glue an insert, open the cabinet, or use a part from another model. Unplug or switch off the breaker before servicing.
Work through in order
Diagnostic checks
Use only checks that match the exact appliance or system and its official guide.
-
Check 1

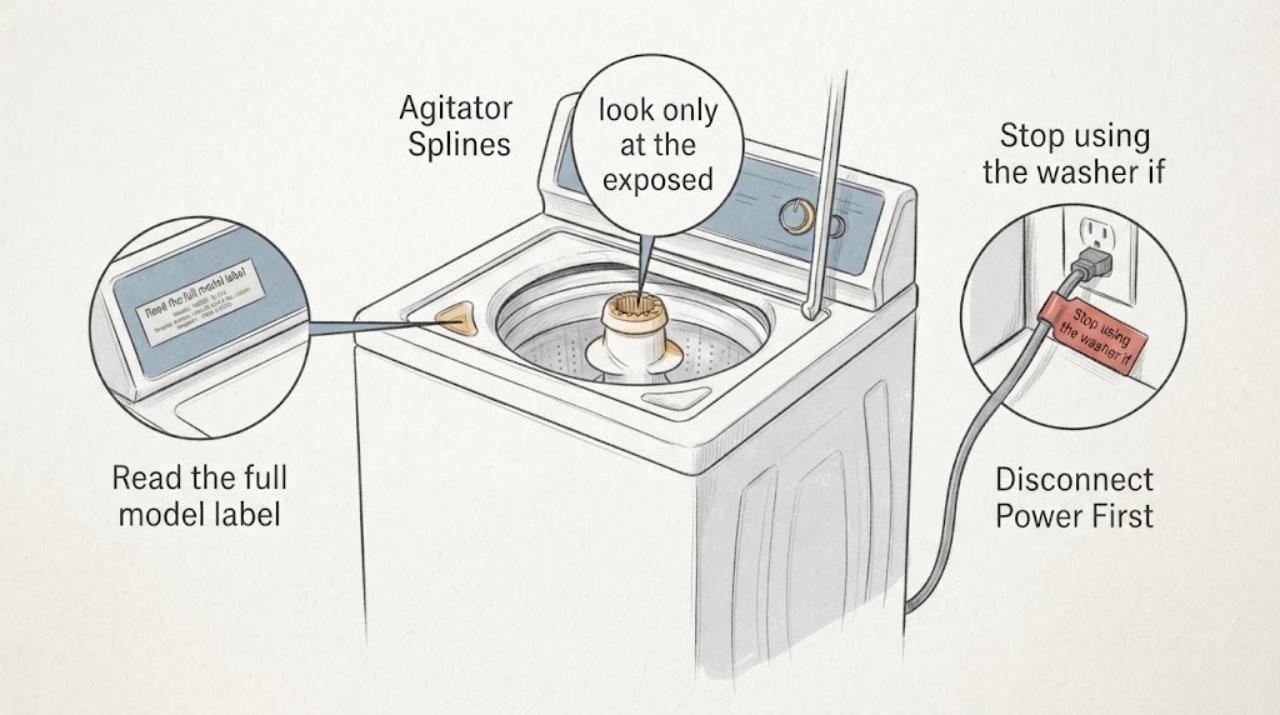

Stop using the washer if the agitator slips, bangs, is visibly cracked or is no longer engaging the load. Wait until the tub and agitator are completely still, then unplug the washer at the accessible plug before any external look; do not reach into a moving tub or start another cycle as a test.
Expected result: The washer is idle and empty, or water/laundry remains inside, the lid is locked, or the agitator is still moving.
Next step: Keep the washer disconnected and tell the technician the water, laundry and lid state. Do not move or partially dismantle the washer to investigate the splines.
Why this matters
Why: An idle empty washer allows a limited external observation. Water, laundry, a locked lid or motion adds an access and entanglement risk and does not authorize forcing the lid or reaching inside.
-
Check 2
Read the full model label and compare it with GE's exact GTW335ASN1WW TUB & MOTOR assembly page; confirm that the suffix is GTW335ASN1WW before using the parts breakdown to frame the service question.
Expected result: The label exactly matches GTW335ASN1WW, has a different suffix, or cannot be read.
Next step: If the identity differs or is unreadable, stop at model/serial identification and obtain the matching GE parts diagram or service documentation. Do not choose a spline or agitator by appearance.
Why this matters
Why: Only the exact suffix is supported by the opened parts diagram. A different or unreadable model identity means the GTW335ASN1WW agitator listing cannot establish fit or a spline-part boundary.
-
Check 3
With power disconnected and the washer empty, look only at the exposed agitator and surrounding basket for a visible crack, obvious displacement or abnormal looseness that can be seen without removing a cap, bolt or panel. Do not pry, pull hard, turn it with a tool or open the cabinet.
Expected result: The agitator is visibly cracked or displaced, appears loose, or looks intact but the reported slipping returns under load.
Next step: Photograph the condition and keep the washer unplugged. Give the technician the exact model, when slipping occurs and whether the agitator was previously replaced; do not improvise an insert repair.
Why this matters
Why: A visible defect or repeat slipping supports a mechanical service request, but an outside view cannot separate an agitator insert problem from wear on the mating drive. An intact exterior does not clear the internal interface.
-
Check 4
Give GE or a qualified appliance technician the exact model and serial information, the prior agitator-replacement history, photos of any visible damage, and whether the basket was empty or loaded when slipping was noticed. Ask for confirmation of the exact-model service part and inspection of the mating drive before ordering anything.
Expected result: The service assessment confirms the published agitator assembly is the affected service unit, identifies mating-drive wear, or cannot confirm the failed interface without internal service access.
Next step: Use only the model-matched part and procedure confirmed by the technician or GE documentation. If internal access or a non-listed insert would be required, leave the repair to qualified service and do not run the washer with a slipping agitator.
Why this matters
Why: The GE listing supports an agitator assembly as the named replacement boundary, while the opened sources do not support a separate spline insert or a definitive transmission diagnosis. The service assessment must resolve the internal interface.
Use your observations
Decision map
Find the observation that best matches what you see, then follow the next safe action.
-
PATH 01Next step
What you see
The label confirms GTW335ASN1WW and GE's TUB & MOTOR diagram is the matching model record.
Do this next
Use that evidence to ask for a model-matched agitator/service assessment. Do not substitute a universal spline or infer fit from another GTW model.
Why this path and its safety boundary
Why it matters: The public exact-model record lists an agitator assembly at callout 300 and does not expose a separate spline insert or coupler listing.
-
PATH 02Next step
What you see
The agitator is cracked, visibly loose or displaced, or the same slipping returns after an earlier agitator replacement.
Do this next
Keep power disconnected, record photos and the operating condition, and arrange model-matched service. Do not keep running loads or attempt an insert retrofit.
Why this path and its safety boundary
Why it matters: The symptom is consistent with a mechanical interface problem, but the opened evidence cannot identify whether the agitator, mating drive or another assembly is worn.
-
PATH 03Next step
What you see
The label has a different suffix or cannot be read clearly.
Do this next
Stop at model/serial identification and obtain the correct GE parts diagram or technician assessment before discussing a replacement unit.
Why this path and its safety boundary
Why it matters: The GTW335ASN1WW parts diagram and WH43X30957 listing cannot establish compatibility for another model identity.
-
PATH 04Next step
What you see
The exterior looks intact, but the agitator still slips or fails to engage when the symptom is observed.
Do this next
Leave the washer unplugged and provide the exact model and symptom history to qualified service for an internal inspection and model-matched part decision.
Why this path and its safety boundary
Why it matters: The failed surface may be hidden at the agitator-to-drive interface; the public sources do not support diagnosing the transmission shaft or selecting a loose spline insert.
Helpful context
Understand the symptom
What GE's exact-model parts breakdown actually supports
The opened GE Appliances Parts record is specifically for GTW335ASN1WW. Its TUB & MOTOR section has 38 results and lists diagram callout 300 as WASHING MACHINE AGITATOR, part WH43X25304, replaced by WH43X30957. Other entries such as the washer hub, clutch, belt and motor are listed separately, but the page does not name a spline insert or agitator coupler as an individual replacement item. GE's WH43X30957 page also labels the part AGITATOR and says no accessories are available. This is evidence about the published service-part boundary; it is not proof that every mechanically imaginable insert repair is impossible.
Do not turn a repeated spline failure into a guessed transmission diagnosis
The Reddit post identifies the washer as GTW335ASN1WW and describes a prior agitator replacement followed by another suspected spline failure. That report establishes the user question and model identity, but it does not verify the failed mating surface or a repair result. A worn agitator interface and a worn drive shaft can produce similar slipping symptoms, so the public evidence here cannot select a shaft, transmission or universal metal insert.
Use a model-matched service decision
If the agitator is slipping or visibly damaged, document the symptom and the full model suffix, then ask GE or a qualified technician to confirm whether the listed agitator assembly is the correct service boundary and whether the mating drive needs inspection. Do not order by a similar GTW model, force the agitator apart, machine an insert, or run repeated loads to see whether a worn interface worsens. GE's owner manual says not to reach into a moving agitator, not to repair or replace parts unless the user instructions specifically recommend it, and to unplug or switch off the breaker before servicing.
When checks do not resolve it
Need a professional?
Arrange GE or qualified appliance service when the agitator slips, is visibly damaged, or has repeated spline wear; call before ordering any part if the mating drive has not been checked. Keep the washer unplugged if it is mechanically slipping or partially damaged.
Safety scope: Do not reach into a moving tub, run repeated loads to test a slipping interface, pry the agitator apart, machine or glue an insert, open the cabinet, or use a part from another model. Unplug or switch off the breaker before servicing.
Have this ready
- Provide GTW335ASN1WW plus the serial number, whether the agitator slips only under load or is loose while idle, any visible crack or displacement, when it was last replaced, and photos taken with power disconnected.
Common questions
FAQ
Can I replace only the metal spline inside the GTW335ASN1WW agitator?
GE's exact-model public parts breakdown does not list a separately replaceable spline insert or coupler; it lists the agitator assembly. That supports an assembly-level service discussion, but it does not prove what a technician might find after internal inspection. Do not scavenge or fit a universal insert by appearance.
Does a second spline failure prove the transmission shaft is worn?
No. The Reddit discussion raises that possibility, but it is not a model-service diagnosis. An agitator interface and its mating drive can produce similar slipping symptoms; the exact model and the failed surfaces must be assessed before naming a transmission or ordering a part.
Can I keep running the washer until the new part arrives?
Do not keep running it if the agitator is slipping, loose or cracked. Unplug the washer and arrange service; repeated loads can change the mating surfaces and do not establish which component is replaceable.
What information should I give GE service?
Give the full GTW335ASN1WW model and serial information, when the slipping occurs, whether the basket was loaded, whether the agitator was previously replaced, and photos of any visible damage. Ask the technician to verify the mating drive before a replacement is selected.
Read the exact guide
Official sources
- Assembly View for TUB & MOTOR | GTW335ASN1WWGE Appliances Parts · Opened the exact GTW335ASN1WW TUB & MOTOR assembly view. The page presents 38 results and is used for the model-specific listing boundary only; it does not expose a separately named spline insert or coupler.
- Model Search | GTW335ASN1WWGE Appliances Parts · Opened the exact GE Appliances Parts model page for GTW335ASN1WW. It identifies the GE 4.2 cu. ft. washer and exposes the exact model's section/assembly diagrams; it does not authorize a part from another suffix.
- Owner's Manual & Installation Instructions (49-3000373 Rev 1)GE Appliances · Opened GE's owner manual PDF. The cover lists the GTW335 family, including GTW335; safety instructions are used for the washer's user-level boundary, not as a parts diagram for an unlisted suffix.
- WH43X30957 | AGITATOR | GE Appliances PartsGE Appliances Parts · Opened the GE part page for the exact agitator replacement named in the GTW335ASN1WW diagram. It calls the part AGITATOR, says to check the model number, and reports no accessories; it is not evidence for a universal insert or another model's fit.
- Washing machine - can you replace splines instead of entire agitator?Reddit / r/appliancerepair · Exact post opened successfully. It anchors the model and symptom narrative; no community comment is used as proof of part compatibility or repair outcome.
