Samsung DW80R5060UG Dishwasher Missing Rinse-Aid Cap — recently purchased house

Use only checks that match the exact appliance or system and its official guide.

1. Check 1

   Read and photograph the complete rating label before ordering anything, including the DW80R5060UG base, the /AA suffix if present, the serial, and market markings; compare the label with the door and control-panel appearance.

   Expected result: The label confirms DW80R5060UG/AA, confirms a different suffix or market, or shows only a partial series number.

   Next step: Use the complete label for the model-and-market parts lookup. If the label cannot be read or the appliance is not the assigned model, stop the part search rather than inferring compatibility from the home's purchase paperwork.

   Why this matters

   Why: Samsung's warranty page identifies DW80R5060UG/AA as a complete U.S. model, and the specification sheet identifies DW80R5060UG as the black-stainless color model. A partial or different label means a cap or dispenser lookup for the base series is not sufficient.

2. Check 2

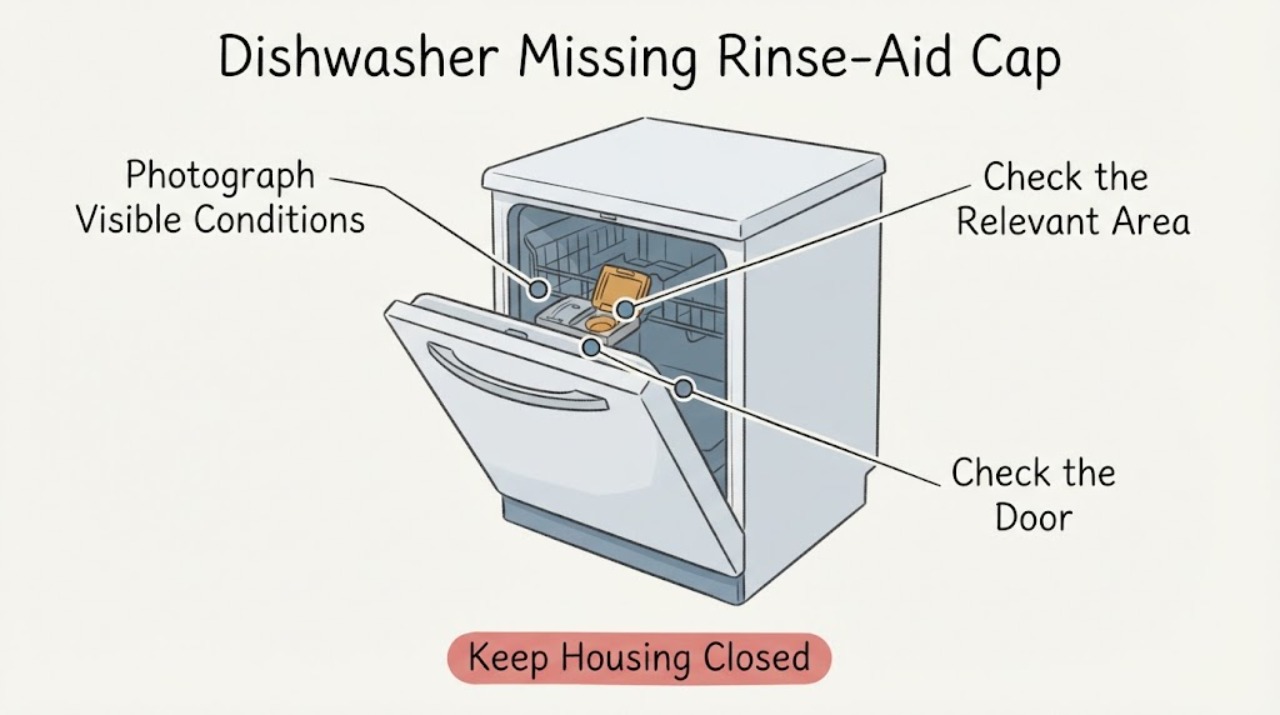

   Stop any cycle, open the door normally, and inspect the rinse-aid area without touching or opening a chemical container during operation; photograph the reservoir, cap, viewing window, and surrounding dispenser face.

   Expected result: A cap is seated and turns, a cap is open but present, the viewing window is present, or the cap, hinge, or seat is visibly absent or broken.

   Next step: If the cap is present, close it as the guide shows and do not force it. If it is absent or broken, keep the dishwasher off until the reservoir can be closed or the dispenser is assessed; do not improvise a plug or tape seal.

   Why this matters

   Why: Samsung's DW80R5060 instructions describe a capped rinse-aid reservoir with a viewing window and a separate close step. A cap that is open or has a visible turning surface may be normal; an absent or broken cap is a physical-part question, not a drain or wash-code diagnosis.

3. Check 3

   Compare the reservoir opening with Samsung's DW80R5060-family guidance: identify the rinse-aid compartment by its level or viewing window and do not confuse it with the detergent dispenser cap or another circular feature on the inner door.

   Expected result: The opening has the clear level window and cap seat described by Samsung, or the opening has no matching cap seat or window and is damaged or unfamiliar.

   Next step: For a matching reservoir, use only liquid rinse aid and stay below the full indicator. For an unmatched or damaged opening, do not add product and request exact-model identification before any repair.

   Why this matters

   Why: A matching window and cap seat support a normal rinse-aid reservoir, while an unfamiliar or damaged opening requires the exact manual or service view. The guide does not authorize treating the detergent compartment as the rinse-aid reservoir.

4. Check 4

   Check only the accessible reservoir and door surface for spilled rinse aid, wetness, cracks, or residue; wipe exterior residue with a damp cloth while keeping liquid away from controls and wiring, and do not remove the inner door panel.

   Expected result: The cap closes without leaking, the reservoir or door is cracked or wet, or the cap cannot stay closed or the reservoir leaks.

   Next step: Do not run the machine with a cracked, leaking, or unsecured reservoir. Keep the door panel closed and arrange a model-specific parts lookup or qualified service assessment.

   Why this matters

   Why: A cap that closes and leaves the reservoir intact is different from a broken dispenser that can release rinse aid during a cycle. A leak or exposed dispenser area is a stop condition, not evidence that the whole dishwasher or a drain component has failed.

5. Check 5

   Check the official model-and-market parts lookup using the full label and ask whether the listing is for a cap alone or the complete rinse-aid dispenser; do not rely on a generic listing that names only DW80R5060 or a neighboring DW80 series.

   Expected result: The lookup explicitly lists DW80R5060UG/AA and identifies the same cap or reservoir design, lists only a different suffix, or offers only a complete dispenser without exact cap confirmation.

   Next step: Order nothing until the full suffix and part identity are confirmed by Samsung or an authorized service or parts channel. If only a complete assembly is confirmed, have a qualified provider determine whether replacement is appropriate; do not remove the door panel yourself.

   Why this matters

   Why: A base-series match is not the same as a full-suffix fit. The opened Samsung consumer pages establish the cap's function but do not establish a cap-only part number for this exact suffix, so a complete-dispenser listing or a different market requires additional confirmation.

6. Check 6

   If the cap is present and intact, fill only when the dishwasher is stopped and only with liquid rinse aid, staying below the full indicator; do not add detergent, powdered rinse aid, water, or a substitute cap to test the dispenser.

   Expected result: The cap closes and the viewing window or level indicator behaves normally, or liquid escapes, the cap will not close, or the wrong product was previously added.

   Next step: If the cap closes normally, leave the reservoir at the indicated level and monitor drying. If it leaks, will not close, or received the wrong product, stop using the dispenser and arrange exact-model service; do not flush or disassemble the reservoir without the model guide.

   Why this matters

   Why: Samsung states that this family uses liquid rinse aid, that powdered rinse aid can clog the reservoir opening, that the reservoir should not be overfilled, and that detergent must not go in the rinse-aid reservoir. A closure or product mismatch is a dispenser-use issue, not proof of a control-board fault.
