Sub-Zero 611 Refrigerator Not Cooling — inherited refrigerator in a condo · ec50 ec06 ec20

Use only checks that match the exact appliance or system and its official guide.

1. Check 1

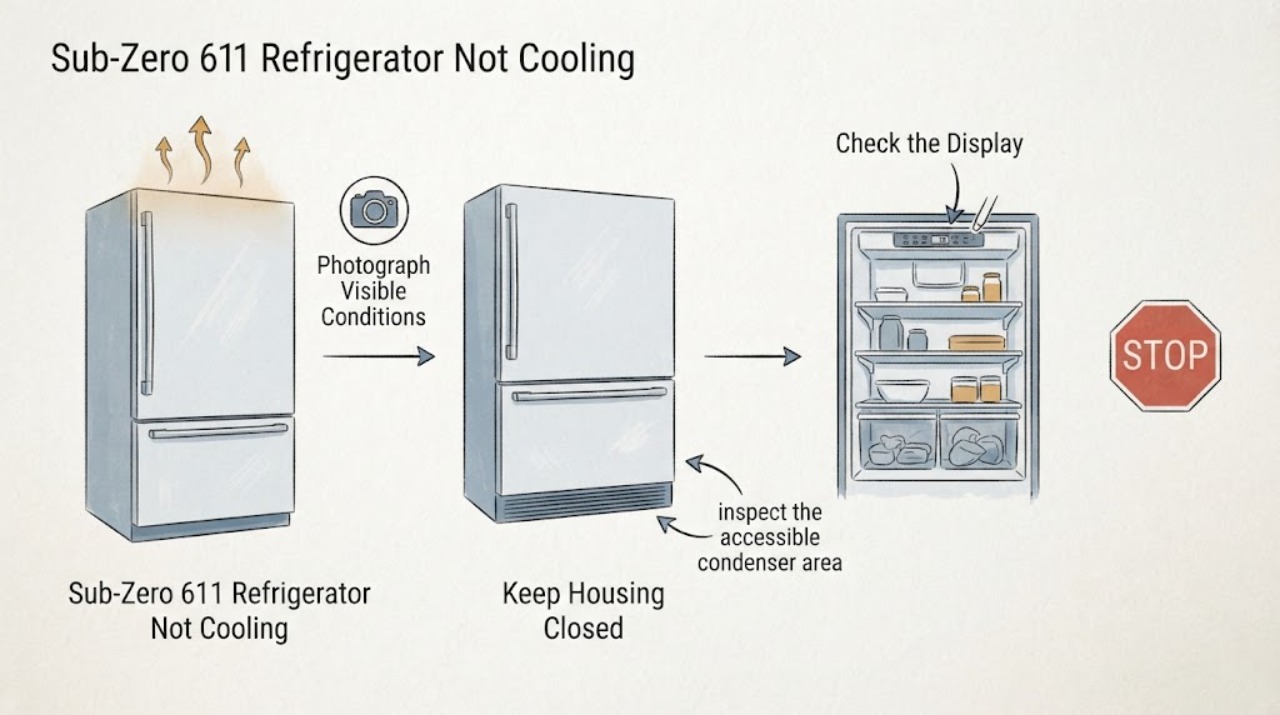

   Before changing settings, photograph the display and record whether EC50, EC06, EC20, or more than one code is present. From a brief door opening, record the refrigerator and freezer compartment temperatures with an appliance thermometer if one is available, and note whether either compartment is actually warm.

   Expected result: The display shows a setpoint but the measured food-area temperature is high, the temperatures are near normal, or no independent measurement is available.

   Next step: Keep the doors closed as much as practical. Use the temperature result with the code-specific branches below; do not repeatedly cycle power or change several settings at once.

   Why this matters

   Why: Sub-Zero's temperature setting page describes the control value and a 24-hour settling period; it does not make the setpoint an actual food temperature. A code paired with genuinely warm food needs a different escalation decision from a code with near-normal temperatures.

2. Check 2

   If EC50 is present and both compartments are near their expected temperatures, inspect the accessible condenser area with the refrigerator off. Remove dust with the method Sub-Zero specifies, taking care not to bend the aluminum fins and not to use chemical cleaner or degreaser.

   Expected result: The condenser is visibly dirty, or it is clean and the refrigerator still has EC50 or poor cooling.

   Next step: After cleaning, allow the unit to operate without repeated door opening. If temperatures do not return to setpoint within 24 hours, the code returns, or the temperatures are actually high, stop user troubleshooting and arrange Factory Certified Service.

   Why this matters

   Why: Sub-Zero identifies condenser cleaning as the customer check for a 600 Series EC50 when temperatures are near normal. Cleaning does not establish a compressor failure, and it does not address the sensor or defrost meanings of EC06 and EC20.

3. Check 3

   For EC50, check whether the 611 has the door-ajar alarm key described by Sub-Zero. If it does, hold that key for 15 seconds only after the condenser check and only when temperatures are near normal; do not use the clear-code procedure as a test for a warm refrigerator.

   Expected result: The alarm key is present and the code clears, the unit predates the key arrangement, or EC50 returns after clearing.

   Next step: If the key is absent, the code returns, or measured temperatures are high, leave the appliance operating only as needed to protect food and contact Factory Certified Service; do not improvise a reset sequence.

   Why this matters

   Why: Sub-Zero says units before serial 1810000 may not have the door-ajar alarm key. Clearing a near-normal EC50 is an observation of the code state, not proof that the underlying cooling condition is repaired.

4. Check 4

   When EC06 is displayed, record the refrigerator temperature and the time the code appeared, then stop at the external observation. Do not remove panels, disconnect the evaporator thermistor, or measure its circuit.

   Expected result: EC06 remains present, recurs, or appears with a refrigerator compartment that is warming.

   Next step: Keep the doors closed, protect food according to the temperature guidance, and arrange Factory Certified Service with the model, serial, code and temperature observations.

   Why this matters

   Why: Sub-Zero defines EC06/Code 06 as an open or shorted refrigerator evaporator thermistor reading, or an inconsistent temperature reading for at least the stated detection period, and explicitly provides no customer troubleshooting.

5. Check 5

   When EC20 is displayed, record whether the freezer is warming and whether frost or a defrost symptom is visible without removing covers. Do not force a defrost cycle, perform electrical measurements, or access the freezer defrost terminator.

   Expected result: EC20 remains present or recurs, the freezer temperature is rising, or the code appears together with EC50/EC06.

   Next step: Keep the appliance closed and arrange Factory Certified Service. Give the technician the full code combination and the measured refrigerator/freezer temperatures rather than assuming the compressor is the failed part.

   Why this matters

   Why: Sub-Zero defines EC20/Code 20 as a defrost underheat condition with no voltage feedback and identifies the freezer defrost terminator issue; its page provides no customer troubleshooting. Multiple codes make a professional diagnosis more important, not less.

6. Check 6

   Apply the food-safety thresholds before deciding whether to keep stored food. Keep the refrigerator and freezer doors closed while deciding, and use an ice or dry-ice container only as Sub-Zero describes for a temporary loss of cooling; do not use it to justify continued operation of a faulting appliance.

   Expected result: Refrigerated food has reached above 42°F (5°C), or frozen food has risen above 20°F (-6°C), or the temperature is unknown after a prolonged warm condition.

   Next step: Discard or handle food according to that guidance, keep the appliance closed and safe, and request service for the code condition. Do not open the sealed system or attempt an electrical repair in the condo.

   Why this matters

   Why: Sub-Zero says refrigerator product that warms to 42°F should not be kept and freezer food above 20°F should not be refrozen. A warm inherited appliance is therefore a food-safety decision as well as a repair decision.
