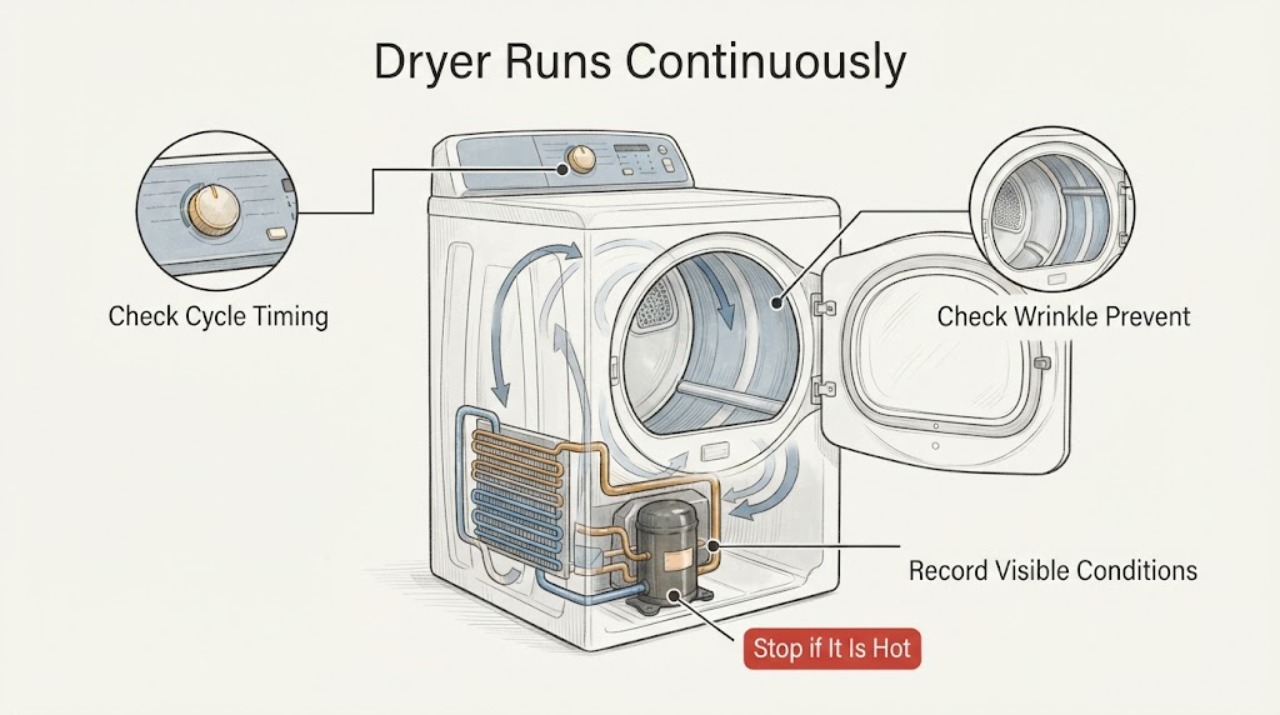

Whirlpool Dryer Runs Continuously: Verify Cycle vs Heat-Pump Compressor

Use only checks that match the exact appliance or system and its official guide.

1. Check 1

   Read the complete model number from the dryer label and use Whirlpool’s model-specific literature route. Record whether the manual identifies a HybridCare/heat-pump platform, a vented dryer, or another configuration, and note the exact displayed cycle and options.

   Expected result: The manual confirms HybridCare heat-pump operation, identifies a conventional/other dryer, or the platform remains unresolved.

   Next step: Continue with the matching platform branch. If the model or platform cannot be confirmed, describe the behavior as “dryer does not stop” and request model-matched support rather than diagnosing a compressor.

   Why this matters

   Why: Only a confirmed HybridCare model supports interpreting a compressor hum as part of the dryer’s refrigeration system. The title symptom alone does not establish compressor operation.

2. Check 2

   Check the selected cycle and options for Wrinkle Shield, Wrinkle Prevent or Wrinkle Guard. Observe whether the dryer turns off and back on briefly at intervals after the normal drying cycle instead of running continuously.

   Expected result: The dryer pauses and periodically tumbles after the cycle, or it runs continuously without the documented off/on pattern.

   Next step: If the documented modifier explains the behavior, use the model controls to end it or allow it to finish. If there is no modifier or the dryer never pauses, continue to cycle and airflow checks and arrange service if persistent.

   Why this matters

   Why: Whirlpool says periodic 15–30 second restarts every 5–10 minutes can be normal Wrinkle Prevent behavior and may continue for the setting’s allowed duration. Continuous operation outside that pattern is a different symptom.

3. Check 3

   Identify whether the dryer is on an Automatic Cycle or Timed Dry and whether the displayed time is changing. Do not add wet items while diagnosing the run time.

   Expected result: An Automatic Cycle is extending as moisture remains, a Timed Dry cycle is still within its selected time, or the cycle remains active beyond its expected end.

   Next step: Allow one correctly loaded, model-appropriate cycle to complete. If it does not stop at the documented end or repeatedly extends without a load explanation, stop repeated runs and request service.

   Why this matters

   Why: Whirlpool says Automatic Cycles adjust remaining time from sensed moisture and shut off at selected dryness, while Timed Dry runs for the selected amount of time. Added wet clothing can extend an Automatic Cycle.

4. Check 4

   For a confirmed HybridCare model, compare the observed sound and timing with the manual’s compressor hum, fan and drain descriptions. Do not remove covers or use sound alone to identify a compressor fault.

   Expected result: The sound is the documented hum/fan/gurgle during a cycle, or it continues abnormally after the cycle and outside any documented modifier.

   Next step: If the sound matches the documented cycle behavior, monitor the cycle and drying result. If it persists after the end, is accompanied by overheating, poor drying or abnormal noise, stop and arrange model-specific service.

   Why this matters

   Why: Whirlpool documents compressor hum and fans that run continually throughout the HybridCare cycle as normal platform behavior. That does not prove that a compressor should run after the cycle or that a persistent abnormal sound is normal.

5. Check 5

   If the dryer is vented or shows AF/Check Vent, clean the lint screen and inspect the visible vent run to the wall and exterior hood for lint, crushing, kinks or blockage. Do not dismantle the dryer or heat-pump unit.

   Expected result: The lint screen or visible vent path is restricted, the Check Vent indication remains, or airflow appears clear and the dryer still will not end.

   Next step: Correct only the accessible lint/vent condition and follow the installation guidance. If the warning remains or the dryer continues beyond the documented cycle, have the full vent path or appliance inspected.

   Why this matters

   Why: Whirlpool says restricted airflow can keep the dryer operating and extend dry time. A clear visible path does not diagnose the motor, moisture system or compressor.

6. Check 6

   If the dryer never stops, restarts outside Wrinkle Prevent, overheats, smells burnt, shows a persistent warning, or makes an abnormal mechanical/electrical sound, stop the cycle and keep the appliance off. Record the model, platform, cycle, modifier and observed timing for service.

   Expected result: The behavior resolves after a documented modifier or external airflow correction, or it persists/returns or presents a safety hazard.

   Next step: Arrange qualified Whirlpool service. Do not open panels, test live circuits, bypass controls or order a compressor based on the assigned topic phrase.

   Why this matters

   Why: Resolution after a documented external condition does not prove an internal component is healthy. A persistent continuous-run fault is outside the published owner checks and does not identify a compressor by itself.
