Whirlpool wmh32519cs microwave light not turning off — over the range microwave

Use only checks that match the exact appliance or system and its official guide.

1. Check 1

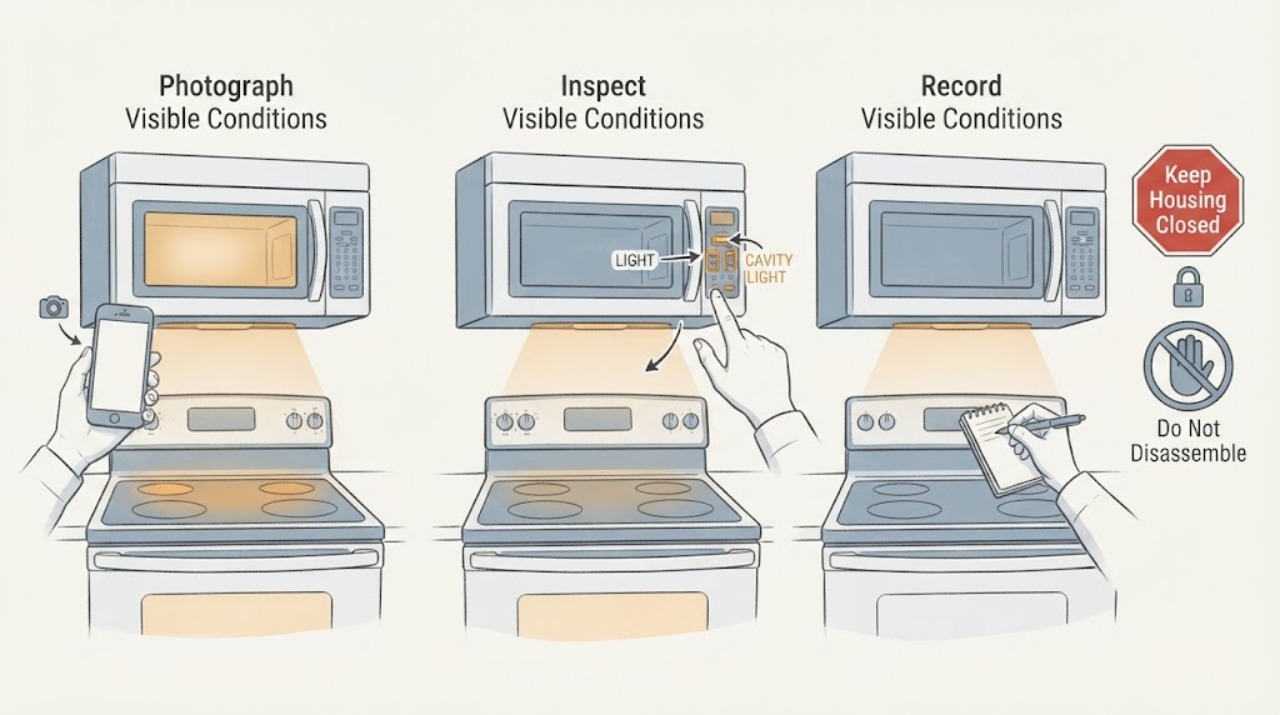

   With the microwave idle, identify the lamp location without touching wiring: look from outside at the cooktop/vent lamp under the unit, then open the door normally only to see whether the cavity light changes as expected. Photograph the display and record the complete model and serial label behind the door; do not remove the outer cover.

   Expected result: Only the underside lamp remains on, only the cavity lamp remains on, both lamps behave abnormally, or the model suffix/market cannot be read.

   Next step: Use the matching Whirlpool manual for the identified suffix. If the cavity lamp remains on with the door closed, the door behaves abnormally, or the identity is uncertain, leave internal diagnosis to qualified service.

   Stop if: Stop if the door is bent or damaged, the latch does not close normally, the lamp area is hot or damaged, or any cabinet panel would need to be removed.

   Why this matters

   Why: The two lamps are different user-visible functions, and Whirlpool's manual system is keyed to the complete model. An incomplete identity cannot support a part or internal-control conclusion.

2. Check 2

   From outside the appliance, press the Light pad only as the matching manual describes and observe the lamp and display through its available settings. Do not hold a door switch, reach inside, or probe the keypad or lamp socket.

   Expected result: The light changes High/Medium/Low and turns Off, the display or keypad responds but the lamp stays on, or the Light pad gives no response.

   Next step: If the lamp turns off, monitor it for an unintended return. If the keypad responds but the lamp stays on, or the controls are dead, move to the timer check and then arrange service rather than ordering a generic control part.

   Stop if: Stop immediately for sparks, smoke, burning odor, a hot or damaged control area, or any need to remove the control panel.

   Why this matters

   Why: Whirlpool documents multiple brightness steps and an Off setting for cooktop/vent lighting. A response from the keypad without a corresponding lamp change separates the command indication from the lamp/control fault, but does not identify a board or socket.

3. Check 3

   Check the Light Timer only through the exact WMH32519CS manual's documented user menu. Whirlpool's general guidance places the Light Timer under Options or Setup on certain models; record whether an On/Off schedule is active and cancel it if the manual provides that option.

   Expected result: The lamp follows a scheduled On/Off time, the timer is not available or already canceled, or the lamp stays on outside the schedule.

   Next step: If canceling the documented timer restores Off, keep the model-specific setting. If the lamp remains on with no timer, save a photo of the display and arrange service; do not apply a menu sequence from a different Whirlpool model.

   Stop if: Do not repeatedly enter undocumented service, factory-reset, or diagnostic menus, and stop if the display or keypad becomes hot, cracked, wet, or erratic.

   Why this matters

   Why: A scheduled light is a settings condition, while a lamp that remains on after the timer is canceled is not explained by scheduling alone. The Light Timer is not present or operated identically on every Whirlpool microwave.

4. Check 4

   If the underside bulb was recently changed, leave the microwave disconnected from power before any user-permitted bulb inspection and compare the bulb type only with the label on the underside or the exact manual. Do not open the cavity-light area, alter the socket, or install an LED or other bulb type merely because it fits.

   Expected result: The bulb type is documented and correct, the bulb was replaced with an unknown or different type, the lamp flickers or changes brightness unexpectedly, or the socket/cover shows heat or damage.

   Next step: Use only the exact manual-approved bulb and restore the cover before reconnecting power. If the symptom persists with the correct type, or there is heat, discoloration, a loose socket, or damaged wiring, keep the unit isolated when safe and request service.

   Stop if: Never perform a live test, touch exposed conductors, remove the cabinet, or work near the microwave high-voltage section.

   Why this matters

   Why: Whirlpool says an incorrect replacement bulb can cause a cooktop light to stay on, fail to change brightness, or flicker. A correct bulb with the same symptom leaves the control path unresolved; visible heat or socket damage is an electrical stop condition.

5. Check 5

   Observe the cavity light and door behavior during normal, empty operation without starting a cooking cycle: note whether the cavity light is on with the door closed, whether it changes only when the door opens, and whether the microwave starts or stops normally. Do not repeatedly cycle the door or hold the latch switches.

   Expected result: The cavity light follows normal door operation, stays on with the door closed, the door is damaged or does not latch normally, or heating/stop behavior is also abnormal.

   Next step: If the cavity light or microwave operation is abnormal, stop using the microwave and arrange qualified service. Never operate with the door open or bypass an interlock to see whether the lamp changes.

   Stop if: Stop immediately for heating with the door open, a broken latch, smoke, sparks, burning odor, or a door that cannot close correctly.

   Why this matters

   Why: Whirlpool notes that a faulty door switch can affect the interior light and that door-switch work may require control-panel disassembly. A light-only underside fault is not proof of a door switch, but a cavity-light or heating/interlock anomaly raises a safety concern.

6. Check 6

   Check only the accessible plug, outlet, and breaker/fuse status from outside. If power was interrupted, take a photo of the lamp behavior before any reset; do not repeatedly reset a breaker or continue using the unit if protection opens again.

   Expected result: The outlet or cord is damaged or hot, the breaker/fuse trips again, the microwave is otherwise normal but the lamp remains on, or the supply is stable.

   Next step: If the cord/outlet is damaged or the breaker trips again, disconnect or isolate power only when safe and arrange qualified appliance or electrical service. Otherwise use the documented timer/light checks and provide the full model and photos to Whirlpool service.

   Stop if: Do not use an extension cord as a workaround, open direct wiring, or continue operation after a repeated trip, smoke, arcing, or burning smell.

   Why this matters

   Why: A supply fault can affect controls and lighting, but stable power with a persistent lamp symptom does not identify a replaceable component. Repeated protective-device operation is an electrical no-operate boundary.
