Kenmore Dryer Repair Guides

For the Kenmore dryer label shown as 110.C62692102, preserve the label exactly in your notes but try the Kenmore manual search without punctuation, as Kenmore instructs: 110C62692102. If the official search still returns no exact record, do not order a kit listed only for a similar 110 model and do not assume a Whirlpool equivalent fits.

If a brand-new Kenmore 110.61652021 powers its controls but never turns the drum or produces heat, make only one safe front-panel observation, then use the seller or authorized warranty route before opening the cabinet. Confirm that the door closes and latches, the selected cycle actually starts, and the accessible plug and breaker show no obvious problem.

For Kenmore 110.6192311, treat a reported broken motor pulley as a lead, not a confirmed diagnosis. The exact-model report says the belt broke and the owner had previously repaired the heating element, limit switches, thermostat, belt, guides, and drum seal; a reply identified the photographed motor-end piece as a pulley and also mentioned the belt.

For the Kenmore Series 600 model 110.66132411, do not treat F3E2 as proof that a moisture sensor, thermistor, or control board needs replacement. The exact-model public case reports this display as a moisture-sensor error, while the opened Kenmore manual portal does not expose a model-specific F3 E2 definition.

For Kenmore 110.67832794, a dryer that is quiet empty but vibrates loudly with a full load should not be diagnosed by replacing another roller, idler pulley, or belt from the symptom alone. First stop for cabinet movement, scraping, grinding, burning odor, smoke, heat, or electrical signs.

For a Kenmore Elite 110.92836100 gas dryer that tumbles but does not heat, do not decide from age or a guessed part alone. First confirm the full model, gas type, cycle, and whether there is any gas odor, smoke, burning smell, abnormal heat, or restricted airflow; stop immediately for those hazards.

On Kenmore 110.96274100, a drum that stops at the end of drying while the timer dial keeps turning is not automatically a bad timer. First identify whether the dial is merely settling by inertia, whether the dryer is in a cool-down or wrinkle-prevention stage, and whether the drum, heat, and timer truly remain active.

Do not substitute a GE thermal cutoff or high-limit thermostat in the Kenmore Elite 110.66992501 just because the part name, shape, terminal count, or temperature marking looks similar. The opened Kenmore manual finder tells owners to retrieve the manual with the full model number, while GE's official part page says to check the model number to confirm compatibility; neither is an interchangeability approval for this Kenmore model.

On a Kenmore 11067522600 dryer, a timer that seems not to advance can be normal in an automatic cycle, but Air Dry should not be treated as a heated cycle. If Air Dry is visibly producing heat, the timer is stalled, or the dryer is getting unusually hot, stop using it and remove the load.

Do not assume a startup screech means a specific bearing, belt, or pulley. First record the complete Kenmore model from the rating plate and whether the sound occurs only during the first seconds after a long idle or continues as the drum turns.

If the Kenmore 417 98042701 drum turns but the load stays cold, first confirm the selected cycle is meant to heat and identify whether this exact dryer is gas or electric from its model label and matching manual. For an electric dryer, a single tripped fuse or breaker can leave the drum turning while the heater is off.

Stop using the Kenmore 90 Series dryer until you know whether it is still heating. “90 Series” is a family label, not a complete model number, and Kenmore's official manual service requires the full model number before its manual or part guidance can be matched.

Stop the Kenmore dryer and identify the odor before running another heated cycle. A new unit may have model-specific first-use instructions, but a burning-rubber, melting-plastic, electrical, or fuel-gas odor is not a normal maintenance signal.

Stop using the Kenmore dryer until the lint screen and its seating area are confirmed safe. A screen that is torn, holed, warped, loose, missing, or unable to seat correctly can let lint bypass the intended filter path, so do not tape, glue, or run the dryer without it.

A Kenmore dryer door that will not close is usually blocked by clothing or lint, out of alignment at the hinge, or unable to engage its catch and strike. Unload the drum, inspect the door opening and seal, and check that the hinge side sits evenly and the latch meets the strike without force.

First separate a dryer that has no power from one that powers on but cannot turn the drum. Check that the door is fully closed, the selected cycle is valid, and the Start control is pressed as the Kenmore manual describes.

Stop the Kenmore dryer and remove the load. With power disconnected, inspect the front and rear drum seams for a coin, screw, zipper, or other small object, then gently turn the empty drum by hand.

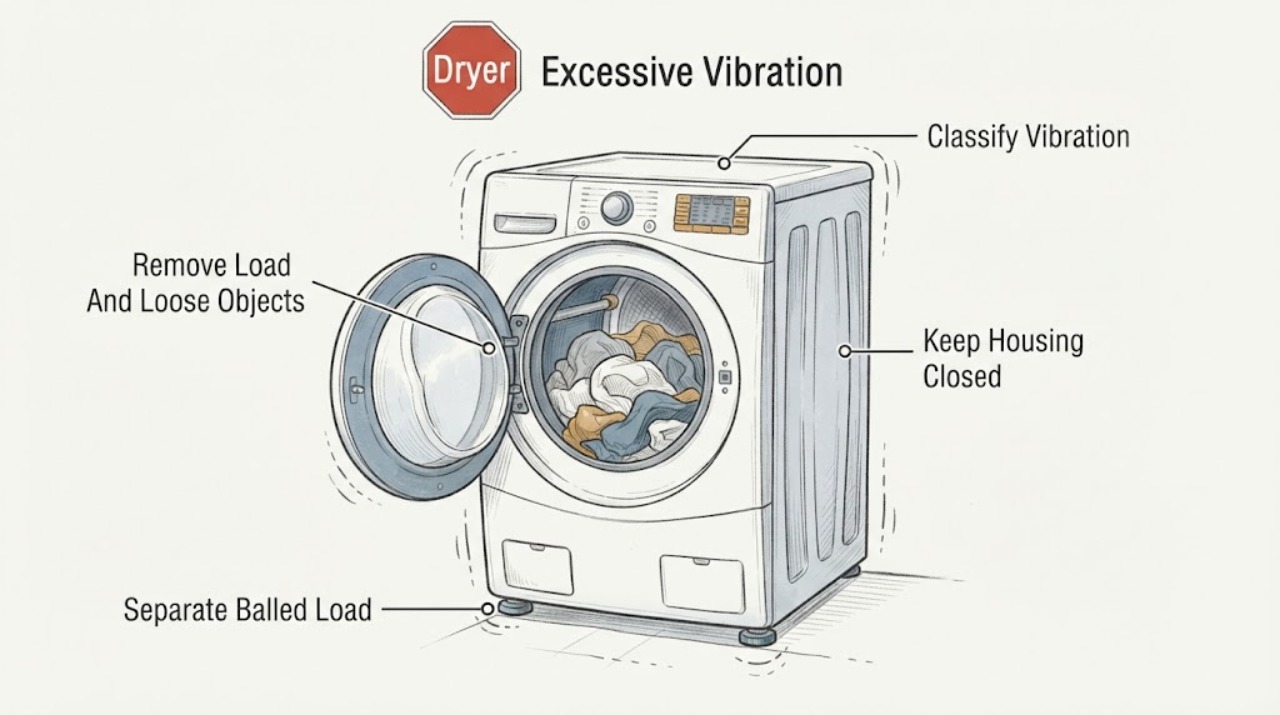

Stop the dryer and first separate a normal brief thump from a machine that rocks or walks. Empty loose objects, untangle a balled load, and check that the dryer sits on a solid floor with every leveling foot firmly contacting it.

Treat a gas-like smell from a Kenmore gas dryer as a possible leak or unburned gas until a qualified person confirms otherwise. Do not start or relight the dryer, operate switches or electronics, use a phone inside, smoke, or create any flame.

A burning smell from a Kenmore dryer is not a normal operating smell unless the dryer is new and the exact model instructions describe a brief first-use odor. Stop the cycle, remove the load, let the dryer cool, and do not keep testing it if the odor is sharp, electrical, rubber-like, accompanied by smoke, sparking, a hot cord or outlet, visible scorching, or a gas odor.

First decide whether the drum is only tumbling intermittently after a cycle or is rotating continuously. Some Kenmore dryers have Wrinkle Guard; the official Kenmore page for model 26-60222 says that option tumbles clothes for up to 40 minutes after the dry cycle, but the assigned dryer has no model number, so its controls and time limit cannot be assumed.

A Kenmore dryer making noise should be classified by sound and timing before any part is ordered. Stop the cycle and check the load, drum edges, lint-screen area, cabinet clearances, and level footing using only safe external or visible checks.

A Kenmore dryer that leaves clothes damp usually has a cycle or load problem, restricted airflow, or a heat or supply fault. First compare the result with a correctly sized load on a heat cycle, then clean and reseat the lint filter and check the complete exhaust route from the outside without opening the cabinet.

Confirm first that this is a gas Kenmore dryer that runs or starts but has no heat, not an electric dryer or a no-start problem. Select a heat-producing dry cycle rather than air-only or cool-down, check that the external gas shutoff is open and that the dryer has its required grounded power, and make sure the front and exhaust path are not obstructed.

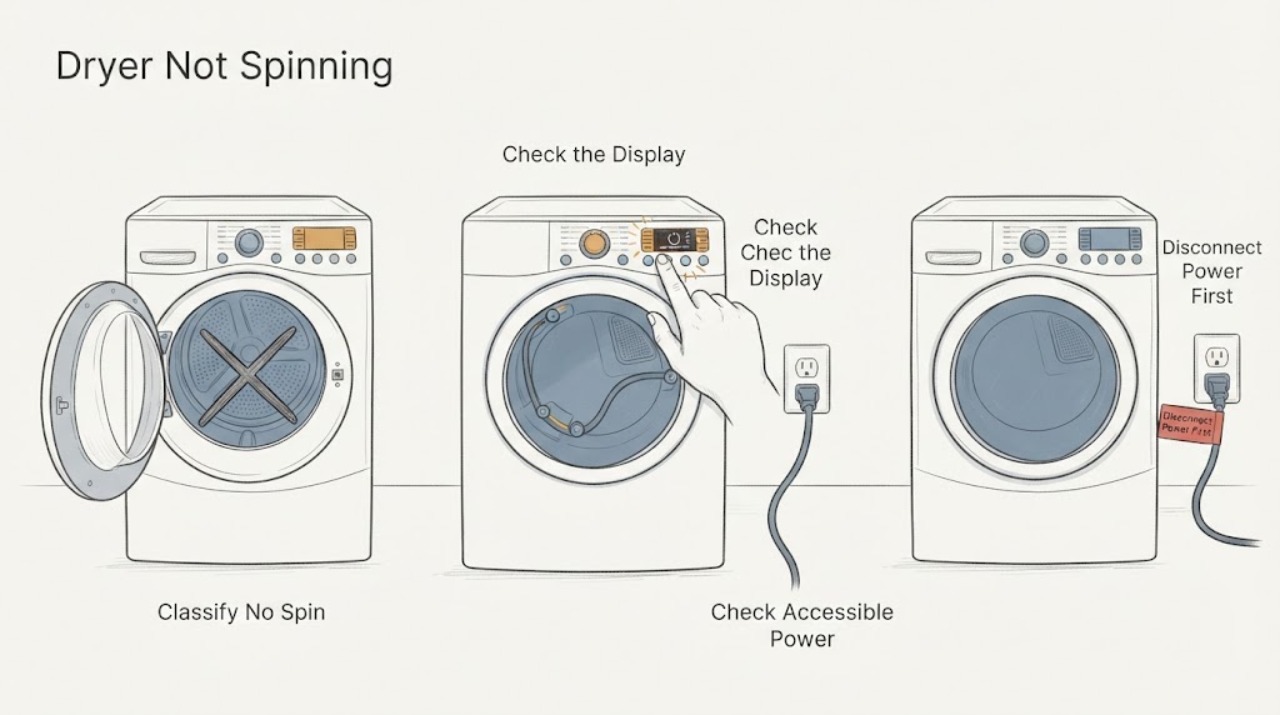

If a Kenmore dryer runs but the drum does not spin, first stop the cycle and check the door, selected controls, and accessible power without opening the cabinet. A dryer may appear not to spin when the cycle was not started, the door is not fully closed, or a model-specific pause or control condition is active.

When a Kenmore dryer will not start, first confirm that the outlet and breaker are safe and supplying power, the controls are not locked, a valid cycle is selected, the door is fully latched, and Start is pressed as that model requires. Clean the lint screen and check the visible vent connection, but do not open the cabinet or bypass a safety device.

If a Kenmore dryer keeps running, press Power or Cancel once. If the drum, heat, or blower continues, disconnect power immediately by unplugging it only when the plug and receptacle are cool, dry, undamaged, and safely reachable; otherwise switch off the dryer circuit at the breaker.

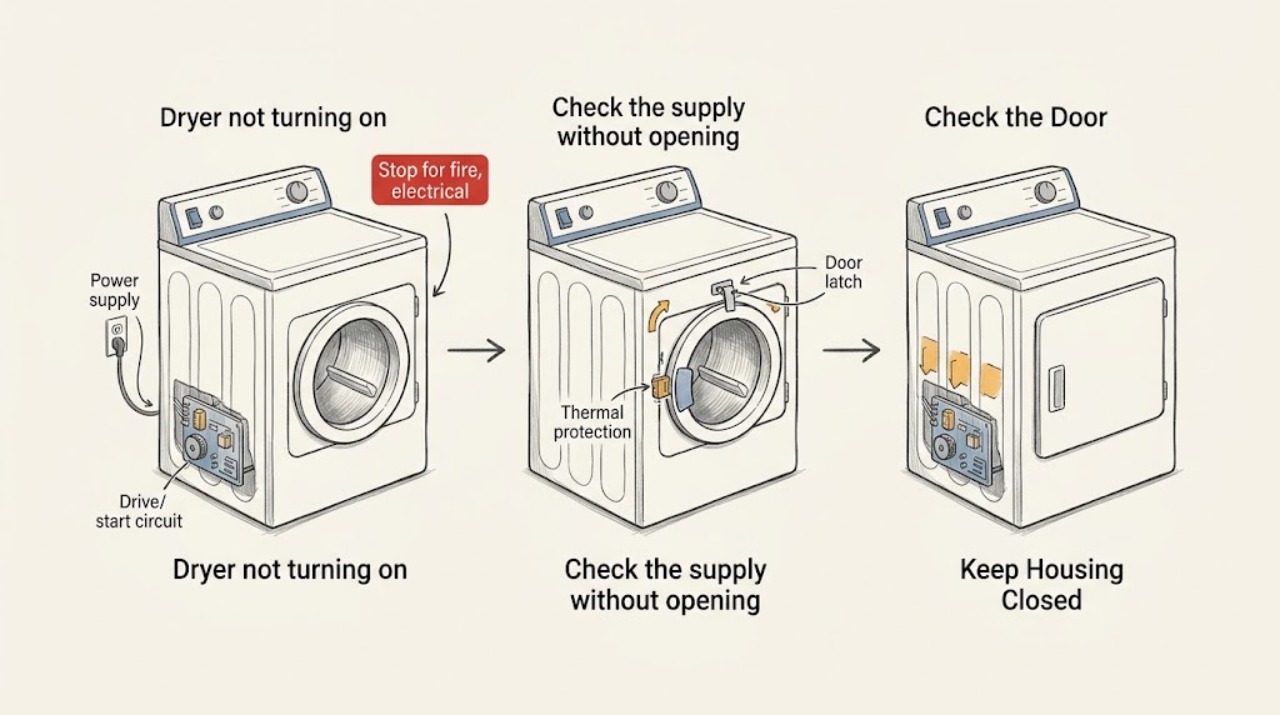

When a Kenmore dryer will not turn on, begin with safe external checks: look for a damaged cord, confirm the dryer is connected directly as specified by its model instructions, check whether the breaker or fuse has opened, verify the door is fully latched, select a valid cycle, and use the model-specific Start or Push to Start control correctly. Do not keep resetting a breaker, bypass the door switch, open the cabinet, or test live wiring.

Treat “Kenmore dryer not working” as four different symptoms: a blank panel, a powered panel that will not start, a running dryer whose drum does not turn, or a turning dryer that does not heat. With the dryer and floor dry, check the accessible plug, breaker or fuse, door closure, cycle controls, Start control, lint filter, and visible exhaust path using the exact model manual.

Stop the Kenmore dryer immediately, turn it off, and do not run another test cycle while the cabinet, clothes, control area, or exhaust feels unusually hot or smells scorched. Once it is cool and safe to approach, check the lint screen, the accessible exhaust path, the outside vent flap, the area behind the dryer, and the exact Kenmore use-and-care manual.

Stop the Kenmore dryer immediately if you see a spark, arc, flash, or glowing electrical connection. Do not run another cycle to reproduce it.

A Kenmore dryer squeak is a sound symptom, not proof that a belt, roller, pulley, bearing, or motor has failed. First stop if there is a burning smell, smoke, metal-on-metal scraping, damaged cord, or a drum that does not turn normally.

If a Kenmore dryer trips its breaker, stop using it and do not keep resetting the breaker or running test cycles. Unplug the dryer immediately when the plug and receptacle are cool, dry, undamaged, and safely reachable; otherwise switch off the dryer circuit without removing the panel cover.

Stop using the Kenmore dryer until you identify whether the damage is coming from the lint-screen housing or vent grille, the drum edge, or the load itself. With the dryer off, unplugged, and cool, photograph the damaged fabric and inspect the inside of the drum, lint-screen opening, and visible grille for a sharp edge, bent or loose section, missing piece, residue, or a gap.

Treat a loud squeal that began suddenly and is paired with towels taking longer to dry as a stop-and-document problem, not as proof that one roller, belt, or motor should be replaced. First verify the complete Kenmore model from the rating label and whether the dryer is gas or electric: the supplied M11808210 entry is shorter than Kenmore's current manual-portal guidance for model numbers, so it may be incomplete or misrecorded.
